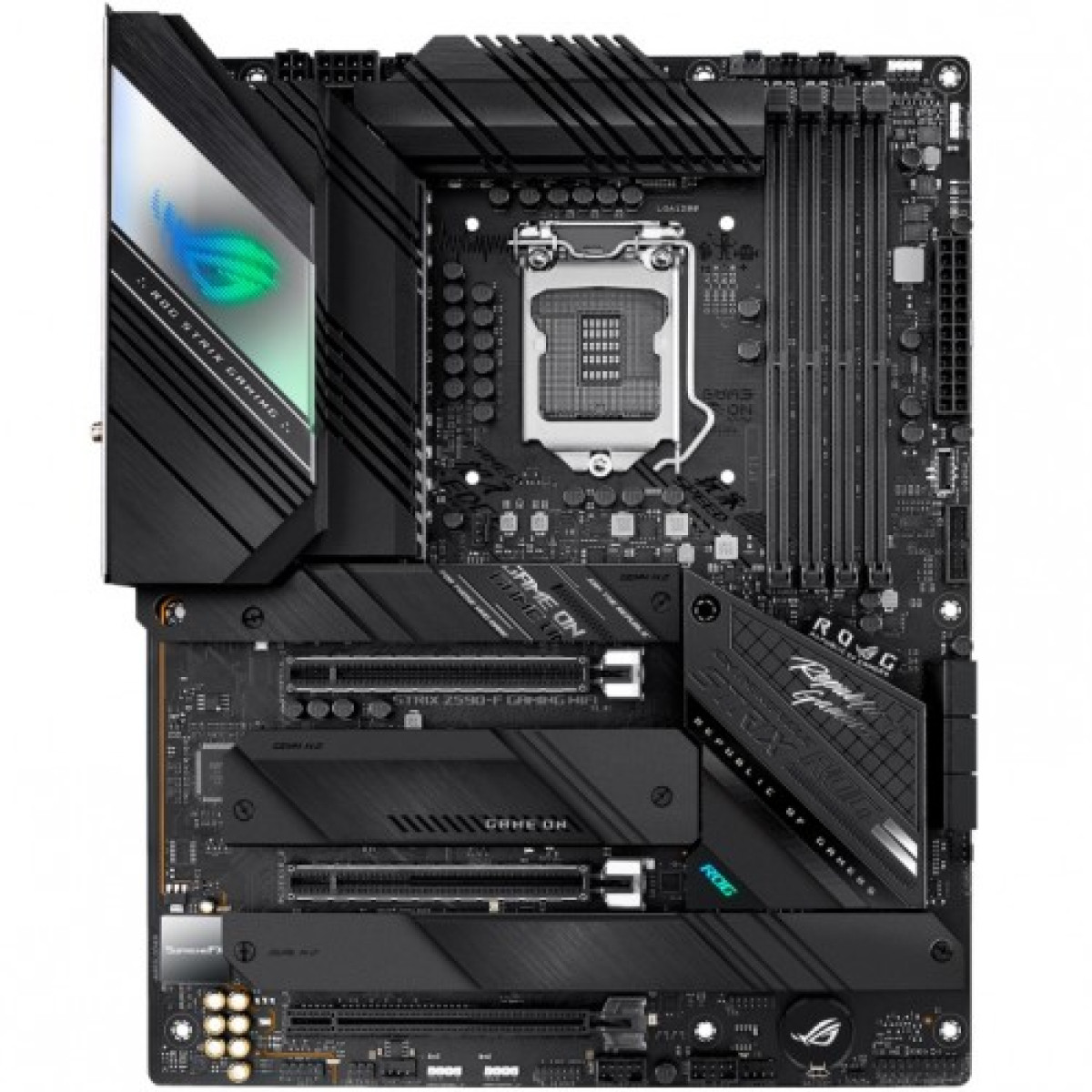

Asus ROG Strix Z590-F Gaming Wi-Fi Intel 10th and 11th Gen ATX Motherboard
- Brand: Asus
- Product Code: ROG Strix Z590-F Gaming WiFi
- Availability: Out of Stock
- Updated:
৳31,500
Out of Stock
Specification
| BASIC INFORMATION | |
| Form Factor | ATX: 30.5cm x 24.4cm |
|---|---|
| Supported CPU | Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
| Chipset | Intel Z590 Chipset |
| Audio | SupremeFX Shielding Technology - ALC4080 + Savitech SV3H712 AMP - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium Japanese audio capacitors - Audio cover |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Expansion Slots | |
| M.2 Socket | M.2_1 slot (Key M), type 2242/ 2260/ 2280/ 22110 - Only Intel 11th Core processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs M.2_2 slot (Key M), type 2242/ 2260/ 2280/ 22110 - Intel 11th processors support PCIe 4.0 x4 mode - Intel 10th processors support PCIe 3.0 x4 mode Intel Z590 Chipset M.2_3 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 3.0 x4 mode) M.2_4 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 3.0 x4 & SATA modes) |
| PCI | 2 x PCIe 4.0/ 3.0 x16 (x16, x8/ x4) + 1 x PCIe 3.0 x16 (max. x4) Intel 11th & 10th Gen Processors 2 x PCIe 4.0/ 3.0 x16 slot(s) - Intel 11th support PCIe 4.0 x16 or x8/ x4 mode(s) - Intel 10th processors support PCIe 3.0 x16 or x8/ x4 mode(s) Intel Z590 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) |
| Graphics Specifications | |
| Graphics | 1 x DisplayPort 1.4 1 x HDMI 2.0 |
| Memory Specifications | |
| Maximum Size | 128GB |
| Slots | 4 x DIMM |
| Supported Memory | 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC) /4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II |
| Type | 4DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1 x DisplayPort 1.4 |
| HDMI | 1 x HDMI 2.0 |
| LAN Port (s) | 1 x Intel 2.5Gb Ethernet Wireless & Bluetooth "Intel Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/ b/ g/ n/ ac/ ax) Supports 2.4/ 5GHz frequency band Bluetooth v5.0 or later" |
| Supported Storage | Supports 4 x M.2 slots and 6 x SATA 6Gb/s ports Intel 11th & 10th Gen Processors M.2_1 slot (Key M), type 2242/ 2260/ 2280/ 22110 - Only Intel 11th Core processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs M.2_2 slot (Key M), type 2242/ 2260/ 2280/ 22110 - Intel 11th processors support PCIe 4.0 x4 mode - Intel 10th processors support PCIe 3.0 x4 mode Intel Z590 Chipset M.2_3 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 3.0 x4 mode) M.2_4 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 3.0 x4 & SATA modes) 6 x SATA 6Gb/s ports Raid function in Intel Rapid Storage Technology is available with either 1. Intel SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots. To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology. |
| USB (s) | Rear USB: Total 10 ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB: Total 7 ports 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers 1 x VRM heatsink Fan header 1 x W_PUMP+ header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 4 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x AURA Addressable Gen 2 headers 1 x AURA RGB header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt header |
| WARRANTY | |
| Manufacturing Warranty | 3 Years |
Description
Elevate Your Gaming Experience with the Asus ROG Strix Z590-F
The Asus ROG Strix Z590-F Gaming Wi-Fi motherboard is designed for gamers and enthusiasts who demand the best in performance and features. This ATX motherboard supports both Intel 10th and 11th Gen processors, offering unmatched speed and efficiency for your gaming rig. With an emphasis on connectivity, it comes equipped with Wi-Fi 6 technology, ensuring you stay connected with blazing fast internet speeds. The advanced thermal design with multiple heatsinks keeps your system cool even during intense gaming sessions.
Experience enhanced audio quality with the SupremeFX audio solution, providing immersive sound that brings your games to life. The robust build quality ensures durability, while customizable RGB lighting adds a personal touch to your setup. Compatible with the latest graphics cards and memory modules, this motherboard is perfect for gamers looking to build a future-proof system.
Whether you're into eSports or single-player adventures, the Asus ROG Strix Z590-F delivers exceptional performance and reliability. Upgrade your gaming experience with this powerhouse motherboard.
