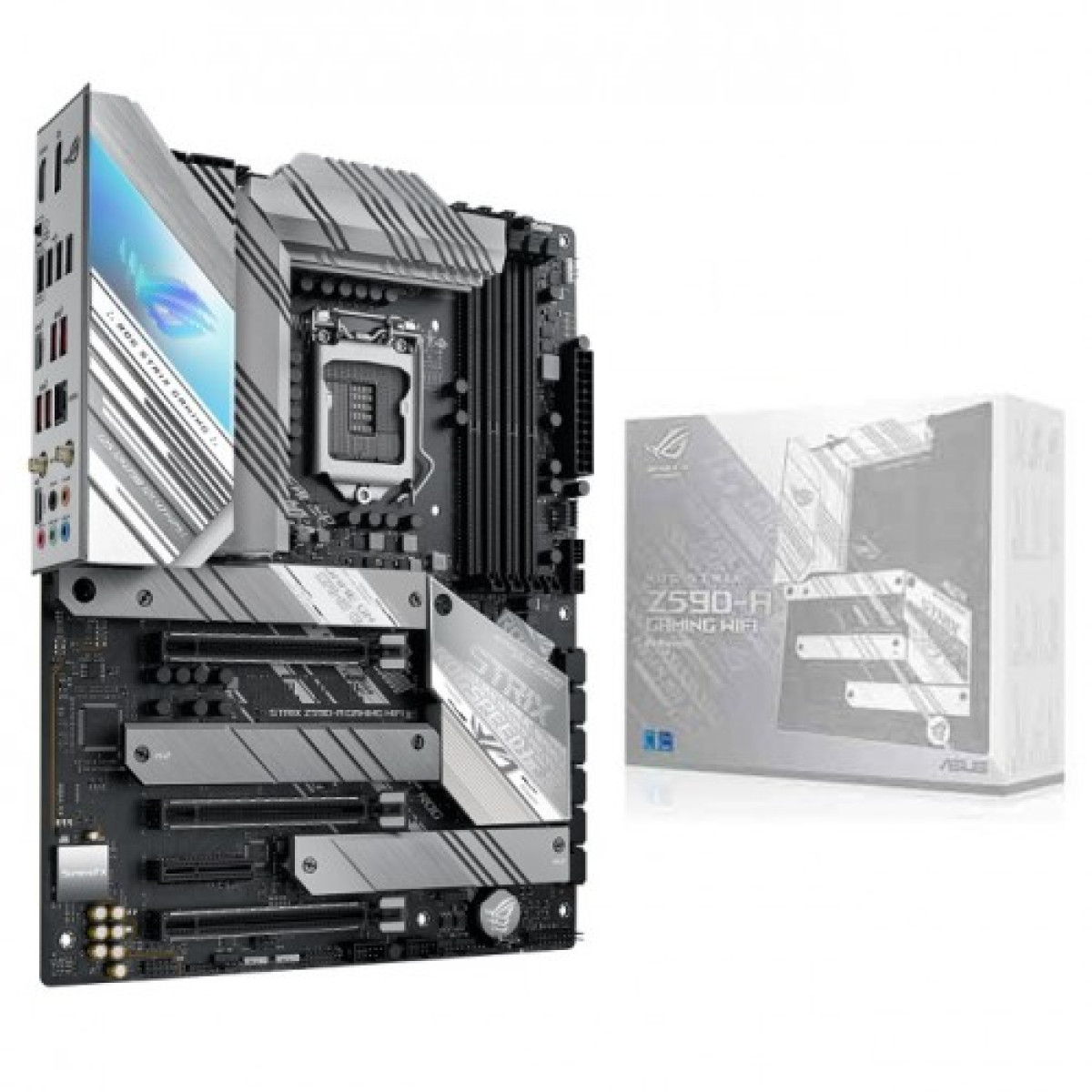

Asus ROG Strix Z590-A Gaming Wi-Fi Intel 10th and 11th Gen ATX Motherboard
৳31,700
Key highlights
- Form Factor: ATX: 30.5cm x 24.4cm
- Supported CPU: Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
- Chipset: Intel Z590 Chipset
- Audio: "ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback" Audio Features - SupremeFX Shielding Technology - ALC4080 + Savitech SV3H712 AMP - audio jacks - Rear audio USB Type-C® port - Premium Japanese audio capacitors - Audio cover
- BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Description
Enhance Your Gaming Setup with Intel 10th and 11th Gen Support
Elevate Your Gaming Experience with the Asus ROG Strix Z590-A
The Asus ROG Strix Z590-A Gaming Wi-Fi motherboard is designed to deliver exceptional performance for both Intel's 10th and 11th generation processors. With its robust ATX form factor, this motherboard is perfect for gamers and content creators who demand reliability and speed. Equipped with advanced cooling solutions, it ensures optimal temperatures even during intense gaming sessions. The integrated Wi-Fi 6 feature provides fast wireless connectivity, allowing you to game without interruptions.
The high-quality capacitors and superior power delivery ensure that your system runs smoothly, while the customizable RGB lighting gives you the chance to personalize your setup. The ROG Strix Z590-A also supports multiple M.2 slots for ultra-fast storage options, enabling faster boot times and game loading. Whether you're a professional gamer or a casual player, this motherboard brings out the best in your system.
With its sleek design and formidable performance capabilities, the Asus ROG Strix Z590-A is not just a motherboard; it's a gateway to an unparalleled gaming experience.
Explore Features of Asus ROG Strix Z590-A Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX: 30.5cm x 24.4cm |
| Supported CPU | Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel Z590 Chipset |
| Audio | "ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback" Audio Features - SupremeFX Shielding Technology - ALC4080 + Savitech SV3H712 AMP - audio jacks - Rear audio USB Type-C® port - Premium Japanese audio capacitors - Audio cover |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Expansion Slots | |
| PCI | Intel 11th &10th Gen Processors 3 x PCIe 4.0/3.0 x16 slot(s) - Intel 11th processors support PCIe 4.0 x16 or x8/ x4/ x4 mode(s) - Intel 10th processors support PCIe 3.0 x16 or x8/ x4/ x4 mode(s) Intel Z590 Chipset 1 x PCIe 3.0 x4 slot |
| Graphics Specifications | |
| Graphics | 1 x DisplayPort 1.4 1 x HDMI 2.0 |
| Memory Specifications | |
| Maximum Size | 128GB |
| Slots | 4x DIMMs |
| Supported Memory | 5333(OC)/ 5133(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4500(OC)/ 4400(OC)/ 4267(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II 10th Gen Intel Core i7/i9 processors support 2933/ 2800/ 2666/ 2400/ 2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. 11th Gen Intel processors support 3200/ 2933/ 2800/ 2666/ 2400/ 2133 natively. |
| Type | 4DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1 x DisplayPort 1.4 |
| HDMI | 1 x HDMI 2.0 |
| LAN Port (s) | 1 x Intel 2.5Gb Ethernet |
| Supported Storage | Supports 3 x M.2 slots and 6 x SATA 6Gb/s ports Intel11th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Only Intel 11th Core processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs. Intel Z590 Chipset M.2_2 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 3.0 x4 & SATA modes) M.2_3 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 3.0 x4 & SATA modes) 6 x SATA 6Gb/s ports Raid function in Intel Rapid Storage Technology is available with either 1. Intel SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots. To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology. |
| USB (s) | Rear USB: Total 10 ports 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) 4 x USB 3.2 Gen 2 port (4 x Type-A) 5 x USB 2.0 port(s) (4 x Type-A + 1 x USB Type-C) Front USB: Total 7 ports 1 x USB 3.2 Gen 1 connector(s) (support(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports |
| Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 4 x 4-pin Chassis Fan header(s) 1 x VRM heatsink Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Miscellaneous 3 x AURA Addressable Gen 2 header(s) 1 x AURA RGB header(s) 1 x Clear CMOS header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt header 1 x S/PDIF out header |
| Special | |
| Special Feature | Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink ASUS EZ DIY BIOS FlashBack button - BIOS FlashBack LED - ProCool II - Pre-mounted I/O shield - SafeSlot AURA Sync - AURA RGB header(s) - Addressable Gen 2 RGB header(s) |
| WARRANTY | |
| Manufacturing Warranty | 3 Years |
