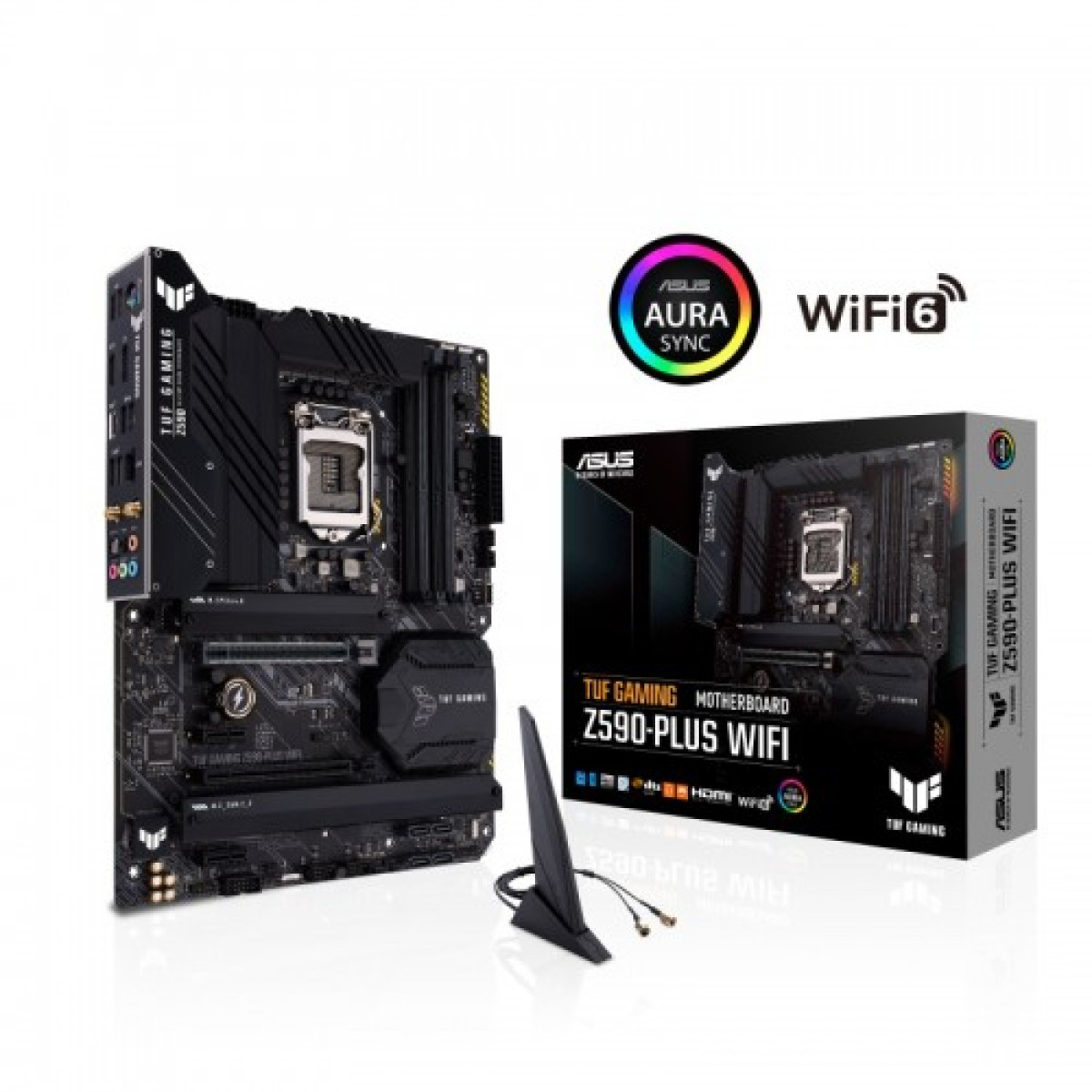

Asus TUF Gaming Z590-Plus Wi-Fi Intel 10th and 11th Gen ATX Motherboard
Now
৳21,100
Add one of these to unlock a lower price on this item
Key highlights
- Form Factor: ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
- Supported CPU: Intel Socket LGA1200 for 11th Gen Intel Core processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
- Chipset: Intel Z590 Chipset
- Audio: "Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium Japanese audio capacitors - Dedicated audio PCB layers - Audio cover
- BIOS: 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Description
Unleash Your Gaming Potential with Asus TUF Gaming Z590-Plus Wi-Fi
The Asus TUF Gaming Z590-Plus Wi-Fi motherboard is designed to elevate your gaming experience to new heights. Built for Intel 10th and 11th Gen processors, this ATX motherboard delivers exceptional performance and durability, making it an ideal choice for gamers and PC builders in Bangladesh. With its military-grade components, you can trust that this motherboard will withstand the rigors of intense gaming sessions.
Featuring Wi-Fi 6 technology, you'll enjoy lightning-fast connectivity, allowing you to game and stream without interruptions. The unique Thermal Armor and cooling solutions ensure that your system remains cool, even during the most demanding tasks. Additionally, the motherboard supports multi-GPU configurations, providing you with the flexibility to boost your graphics performance.
With comprehensive RGB lighting customization options, you can personalize your setup to match your style. The easy-to-use BIOS interface makes overclocking and system tuning accessible for users of all skill levels. Experience the perfect blend of performance, aesthetics, and durability with the Asus TUF Gaming Z590-Plus Wi-Fi motherboard.
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Supported CPU | Intel Socket LGA1200 for 11th Gen Intel Core processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel Z590 Chipset |
| Audio | "Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium Japanese audio capacitors - Dedicated audio PCB layers - Audio cover |
| BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
| Expansion Slots | |
| M.2 Socket | M.2_1 slot (Key M), type 2242/ 2260/ 2280/ 22110 - Only Intel 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel Z590 Chipset M.2_2 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 3.0 x4 & SATA modes) M.2_3 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 3.0 x4 & SATA modes) |
| PCI | Intel 11th & 10th Gen Processors 1 x PCIe 4.0/ 3.0 x16 slot - Intel 11th processors support PCIe 4.0 x16 - Intel10th processors support PCIe 3.0 x16 Intel Z590 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots |
| Graphics Specifications | |
| Graphics | 1x DisplayPort 1.4 1x HDMITM 2.0 |
| Memory Specifications | |
| Maximum Size | 128GB |
| Slots | 4 x DIMM |
| Supported Memory | 5133(OC)/ 5000(OC)/ 4800(OC)/ 4700(OC)/ 4600(OC)/ 4500(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1x DisplayPort 1.4 |
| HDMI | 1x HDMITM 2.0 |
| LAN Port (s) | 1 x Intel I225-V 2.5Gb Ethernet TUF LANGuard Wireless & Bluetooth "Intel Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/ b/ g/ n/ ac/ ax) Supports 2.4/ 5GHz frequency band Bluetooth v5.0 or later" |
| Supported Storage | Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports Intel 11th Gen Processors M.2_1 slot (Key M), type 2242/ 2260/ 2280/ 22110 - Only Intel 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel Z590 Chipset M.2_2 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 3.0 x4 & SATA modes) M.2_3 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 3.0 x4 & SATA modes) 6 x SATA 6Gb/s ports |
| USB (s) | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (suppports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 headers supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt header |
| Special | |
| Special Feature | ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - TUF LANGuard - Overvoltage Protection ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool - Pre-mounted I/O shield - SafeSlot AURA Sync - AURA RGB headers - Addressable Gen 2 RGB headers |
| WARRANTY | |
| Manufacturing Warranty | 3 Years |
