Key highlights
- Form Factor: Micro ATX Form Factor 8.9 inch x 8.2 inch ( 22.6 cm x 20.8 cm )
- Supported CPU: Intel® Socket 1151 for 8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0
- Chipset: Intel® H310
- Memory: 32GB
- Slots: DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Description
Best Deals on 8th Gen mATX Motherboards in Bangladesh

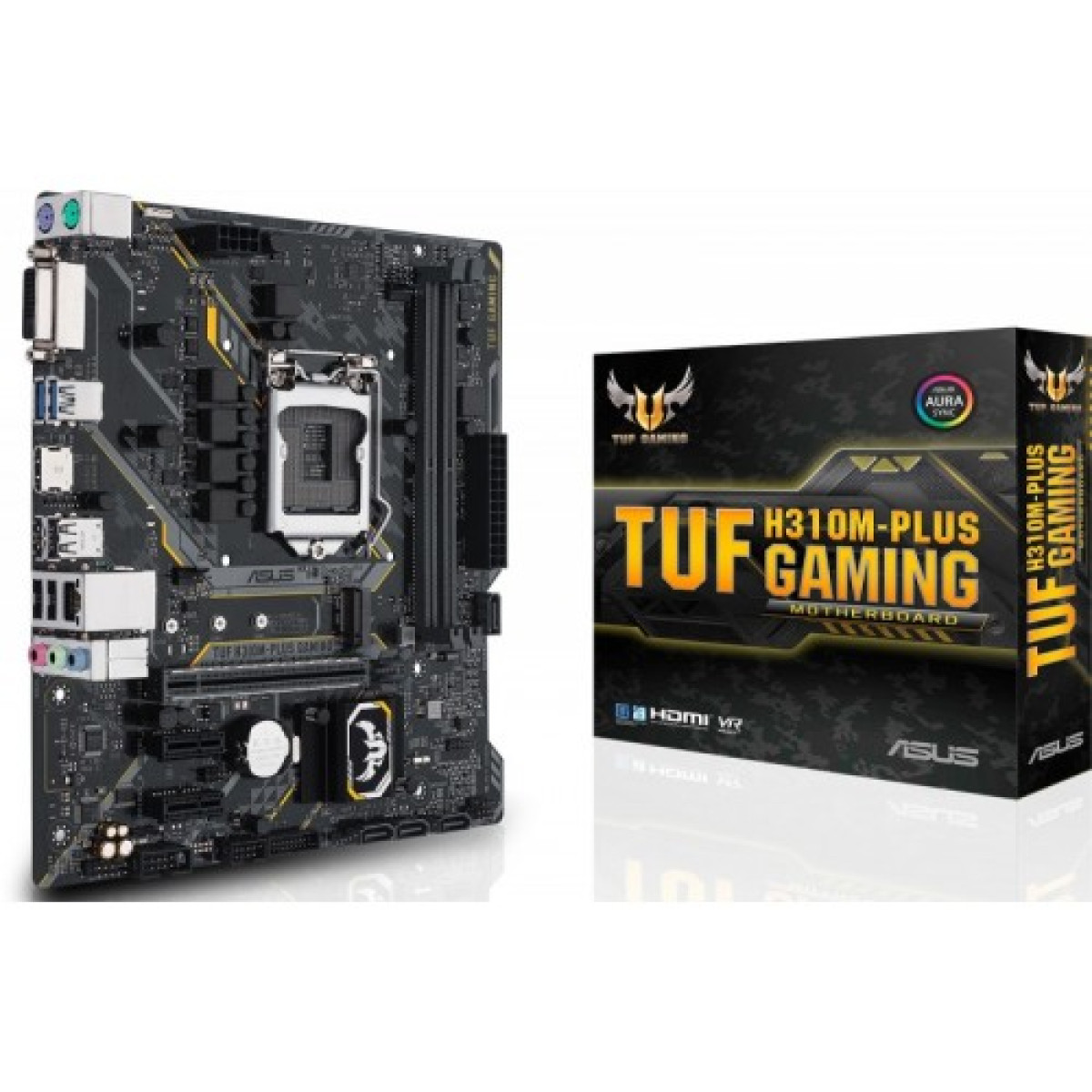

Unleash Your Gaming Potential with the Asus TUF H310M PLUS GAMING
The Asus TUF H310M PLUS GAMING motherboard is designed for gamers who demand reliability and performance. Built on the Intel H310 chipset, this mATX motherboard supports the 8th Generation Intel Core processors, allowing you to experience seamless gaming and multitasking. With enhanced durability features and military-grade components, it ensures stability even during intense gaming sessions.
Equipped with dual-channel DDR4 memory support, the TUF H310M PLUS GAMING can handle up to 32GB of RAM, providing the speed necessary for modern gaming and demanding applications. The motherboard also features multiple connectivity options, including USB 3.1 and HDMI ports, making it versatile for various setups.
Additionally, the Aura Sync RGB lighting allows you to customize your gaming rig's aesthetics, ensuring that it not only performs well but looks stunning too. With TUF's reputation for high-quality construction, this motherboard is a solid choice for gamers in Bangladesh looking to build or upgrade their systems.
Top Features of Asus TUF H310M PLUS GAMING Board
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | Micro ATX Form Factor 8.9 inch x 8.2 inch ( 22.6 cm x 20.8 cm ) |
| Supported CPU | Intel® Socket 1151 for 8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 |
| Chipset | Intel® H310 |
| Memory | 32GB |
| Slots | DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory |
| Audio | Realtek® ALC887 7.1-Channel High Definition Audio CODEC *2 Audio Feature : - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information, F4 AURA ON/OFF, F9 Search |
| Expansion Slots | |
| M.2 Socket | 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support(both PCIE 2.0 x4 & SATA mode) |
| PCI | Intel® H310 Chipset 1 x PCIe 3.0/2.0 x16 (x16 mode) 2 x PCIe 2.0 x1 |
| Graphics Specifications | |
| Max Shared Memory | 1024 MB |
| Graphics | Multi-VGA output support : HDMI/DVI-D ports - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz |
| Memory Specifications | |
| Supported Memory | DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors. |
| Type | 2 x DIMM |
| PORTS, CONNECTORS & SLOTS | |
| DVI-D (s) | 1 X DVI-D |
| HDMI | 1 x HDMI |
| LAN Port (s) | Intel® I219V, 1 x Gigabit LAN Controller(s) TUF LANGuard |
| Supported Storage | Intel® H310 Chipset : 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support(both PCIE 2.0 x4 & SATA mode)*1 4 x SATA 6Gb/s port(s), |
| USB (s) | Intel® H310 Chipset : 4 x USB 3.1 Gen 1 up to 5Gbps port(s) (2 at back panel, blue, Type-A, 2 at mid-board) Intel® H310 Chipset : 6 x USB 2.0/1.1 port(s) (4 at back panel, black, Type-A, 2 at mid-board) |
| Internal I/O Connectors | 1 x RGB Header(s) 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2 Socket 3 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x Speaker connector |
| WARRANTY | |
| Manufacturing Warranty | 03 years |
