Key highlights
- Interface: 10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 unshielded twisted-pair (UTP) cabling100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
- Network Standard: IEEE 802.1D Spanning Tree ProtocolIEEE 802.1p CoS PrioritizationIEEE 802.1Q VLANIEEE 802.1sIEEE 802.1wIEEE 802.1XIEEE 802.1ab (LLDP)IEEE 802.3adIEEE 802.3afIEEE 802.3ah (100BASE-X single/multimode fiber only)IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T portsIEEE 802.3 10BASE-TIEEE 802.3u 100BASE-TXIEEE 802.3ab 1000BASE-TIEEE 802.3z 1000BASE-XRMON I and II standardsSNMP v1, v2c, and v3
- Power Supply: 110-240VAC, 50-60 Hz
- LED: Per-port status: Link integrity, disabled, activity, speed, and full duplexSystem status, Port Status, RPS, link duplex, and link speed
- Data Transfer Rates: Switching capacity: : 16 Gbps
Description
Reliable Networking with Catalyst 2960 Plus Switch

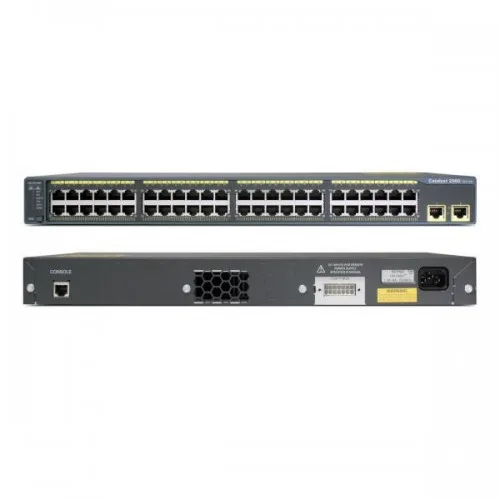

Introducing the Cisco Catalyst 2960 Plus 48 Port LAN Switch
The Cisco Catalyst 2960 Plus 48 Port LAN Switch is designed to meet the needs of modern businesses in Bangladesh, offering exceptional performance and reliability for your network infrastructure. With its 48 Ethernet ports, this switch allows for seamless connectivity among multiple devices, ensuring that your organization can operate efficiently and effectively. The Catalyst 2960 Plus series provides advanced features such as Quality of Service (QoS) and Energy Efficient Ethernet, which not only enhance network performance but also help in reducing energy consumption, making it an eco-friendly choice.
In addition, the switch is equipped with Layer 2 switching capabilities, enabling optimized data flow and security across your network. Its user-friendly interface and intuitive management tools make it easy for IT professionals to configure and manage, allowing you to focus on growing your business. Whether you run a small office or a large enterprise, the Catalyst 2960 Plus is an ideal solution tailored to meet diverse networking demands.
Explore Features of Cisco Catalyst 2960 Plus Switch
Specification
| BASIC INFORMATION | |
|---|---|
| Interface | 10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 unshielded twisted-pair (UTP) cabling100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling |
| Network Standard | IEEE 802.1D Spanning Tree ProtocolIEEE 802.1p CoS PrioritizationIEEE 802.1Q VLANIEEE 802.1sIEEE 802.1wIEEE 802.1XIEEE 802.1ab (LLDP)IEEE 802.3adIEEE 802.3afIEEE 802.3ah (100BASE-X single/multimode fiber only)IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T portsIEEE 802.3 10BASE-TIEEE 802.3u 100BASE-TXIEEE 802.3ab 1000BASE-TIEEE 802.3z 1000BASE-XRMON I and II standardsSNMP v1, v2c, and v3 |
| Power Supply | 110-240VAC, 50-60 Hz |
| LED | Per-port status: Link integrity, disabled, activity, speed, and full duplexSystem status, Port Status, RPS, link duplex, and link speed |
| Data Transfer Rates | Switching capacity: : 16 Gbps |
| Environment | Operating temperature up to 5000 ft (1500 m) 23º to 113ºF (-5º to 45ºC) Operating temperature up to 10,000 ft (3000 m) 23º to 104ºF (-5º to 40ºC) Short-term exception at sea level* 23º to 131ºF (-5º to 55ºC) Short-term exception up to 5000 feet (1500 m)* 23º to 122ºF (-5º to 50ºC) Short-term exception up to 10,000 feet (3000 m)* 23º to 113ºF (-5º to 45ºC) Short-term exception up to 13,000 feet (4000 m)* 23º to 104ºF (-5º to 40ºC) Storage temperature up to 15,000 feet (4573 m) 23º to 158ºF (-25º to 70ºC) Operating altitude Up to 10,000 Feet (Up to 3,000 Meters) Storage altitude Up to 13,000 Feet (Up to 4,000 Meters) Operating relative humidity 10% to 95% noncondensing Storage relative humidity 10% to 95% noncondensing Sound Pressure, dBA Typical, LpAm: 33 Maximum, LpAD: 36 Sound Power, dbA Typical, LwA: 43 Maximum, LwAD: 46 MTBF in thousands of hours 667 |
| Type | LAN |
| Main Features | |
| Port | 48 ports: RJ-45 connectors |
| WARRANTY | |
| Manufacturing Warranty | 1 Year Warranty |
