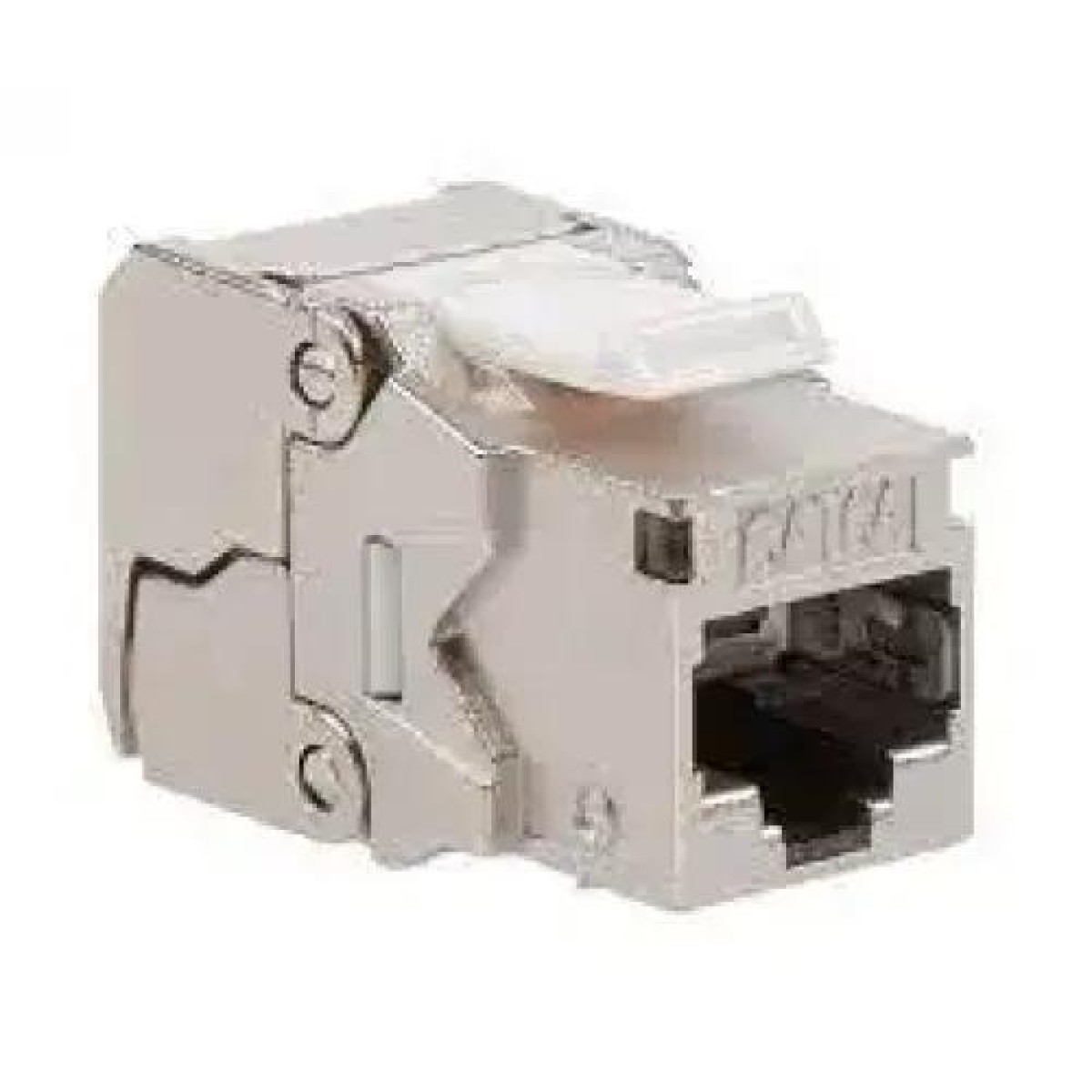

CommScope 2153354-1 RJ45 Modular Jack

CommScope 2153354-1 RJ45 Modular Jack

The CommScope RJ45 Modular Jack is a high-performance shielded connector for Category 6A cabling systems that meets the ANSI/TIA-568.2-D and ISO/IEC 11801 Class EA transmission standards. This modular jack supports wire configurations T568A and T568B and is appropriate for both solid and stranded conductor types. Its IDC termination and standard outlet type provide dependable and simple installation. The CommScope 2153354-1 RJ45 Modular Jack is built of sturdy polycarbonate and has a beryllium copper contact base with a 1.27 µm gold plating thickness, which improves its conductivity and longevity. Compact in size, the CommScope 2153354-1 RJ45 Modular Jack measures 21.5 mm (0.846 in) in height, 17.2 mm (0.677 in) in width, and 38.3 mm (1.508 in) in depth. It accepts wires with a maximum diameter of 9 mm (0.354 in) and panels with a suggested thickness of 1.6 mm (0.063 in). The jack can handle IEEE 802.3bt Type 4 (90 W) Power over Ethernet (PoE) applications and has withstood more than 3000 plug-to-jack mating cycles, indicating its robustness. The appropriate conductor gauges are 24 AWG for stranded wires and 26 to 22 AWG for solid wires. Although the CommScope 2153354-1 RJ45 Modular Jack lacks an inbuilt dust cover, it is guaranteed to be reliable in a variety of networking situations by adhering to the IEC 60603-7 standard for plug-to-jack mating cycles. Because of its sturdy construction and materials, it offers reliable performance and long endurance, making it the perfect option for demanding applications and high-speed data transfer. In Bangladesh, you can get original From Unix Network. We have a large collection of latest to purchase. Order Online Or Visit your Nearest Shop to get yours at lowest price. The CommScope 2153354-1 RJ45 Modular Jack comes with no warranty.
