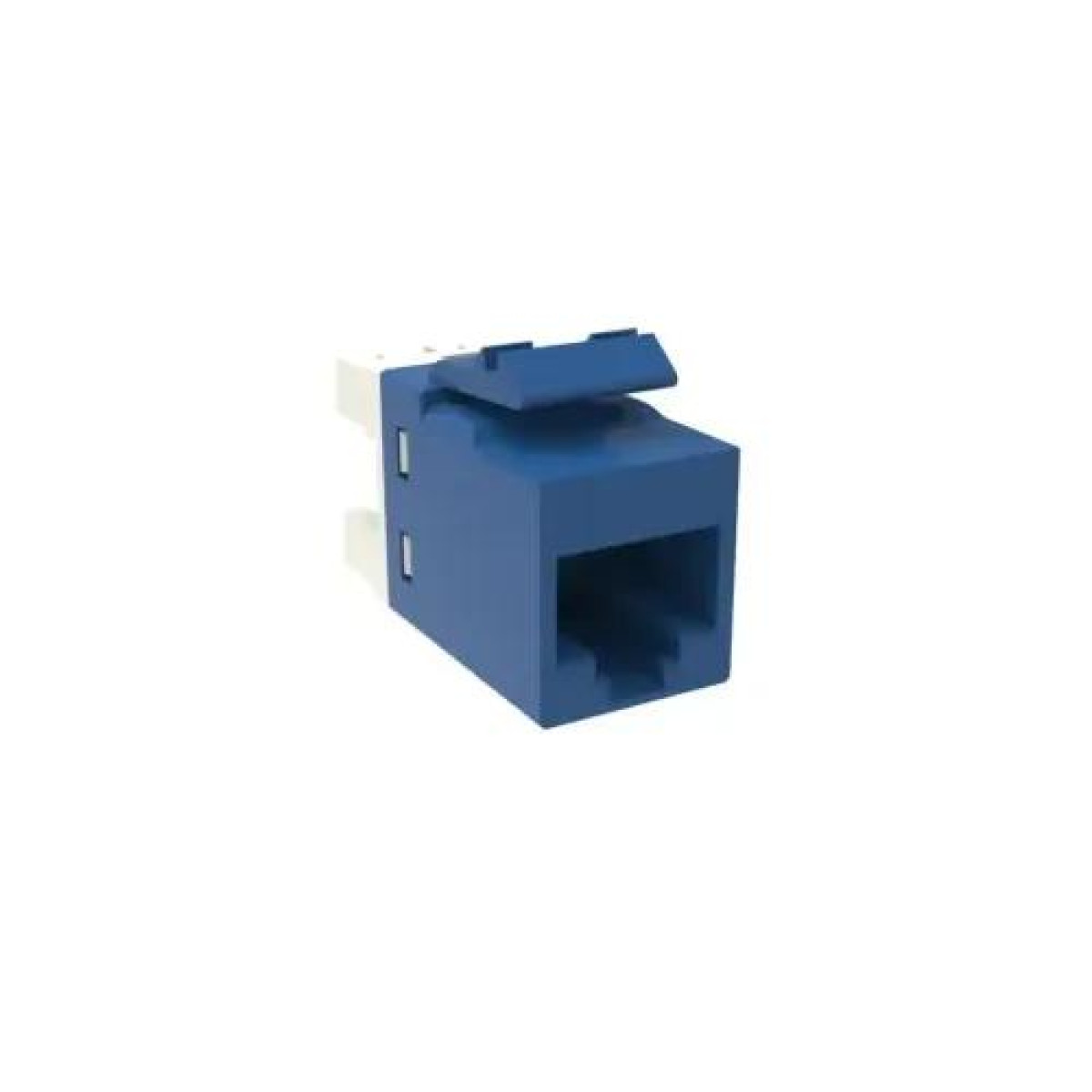

CommScope SL110-6-BL Cat 6 RJ45 Modular Jack

CommScope SL110-6-BL Cat 6 RJ45 Modular Jack

The CommScope Cat 6 RJ45 Modular Jack is a high-performance component built to withstand the harsh demands of today's networking settings. It supports unshielded cable types and complies with ANSI/TIA Category 6 requirements. The blue jack has an inverted jack face for normal outlet applications and works with solid and stranded conductors. It is flexible and adaptable to different installations because it may be installed on panels and faceplates from the SL Series. The CommScope SL110-6-BL Cat 6 RJ45 Modular Jack is compatible with T568A and T568B wire designs. An SL Termination tool is needed to perform IDC-style terminations, which are dependable for at least 200 punch downs. Additionally, it complies with ISO/IEC 11801 Class E and ANSI/TIA-568.2-D transmission requirements. A 14.78 x 20.07 mm panel cutout with a 1.6 mm panel thickness is advised for this jack. The CommScope SL110-6-BL Cat 6 RJ45 Modular Jack has small dimensions: 16.13 mm in height, 14.48 mm in width, and 30.48 mm in depth. It can accommodate insulated conductors up to 1.45 mm in diameter and cables with a maximum diameter of 5.8 mm. The 1.27 µm thick contact plating of the CommScope SL110-6-BL Cat 6 RJ45 Modular Jack allows it to work with solid wires between 24 and 22 AWG and stranded conductors between 26 and 24 AWG. It supports a current rating of 1.5 A at 20°C and guarantees low contact resistance, with a maximum fluctuation of 20 mOhm and a maximum resistance of 100 mOhm. With 1,500 Vac at 60 Hz between conductive surfaces and 1,000 Vac at 60 Hz contact-to-contact, the dielectric withstand voltage is remarkable. It has a minimum 500 MOhm insulating resistance. Even after three thousand plug-to-jack mating cycles, the CommScope SL110-6-BL Cat 6 RJ45 Modular Jack complies with IEEE 802.3bt Type 4 (90 W) requirements and fully supports remote powering and Power over Ethernet (PoE) applications. The jack has a sturdy construction with polycarbonate material type, gold contact plating, and tin termination contact plating. The safety voltage rating is 150 Vac. Following IEC 60603-7 series requirements, the CommScope SL110-6-BL Cat 6 RJ45 Modular Jack plug retention force is at least 50 N, guaranteeing dependable and consistent performance in demanding networking applications. In Bangladesh, you can get original From Unix Network. We have a large collection of latest CommScope to purchase for your . Order Online Or Visit your Nearest to get yours at lowest price. The CommScope SL110-6-BL Cat 6 RJ45 Modular Jack comes with no warranty.
