Gigabyte A520M DS3H Micro-ATX AMD AM4 Motherboard
Key highlights
- Form Factor: Micro ATX Form Factor; 24.4cm x 24.4cm
- Supported CPU: AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
- Chipset: AMD A520
- Audio: Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel
- BIOS: 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Genuine products with manufacturer warranty where applicable. Keep your invoice for warranty claims.
Contact us within the return window for defective or wrong items. Open-box returns may vary by category.
Description
Affordable AMD AM4 Motherboard for Your PC Build

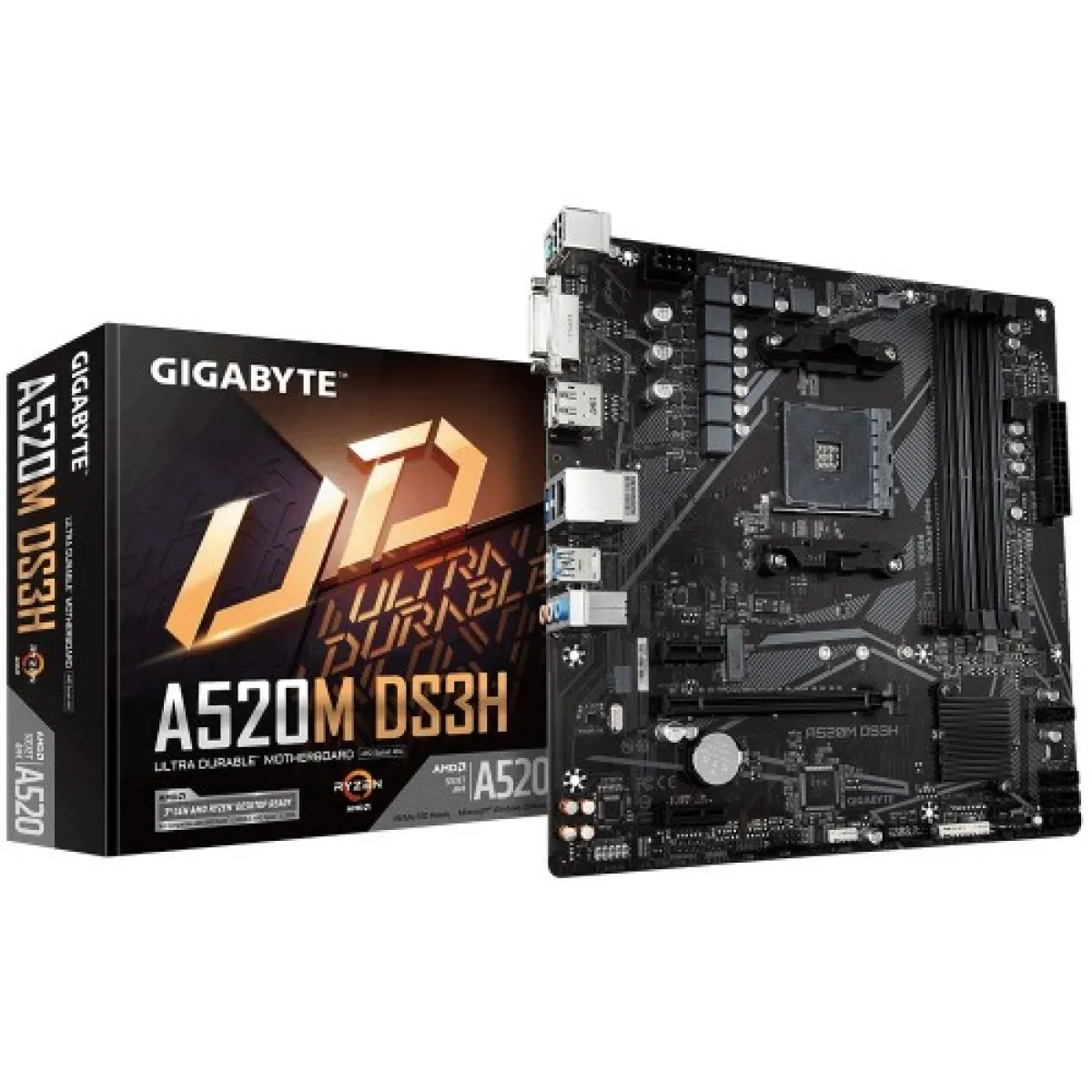

Gigabyte A520M DS3H Micro-ATX Motherboard
The Gigabyte A520M DS3H Micro-ATX motherboard is designed for the AMD AM4 socket, making it an excellent choice for building or upgrading your PC. Engineered with performance and reliability in mind, this motherboard comes packed with features that cater to both gamers and professionals alike.
With support for the latest AMD Ryzen processors, the A520M DS3H is equipped with a robust power delivery system, ensuring stable operation even under heavy loads. Its dual channel DDR4 memory support allows for speeds of up to 3200MHz, enhancing your gaming and multitasking experience.
This motherboard features multiple connectivity options, including HDMI and DVI-D outputs for versatile display setups. The built-in Realtek ALC887 audio codec ensures high-quality audio output, perfect for gaming and media consumption.
Furthermore, the Ultra Durable technology enhances the motherboard’s longevity, providing protection against humidity, electrostatic discharge, and temperature fluctuations. Whether you're building a new rig or upgrading your existing setup, the Gigabyte A520M DS3H offers exceptional value and performance in the Bangladeshi market.
Reliable Micro-ATX Board with Great Features
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Supported CPU | AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors |
| Chipset | AMD A520 |
| Audio | Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Type | Dual-Channel Memory Architecture |
| Expansion Slots | |
| PCI | CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0 (PCIEX1_1, PCIEX1_2) |
| Graphics Specifications | |
| Max Shared Memory | 16 GB |
| Memory Specifications | |
| Maximum Memory | 128 GB (32 GB single DIMM capacity) |
| Slots | 4 x DDR4 DIMM |
| Supported Memory | 3rd Gen AMD Ryzen Processors: Support for DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 3rd Gen AMD Ryzen with Radeon Graphics processors: Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| PORTS, CONNECTORS & SLOTS | |
| DVI-D (s) | 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz |
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button |
| LAN Port (s) | Realtek GbE LAN chip (1000 Mbit/100 Mbit) |
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) Chipset: 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) |
| USB (s) | CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
| WARRANTY | |
| Manufacturing Warranty | 3 Years |
