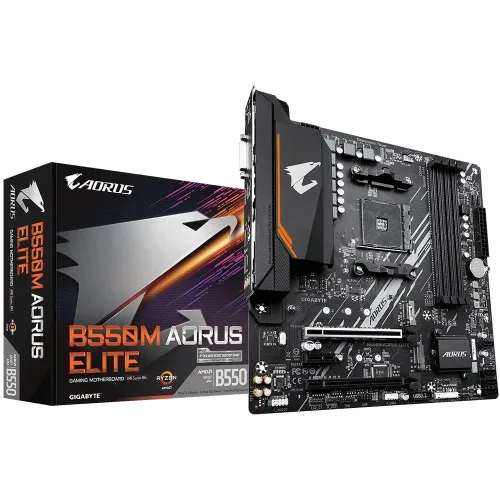

Gigabyte B550M Aorus Elite AMD Micro ATX Motherboard
- Brand:Gigabyte
- Product Code: B550M Aorus Elite
- Availability:In Stock
- Updated:
Specification
| BASIC INFORMATION | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
|---|---|
| Graphics | Integrated into the 3rd Generation AMD Ryzen with Radeon Graphics processors: 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| SpecialFeatures | Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
| Supported CPU | AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors |
| Chipset | AMD B550 |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Type | Dual-Channel Architecture |
| Expansion Slots | |
| M.2 Socket | 1 x PCI Express x16 slot (PCIEX16), integrated into the CPU: 3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode 3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode 1 x PCI Express x16 slot (PCIEX4), integrated into the Chipset: Supporting PCIe 3.0 x4 mode 1 x PCI Express x1 slot (PCIEX1), integrated into the Chipset: Supporting PCIe 3.0 x1 mode |
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - 3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode - New Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode 1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset: - Supporting PCIe 3.0 x2 mode 1 x PCI Express x16 slot (PCIEX1_2), integrated in the Chipset: - Supporting PCIe 3.0 x1 mode 1 x PCI Express x1 slot (PCIEX1_1), integrated in the Chipset: - Supporting PCIe 3.0 x1 mode |
| Graphics Specifications | |
| Max Shared Memory | 16 GB |
| Interface | |
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| Memory Specifications | |
| Maximum Memory | support up to 128GB |
| Slots | 4 x DDR4 memory slots |
| Supported Memory | 3rd Gen AMD Ryzen Processors: Support for DDR4 4000(O.C.) / 3600(O.C.) / 3333(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules New Generation AMD Ryzen with Radeon Graphics processors: Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200 /2933 /2667 /2400 /2133 MHz memory modules |
| PORTS, CONNECTORS & SLOTS | |
| DVI-D (s) | 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz |
| USB (s) | 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
| Special | |
| Bundled Software | Support for Windows 10 64-bit |
| WARRANTY | |
| Manufacturing Warranty | 03 years warranty |
Description
Discover the Power of the Gigabyte B550M Aorus Elite
The Gigabyte B550M Aorus Elite AMD Micro ATX Motherboard is the perfect choice for gamers and professionals seeking a blend of performance and reliability. With support for the latest AMD Ryzen processors, this motherboard ensures that your system runs smoothly under heavy loads. The PCIe 4.0 support provides faster data transfer rates, making it ideal for high-speed graphics cards and storage devices.
Designed with gamers in mind, the B550M Aorus Elite features advanced thermal management with its Smart Fan 5 technology, allowing for optimal cooling during intense gaming sessions. The motherboard also includes RGB Fusion 2.0, providing customizable lighting options to match your gaming setup.
Moreover, with Dual Channel DDR4 memory support and multiple M.2 slots, you can enhance your system’s performance with ease. The durable build quality and reinforced PCIe slots ensure longevity and stability, giving you peace of mind for years to come.
