Key highlights
- Form Factor: ATX Form Factor; 30.5cm x 24.4cm
- Supported CPU: AMD Socket AM5, support for: AMD Ryzen 8000 & 7000 Series Processors
- Chipset: AMD B650
- Slots: 4 DIMMs
- Audio: 3 x Audio jacks
Description

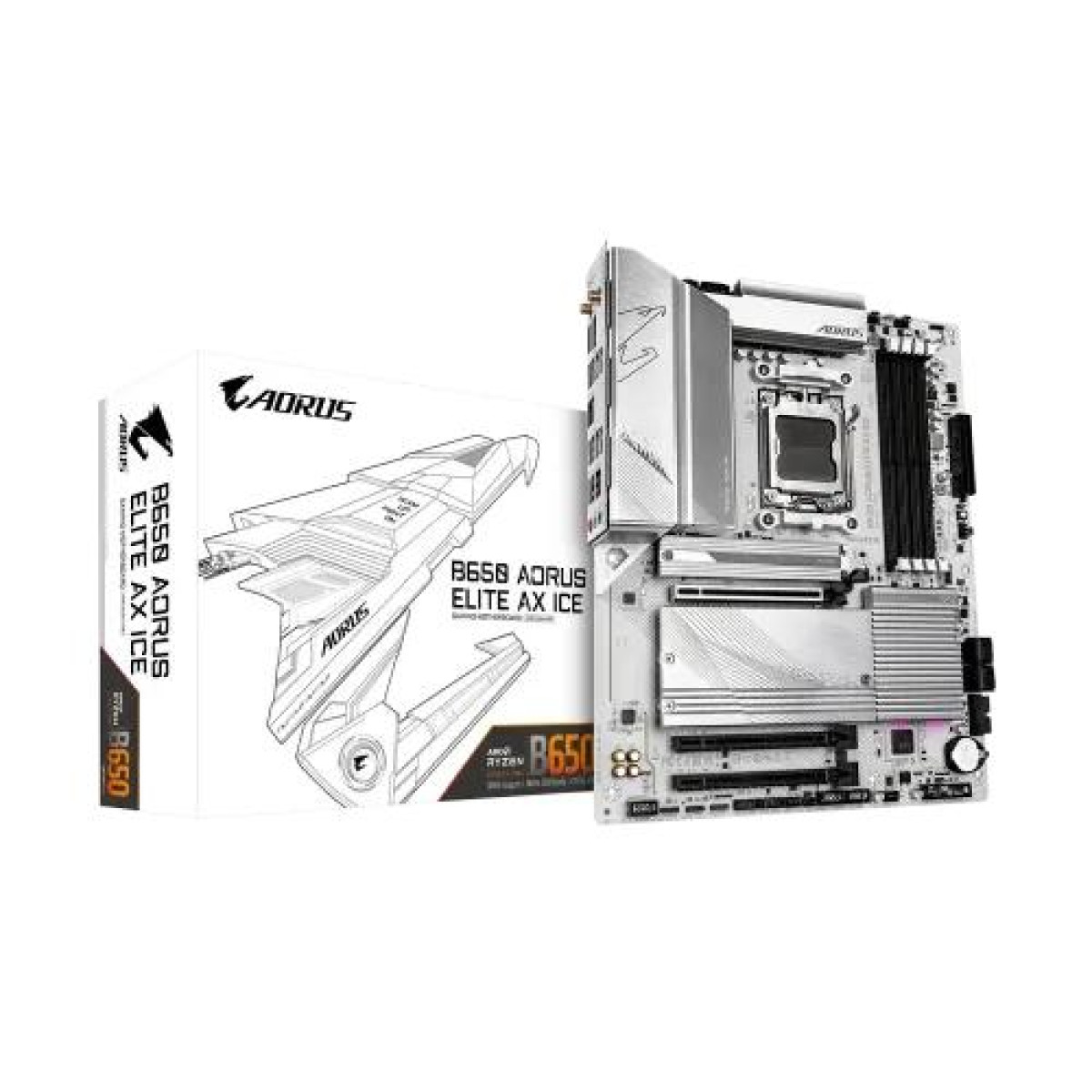

If you're in the market for a high-performance motherboard that delivers top-notch quality and speed, look no further than the GIGABYTE B650 AORUS ELITE AX ICE DDR5 AM5 ATX Motherboard. Designed to meet the demanding needs of computer users and students alike, this motherboard offers unparalleled performance and reliability.
Featuring the latest DDR5 technology, the GIGABYTE B650 AORUS ELITE AX ICE DDR5 AM5 ATX Motherboard is capable of handling even the most intensive tasks with ease. Whether you're editing videos, playing games, or multitasking, this motherboard will ensure smooth and seamless performance every step of the way.
Not only does this motherboard offer blazing fast speed, but it also boasts exceptional build quality. Constructed with high-quality materials and expert craftsmanship, the GIGABYTE B650 AORUS ELITE AX ICE DDR5 AM5 ATX Motherboard is built to last. Say goodbye to worrying about frequent upgrades or replacements – this motherboard is built to stand the test of time.
With its sleek and modern design, the GIGABYTE B650 AORUS ELITE AX ICE DDR5 AM5 ATX Motherboard will add a touch of style to your computer setup. Whether you're a professional working on important projects or a student completing assignments, this motherboard will complement your workspace perfectly.
When you choose the GIGABYTE B650 AORUS ELITE AX ICE DDR5 AM5 ATX Motherboard, you're investing in quality, performance, and speed. Experience the difference for yourself and take your computing experience to the next level. Don't settle for less – choose the best with the GIGABYTE B650 AORUS ELITE AX ICE DDR5 AM5 ATX Motherboard. Visit Unix Network in Jashore, Bangladesh, today to get your hands on this top-of-the-line motherboard.
The GIGABYTE B650 AORUS ELITE AX ICE DDR5 AM5 ATX Motherboard is a powerhouse of performance and speed, designed to meet the needs of computer users and students alike. With its cutting-edge features and top-quality build, this motherboard is sure to take your computing experience to the next level.
Featuring the latest DDR5 memory technology, the B650 AORUS ELITE AX ICE motherboard allows for faster data transfer speeds and improved multitasking capabilities. Say goodbye to lag and slow loading times - this motherboard is optimized for seamless performance, whether you're gaming, studying, or working on a project.
Designed with precision and care, the B650 AORUS ELITE AX ICE motherboard from GIGABYTE is a testament to quality craftsmanship. Built to last, this motherboard is durable and reliable, ensuring that your system stays up and running smoothly for years to come.
Speed is of the essence when it comes to computing, and the B650 AORUS ELITE AX ICE motherboard delivers in spades. With advanced features like PCIe 4.0 support and ultra-fast USB connectivity, this motherboard is built for high-speed data transfer and lightning-fast response times. Say goodbye to bottlenecking and hello to a smooth, efficient computing experience.
Whether you're a seasoned computer user or a student looking to upgrade your system, the GIGABYTE B650 AORUS ELITE AX ICE DDR5 AM5 ATX Motherboard is the perfect choice. Visit Unix Network in Jashore, Bangladesh, to get your hands on this top-of-the-line motherboard and take your computing experience to new heights. Don't settle for anything less than the best - choose GIGABYTE for quality, performance, and speed.
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Supported CPU | AMD Socket AM5, support for: AMD Ryzen 8000 & 7000 Series Processors |
| Chipset | AMD B650 |
| Slots | 4 DIMMs |
| Audio | 3 x Audio jacks |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Expansion Slots | |
| PCI | Expansion Slots 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2) |
| Graphics Specifications | |
| Graphics | Integrated Graphics Processor: 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version and HDR. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. |
| Memory Specifications | |
| Maximum Memory | up to 192 GB (48 GB single DIMM capacity) |
| Supported Memory | 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory module (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.) |
| Type | DDR5 |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1 x DisplayPorts |
| HDMI | 1x HDMI |
| Internal I/O Ports | Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 1 x Q-Flash Plus button 2 x SMA antenna connectors (2T2R)jk 1 x DisplayPort 1 x HDMI port 1 x USB Type-C port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 5 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: - AMD Ryzen 7000 Series Processors support PCIe 5.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: - AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
| USB (s) | CPU: - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel CPU + USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel Chipset: - 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header - 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) - 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 ports on the back panel |
| Wireless Communication module | Realtek Wi-Fi 6E RTL8852CE - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless (Actual data rate may vary depending on environment and equipment.) |
| Special | |
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
| WARRANTY | |
| Manufacturing Warranty | 3 Years |
