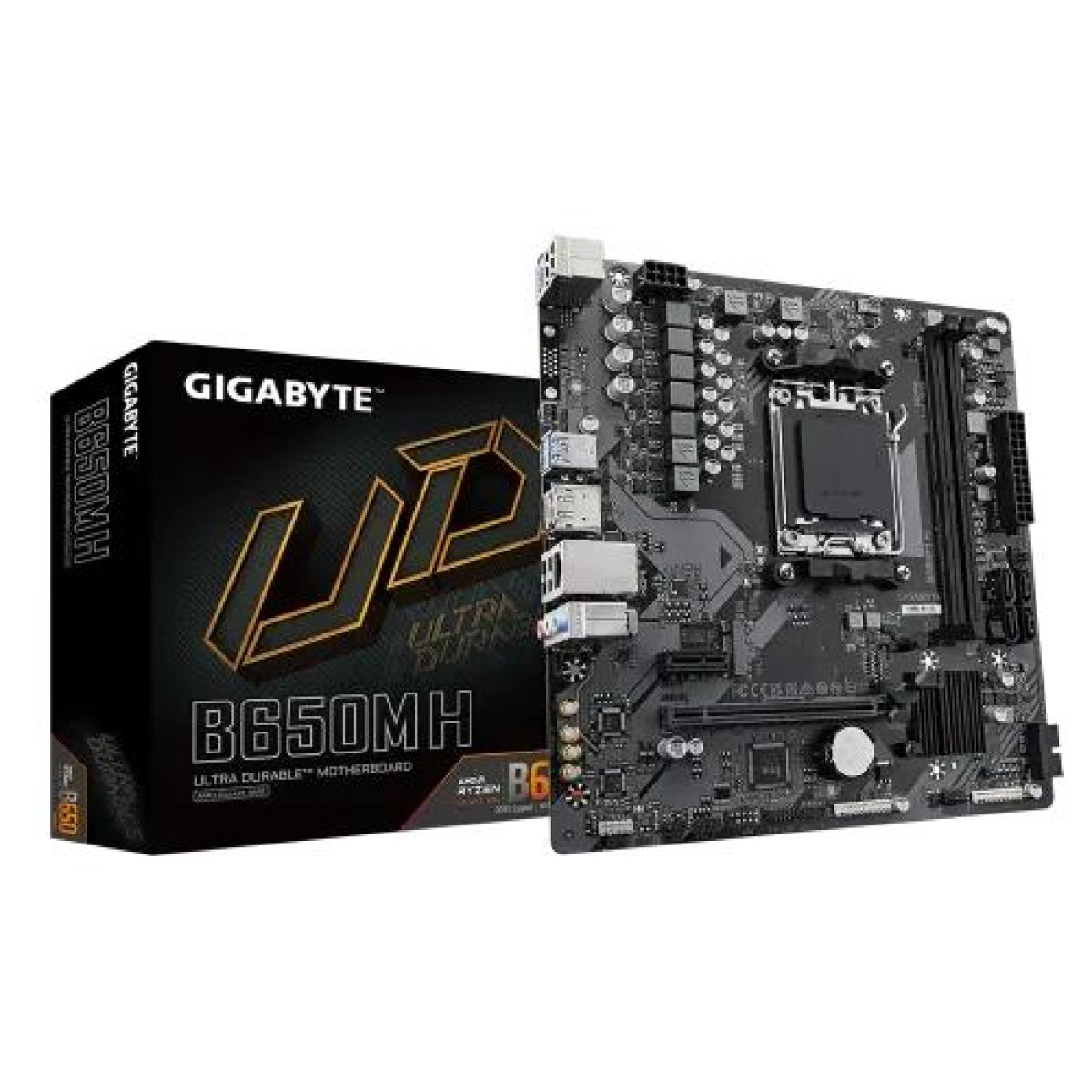

GIGABYTE B650M H AM5 Micro-ATX Motherboard
- Brand: Gigabyte
- Product Code: GIGABYTE B650M H AM5 Micro-ATX Motherboard
- Availability: In Stock
Specification
| BASIC INFORMATION | |
| Form Factor | Micro ATX Form Factor; 23.0cm x 22.5cm |
| Supported CPU | AMD Socket AM5, support for: AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors |
| Chipset | AMD B650 |
| Slots | 2 x DIMM |
| Audio | 3 x audio jacks |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Expansion Slots | |
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1(PCIEX1) |
| Graphics Specifications | |
| Graphics | supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version. supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. |
| Memory Specifications | |
| Maximum Memory | supporting up to 96 GB (48 GB single DIMM capacity) of system memory |
| Supported Memory | 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules |
| Type | DDR5 |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1 x DisplayPort |
| HDMI | 1 x HDMI |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumper Back Panel Connectors 4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x Q-Flash Plus button 2 x USB 3.2 Gen 1 ports 1 x DisplayPort |
| LAN Port (s) | Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs: - AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
| USB (s) | CPU: - 2 x USB 3.2 Gen 1 ports on the back panel - 1 x USB 2.0/1.1 port on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers) |
| Special | |
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
| WARRANTY | |
| Manufacturing Warranty | 3 Years |
Description
The GIGABYTE B650M H AM5 Micro-ATX Motherboard is a high-quality, feature-packed motherboard designed to unlock the full potential of AMD's latest Ryzen 7000 series processors. Built around the AM5 socket, this motherboard supports the latest PCIe 5.0 and DDR5 memory technologies, providing future-proofing for users looking to build high-performance systems. Its micro-ATX form factor offers the perfect balance between size and expandability, making it a great choice for users looking to create compact yet powerful gaming rigs or workstations.
The B650M H motherboard is equipped with a range of advanced features, including USB 3.2 Gen 2 ports, high-speed networking options, and ample storage options, making it a versatile solution for gamers, content creators, and everyday PC enthusiasts. With its solid build quality, reliable power delivery, and a variety of expansion slots, this motherboard ensures stable performance and excellent compatibility with a wide range of components. Whether you're upgrading your current system or building a new one, the GIGABYTE B650M H AM5 Micro-ATX Motherboard is an ideal foundation for your next PC build.
People Also Ask (PAA) Section (300-400 words)
1. What makes the GIGABYTE B650M H AM5 Micro-ATX Motherboard a good choice for gaming?
The GIGABYTE B650M H AM5 is an excellent choice for gamers due to its compatibility with AMD Ryzen 7000 series processors, which offer high-performance capabilities for gaming. The motherboard supports PCIe 5.0 for faster data transfer, improving the performance of next-generation GPUs and storage devices. Additionally, it comes with multiple expansion slots for additional components such as high-speed SSDs and dedicated sound cards. With its micro-ATX form factor, it’s perfect for building a compact gaming system without compromising on performance.
2. Is the GIGABYTE B650M H compatible with DDR5 RAM?
Yes, the GIGABYTE B650M H motherboard supports DDR5 RAM, which provides improved bandwidth and performance over DDR4. This allows users to take full advantage of the faster speeds and increased capacity offered by DDR5 memory, making it ideal for gaming, content creation, and other high-performance applications. You can install high-speed DDR5 RAM modules to ensure maximum system performance and responsiveness.
3. Does the GIGABYTE B650M H AM5 motherboard support PCIe 5.0?
Yes, the GIGABYTE B650M H supports PCIe 5.0, offering significantly faster data transfer speeds compared to PCIe 4.0. This makes it an excellent choice for users who want to future-proof their system and install next-generation components such as GPUs, SSDs, and other expansion cards that will take advantage of PCIe 5.0’s increased bandwidth.
4. How many USB ports does the GIGABYTE B650M H have?
The GIGABYTE B650M H AM5 motherboard comes with a range of USB ports, including USB 3.2 Gen 2 ports that offer fast data transfer speeds. It features a combination of Type-A and Type-C ports on the back panel, providing convenient connectivity for a wide range of devices such as gaming peripherals, storage drives, and more. The motherboard also has additional USB headers for front panel connections.
5. Is the GIGABYTE B650M H AM5 motherboard suitable for content creators?
Yes, the GIGABYTE B650M H is an excellent choice for content creators. With support for high-speed DDR5 RAM, PCIe 5.0 for faster storage and GPU speeds, and ample connectivity options, it offers the performance and reliability needed for tasks like video editing, 3D rendering, and graphic design. Its stable power delivery and efficient cooling also ensure smooth performance during long creative sessions.
Use Cases and Benefits (200-300 words)
The GIGABYTE B650M H AM5 Micro-ATX Motherboard is a versatile and powerful option for a variety of users, whether you're a gamer, content creator, or PC enthusiast. For gamers, it offers fast performance and future-proofing with PCIe 5.0 support, allowing for next-gen GPUs and storage devices to be used without bottlenecks. The motherboard’s compact size is perfect for building a space-saving gaming system while still offering full features like high-speed networking and multiple expansion slots for customizability.
For content creators, the motherboard's support for high-speed DDR5 RAM and its stable power delivery ensure that resource-intensive applications such as video editing, 3D rendering, and graphic design run smoothly. The motherboard’s PCIe 5.0 support means you can take full advantage of high-speed storage devices, reducing load times and speeding up workflows.
PC enthusiasts will appreciate the flexibility offered by the B650M H. Its micro-ATX form factor makes it ideal for compact builds without sacrificing performance. The motherboard also supports overclocking, allowing enthusiasts to push their Ryzen 7000 CPUs to higher clock speeds for even more performance. The motherboard is also equipped with ample cooling and expansion options, ensuring that you can add more storage or upgrade your system as needed.
The GIGABYTE B650M H AM5 Micro-ATX Motherboard is a high-performance motherboard designed for gaming and professional applications. It supports the latest AMD AM5 processors and offers exceptional power delivery for optimum performance. The Micro-ATX form factor makes it ideal for compact PC builds without sacrificing functionality.
Specifications:
- Socket: AM5
