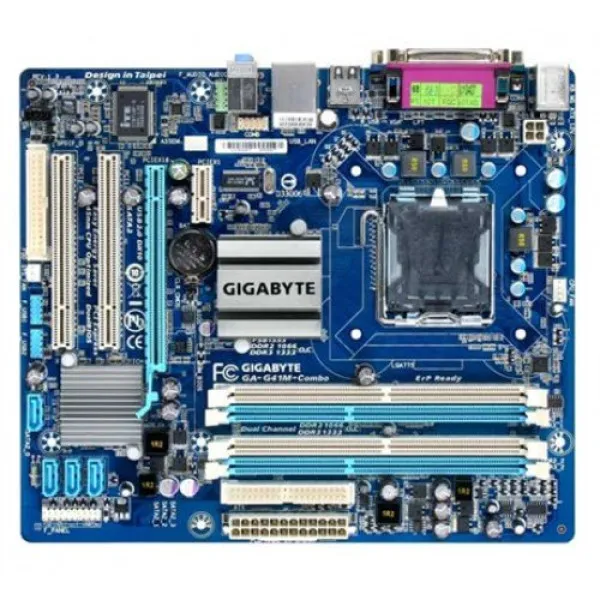

Gigabyte GA G41M Combo Motherboard

Gigabyte GA G41M Combo Motherboard
Gigabyte GA G41M Combo Motherboard
01715143685
Gigabyte GA G41M Combo Motherboard
Gigabyte GA G41M Combo Motherboard
Gigabyte GA G41M Combo Motherboard
Call # 01715143685
7 Days Replacement Warranty, Delivery After 3 to 7 Working Day. 60-Day Buyer Protection Money back guarantee.
  • Availability: 01715143685
  • Brand Gigabyte
  • Model Gigabyte GA-G41M-Combo Motherboard
  • Weight: 0.00kg
  • SKU: 786
  • MPN: 5000
Products Sold: 0
Product Views: 15
৳5,000.00
Ex Tax: ৳5,000.00

Basic Information

Supported CPU - Support for an Intel Core 2 Extreme processor/ Intel Core 2 Quad processor/Intel Core 2 Duo processor/ Intel Pentium processor/Intel Celeron processor in the LGA775 package (Go to GIGABYTE's website for the latest CPU support list.)

- L2 cache varies with CPU

Chipset North Bridge: Intel G41 Chipset

BIOS - Use of licensed AWARD BIOS

- Support for DualBIOS

- PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

- Support for BIOS

- Support for Xpress BIOS Rescue

Form Factor Micro ATX Form Factor; 24.4cm x 21.0cm

Expansion Slots

PCI 1 x PCI Express x16 slot, running at x16

1 x PCI Express x1 slot

2 x PCI slots

Memory

Type DDR3, DDR2:

Graphics

Max Shared Memory DDR3:

2 x 1.5V DDR3 DIMM sockets supporting up to 8 GB of system memory (Note 1)

Dual channel memory architecture

Support for DDR3 1333(O.C.)/1066/800 MHz memory modules

DDR2:

2 x 1.8V DDR2 DIMM sockets supporting up to 8 GB of system memory (Note 1)

Dual channel memory architecture

Support for DDR2 1066(O.C.)/800/667 MHz memory modules

(Note: Mixed mode, populating DDR2 and DDR3 memory modules simulta- neously is not supported. Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)

Connector & Ports

USB (s) USB 2.0 Ports 4

Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers)

2 x USB 2.0/1.1 headers

4 x USB 2.0/1.1 ports

LAN Port (s) 1 x Atheros AR8151 chip (10/100/1000 Mbit)

Supported Storage 1 x IDE connector supporting ATA-100/66/33 and up to 2 IDE devices

4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices

iTE IT8718F chip:

1 x floppy disk drive connector supporting up to 1 floppy disk drive

Audio High Definition Audio

1 x front panel audio header

3 x audio jacks (Line In/Line Out/Microphone)

Internal I/O Ports I/O Controller : iTE IT8718F

1 x 24-pin ATX main power connector

1 x 4-pin ATX 12V power connector

1 x floppy disk drive connector

1 x IDE connector

4 x SATA 3Gb/s connectors

1 x CPU fan header

1 x system fan header

1 x front panel header

1 x front panel audio header

1 x CD In connector

1 x S/PDIF Out header

2 x USB 2.0/1.1 headers

1 x serial port header

1 x clearing CMOS jumper

D-Sub (s) 1 x D-Sub port

Warranty Information

Manufacturing Warranty 3 Years
