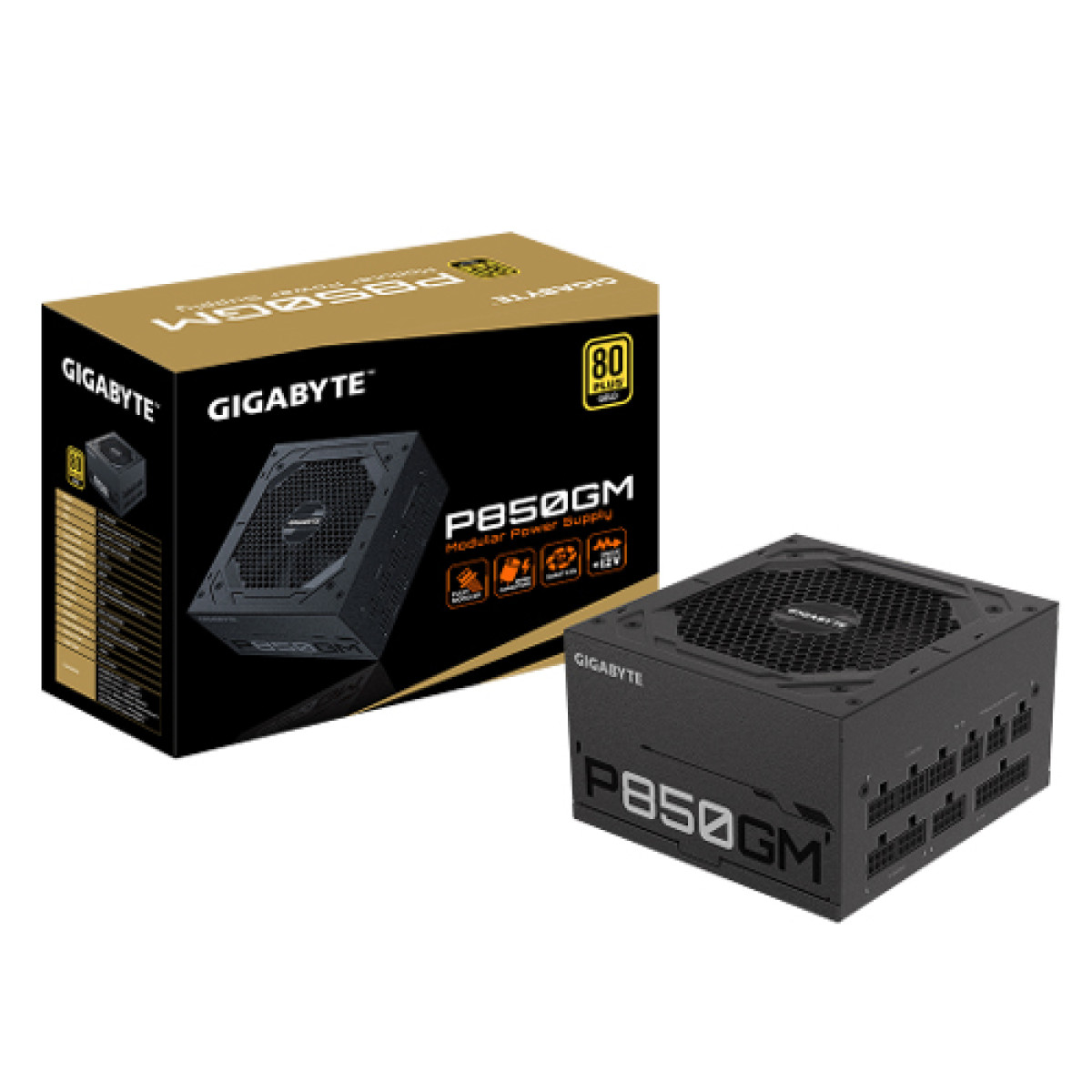

Gigabyte P850GM 850 Watt 80+ Gold Certified Power Supply
Key highlights
- Efficiency (Approx.): 90% at typical load
- Fan Size: 120mm Hydraulic Bearing ( HYB ) fan
- CPU: CPU/EPS 4+4 Pin x 2 : 600mm*2
- Certification: 80 PLUS Gold
- Main Power : ATX/MB 20+4 Pin x 1 : 610mm*1
Description
Reliable Gigabyte 850W Power Supply for High-Performance PC
Gigabyte P850GM 850 Watt Power Supply Overview
Unleash the true potential of your gaming or workstation rig with the Gigabyte P850GM 850 Watt 80+ Gold Certified Power Supply. This high-performance PSU is engineered to deliver reliable power, ensuring your components operate at peak efficiency. With an 80+ Gold certification, it guarantees up to 90% efficiency under typical loads, reducing energy waste and lowering your electricity bills.
The P850GM features a fully modular design, allowing users to manage cables effortlessly and enhance airflow within the case. This not only improves the overall aesthetics of your build but also contributes to better cooling performance. The advanced thermal management system keeps the PSU operating silently, even under heavy loads, thanks to its 120mm hydraulic bearing fan.
Compatibility is key, and the P850GM supports a wide range of motherboards and graphics cards, making it a versatile choice for any PC build. With a robust array of connectors, including multiple PCIe and SATA options, it caters to both standard and high-end gaming setups.
Investing in the Gigabyte P850GM means investing in durability and safety, as it comes equipped with a suite of protection features to guard against over-voltage, short circuits, and overheating. Enjoy peace of mind with a generous 5-year warranty, showcasing Gigabyte’s commitment to quality.
Efficient Power Supply with 80+ Gold Certification
Specification
| BASIC INFORMATION | |
|---|---|
| Efficiency (Approx.) | 90% at typical load |
| Fan Size | 120mm Hydraulic Bearing ( HYB ) fan |
| CPU | CPU/EPS 4+4 Pin x 2 : 600mm*2 |
| Certification | 80 PLUS Gold |
| Connectivity | |
| Main Power | ATX/MB 20+4 Pin x 1 : 610mm*1 |
| PCI-E | PCI-e 6+2 Pin x 4 : 600mm+150mm*2 |
| SATA | SATA x 8 : 600mm+150mm+150mm+150mm*2 |
| Power | |
| Current | 12-6 A |
| Frequency Range | 60-50 Hz |
| Modular Type | Fully Modular |
| Total Power | 850Watt |
| Voltage | 100-240 Vac (full range) |
| WARRANTY | |
| Manufacturing Warranty | 2 Years |
