Basic Information
Supported CPU Support for 9th and 8th Generation intel® Core™ i9 processors/ intel® Core™ i7 processors/ intel® Core™ i5 processors/ intel® Core™ i3 processors/ intel® Pentium® processors/ intel® Celeron® processors in the LGA1151 package
L3 cache varies with CPU
Chipset intel® Z390 Express Chipset
BIOS 2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Expansion Slots
PCI 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x8 (PCIEX8)
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
* The PCIEX4 slot shares bandwidth with the M2P connector. The PCIEX4 slot operates at up to x2 mode when a PCIe SSD is installed in the M2P connector.
3 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
1 x M.2 Socket 1 connector for an intel® CNVi wireless module (CNVI)
M.2 Socket 3 x M.2 Socket 3 connectors
Memory
Type 4 x DDR4 DIMM sockets
Slots Dual channel memory architecture
Supported Memory Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Mamory 64 GB
Graphics
Graphics Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies
Support for AMD Quad-GPU CrossFire™ and 3-Way/2-Way AMD CrossFire™ technologies
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.2.
Max Shared Memory 1 GB
Connector & Ports
HDMI 1 x HDMI
USB (s) 1 x USB Type-C™ port, with USB 3.1 Gen 2 support
3 x USB 3.1 Gen 2 Type-A ports (red)
2 x USB 3.1 Gen 1 ports
4 x USB 2.0/1.1 ports
LAN Port (s) intel® GbE LAN chip (10/100/1000 Mbit)
Supported Storage 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) (M2P)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "1-9 Internal Connectors," for the installation notices for the PCIEX4, M.2 and SATA connectors.
Audio 1 x front panel audio header
Internal I/O Ports 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x system fan/water cooling pump headers
2 x Addressable LED strip headers
2 x Addressable LED strip power select jumpers
2 x RGB LED strip headers
3 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C™ port, with USB 3.1 Gen 2 support
1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Thunderbolt™ add-in card connector
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x OC button
1 x reset button
2 x temperature sensor headers
2 x BIOS switches
1 x Clear CMOS jumper
Voltage Measurement Points
Warranty Information
Manufacturing Warranty 03 Years
Description:
Description:

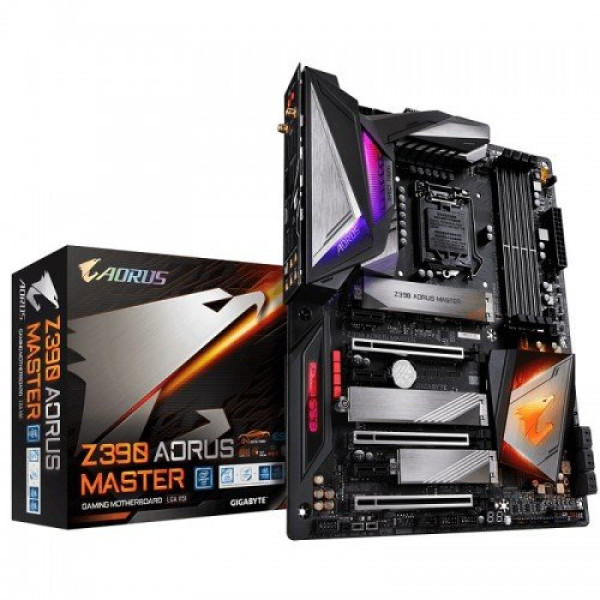

Upgrade your gaming experience with the Gigabyte Z390 Aorus Master 9th Gen Motherboard, now available at Unix Network in Jashore, Bangladesh. This high-performance motherboard is designed to enhance your gaming setup with its advanced features, including support for 9th Gen Intel Core processors, RGB Fusion lighting, and dual M.2 slots for lightning-fast storage. With cutting-edge technology and superior build quality, the Gigabyte Z390 Aorus Master is the perfect choice for gamers looking to take their system to the next level. Visit Unix Network today and bring home the ultimate gaming motherboard.
