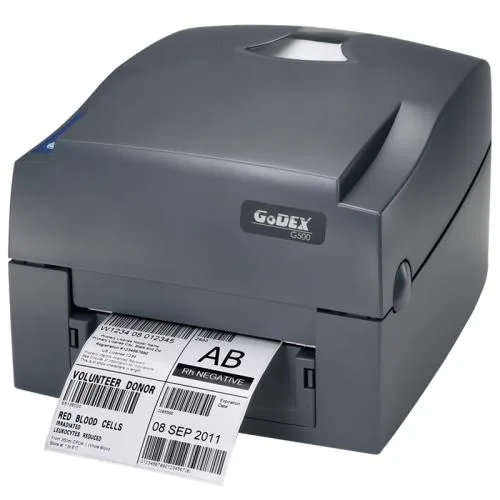

Name: GoDEX G500 Thermal Transfer Label Printer
Brand: GoDEX
SKU: GoDEX G500 Thermal Transfer Label Printer
Price: 28000 BDT
Availability: InStock

Specification

BASIC INFORMATION
Functions	Thermal Transfer / Direct Thermal
Others	Sensor Type: Adjustable reflective sensor. Fixed transmissive sensor, central aligned Media: Types: Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming Width: 1” (25.4 mm) Min. - 4.64” (118 mm) Max. Thickness: 0.0024” (0.06 mm) Min. - 0.01” (0.25 mm) Max. Label roll diameter: Max. 5” (127 mm) Core diameter: 1”, 1.5”, 3" (25.4 mm, 38.1 mm, 76.2 mm) Resident Fonts Bitmap fonts: 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable Bitmap fonts 8 times expandable in horizontal and vertical directions TTF fonts：TTF Fonts (Bold / Italic / Underline ). 0°,90°, 180°, 270° rotatable Download Fonts: Bitmap fonts: 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable Asian fonts: 16x16, 24x24. Traditional Chinese (BIG-5), Simplified Chinese(GB2312), Japanese (S-JIS), Korean (KS-X1001)90∘,180∘,270∘, rotatable and 8 times expandable in horizontal and vertical directions TTF fonts:TTF Fonts (Bold / Italic / Underline ). 0°,90°, 180°, 270° rotatable Barcodes: 1-D Bar codes: Code 39, Code 93, EAN-8, EAN-13, EAN 8/13 (with 2 & 5 digits extension), UPC-A, UPC-E, UPC-A and UPC-E with EAN 2 or 5 digit extension, Interleaved 2-of-5 (I 2 of 5), Interleaved 2- o-f 5 with Shipping Bearer Bars, Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC/EAN-128 K-Mart, Random Weight, Postnet, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM, GS1 DataBar, German Post Code, Planet 11 & 13 digit, Japanese Postnet, Standard 2 of 5, Industrial 2 of 5 , Logmars, Code 11, ISBT -128, Code 32 2-D Bar codes: PDF417, Datamatrix code, MaxiCode, QR code, Micro PDF417, Micro QR code and Aztec code, Code 49, Codablock F , TLC 39 Code Pages: CODEPAGE 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737 WINDOWS 1250, 1251, 1252, 1253, 1254, 1255, 1257 Unicode UTF8, UTF16BE, UTF16LE Graphics: Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software
Printer Type	Label Printer
Processor	32 Bit RISC CPU
Software	Label design software: GoLabel (for EZPL only) Driver: MAC、 Linux、Windows 2000, XP, Vista, Windows 7, 8.1 and 10 , Windows Server 2003 & 2008 DLL: Win CE , .NET , Windows Mobile, Windows 2000 / XP / VISTA / Windows 7 / Windows 8.1 / Android
Technology	Twin-Sensor Technology
Toner/ Cartridge/ Refill	Ribbon: Types: Wax, wax/resin, resin Length: 981’ (300 m) Width: 1.18” Min - 4.33” (30 mm - 110 mm) Max Ribbon roll diameter.: 2.67“ (68 mm) Core diameter: 1” (25.4 mm)
Memory	8MB Flash (4MB for user storage) / 16MB SDRAM
PHYSICAL SPECIFICATION
Weight	5.51 lbs (2.5 Kg), excluding consumables
Physical Specification
Color	Black
Printing Features
Connectivity	USB + Parallel Port USB + Serial Port + Ethernet
Print Resolution	203 dpi (8 dots/mm)
Print Speed	5IPS (127 mm/s)

Description

The GoDEX Thermal Transfer is designed for heavy-duty retail and industrial applications, utilizing its unique "Twin-Sensor Technology" to accommodate a wide range of specialist materials. With its 300-meter ribbon capacity and optional label stand, this printer enhances printing volume efficiency and allows broad label usage. Compatibility with a wide range of systems is ensured by the GoDEX G500 Label Printer's numerous interface options, which include USB2.0, Serial, and Ethernet or USB2.0 and Parallel.

Its robust and steady mechanism, which was engineered for a lifetime, supports its dependability. The Thermal Transfer Label Printer produces sharply at a rate of 5 inches per second, with a resolution of 203 dpi. It can cover a print width of 4.25 inches and a length range of 0.16 to 68 inches. It has a 16MB SDRAM, 8MB Flash (4MB user storage), and a 32-bit RISC CPU.

Precise media handling is enabled by the fixed transmissive and adjustable reflective sensors, which support punched hole labels, gap labels, continuous form, and black mark detection. The maximum label roll diameter is 5 inches, and the media widths vary from 1 to 4.64 inches with thicknesses ranging from 0.0024 to 0.01 inches. Wax, wax/resin, and resin ribbons come in lengths of 981 feet and widths ranging from 1.18 to 4.33 inches.

The GoDEX G500 Thermal Transfer Label Printer is compatible with Windows, Mac OS X, and Linux and runs on the EZPL, GEPL, and GZPL programming languages. Bitmap and TTF font selections are available, along with a wide range of rotatable and extensible features. Many 1-D and 2-D barcodes are supported, and BMP and PCX files are included in the graphic support.

Flexible connectivity is offered by the GoDEX G500 Thermal Transfer Label Printer, which has ports for USB and Parallel or USB, Serial, and Ethernet. The printer is powered by an auto-switching 100-240VAC, 50-60Hz supply, and the control panel has bi-color status LEDs and a FEED button. In Bangladesh, you can get original From Unix Network. We have a large collection of latest to purchase.

Order Online Or Visit your Nearest to get yours at lowest price. The GoDEX G500 Thermal Transfer Label Printer comes with 1 Year warranty.
