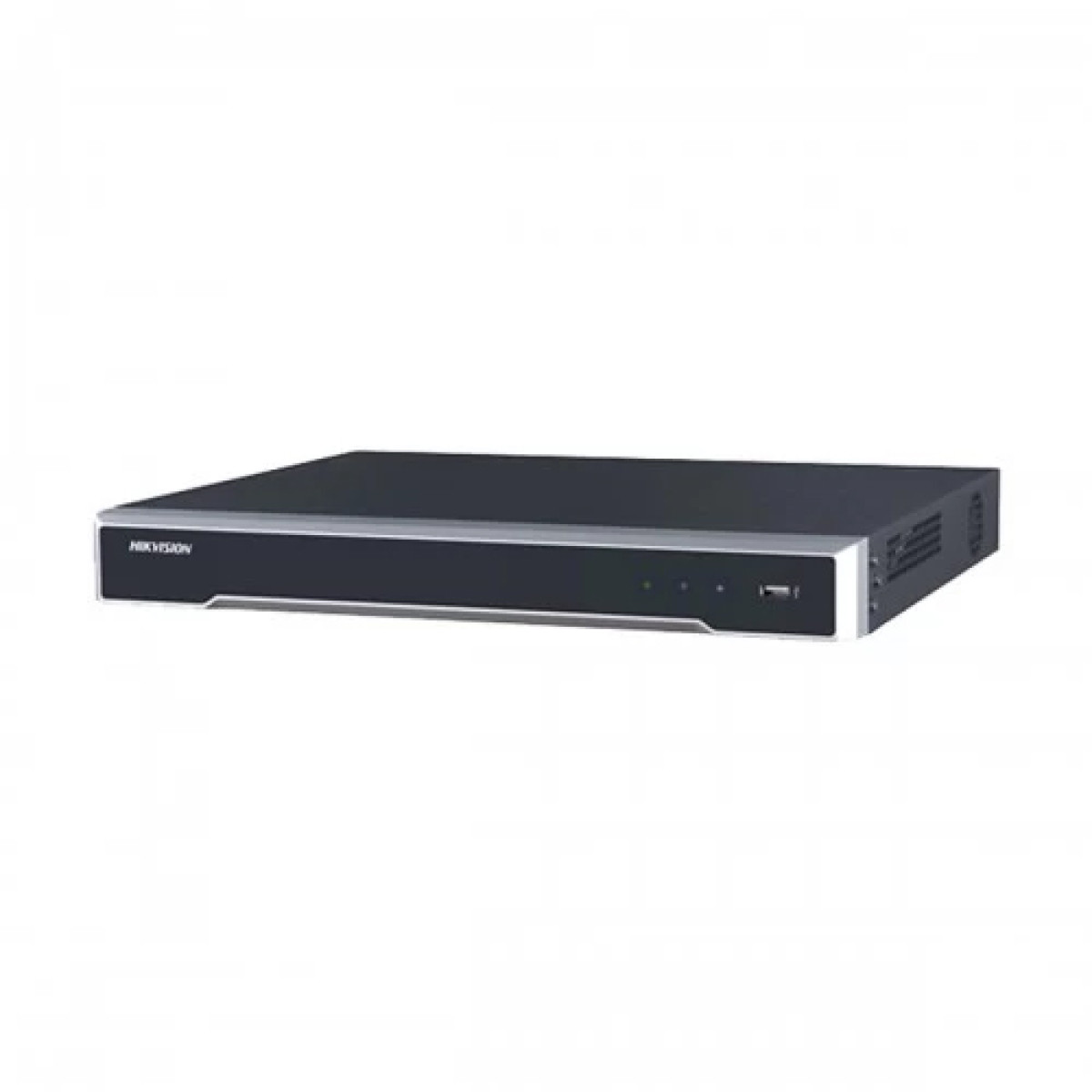

Hikvision DS-7608NI-Q2 8 Channel 1U 4K NVR

Hikvision DS-7608NI-Q2 8-Channel 1U 4K Network Video Recorder

The Hikvision DS-7608NI-Q2 8-Channel 1U 4K NVR is a network video recorder designed for IP-based CCTV surveillance systems in homes, offices, retail shops, warehouses and commercial properties. Supporting up to eight IP camera channels, this NVR provides centralised video recording, live monitoring and playback through a compact standalone security recording system. With support for high-resolution IP cameras, H.265+ video compression and dual SATA hard drive connections, it offers a practical solution for businesses and property owners who need organised security footage management.

The Hikvision DS-7608NI-Q2 combines 4K HDMI display output, remote access through Hik-Connect and configurable recording functions in a compact 1U chassis. Its 80 Mbps incoming bandwidth specification supports multiple network cameras within the recorder's overall performance limits. Whether upgrading an existing CCTV installation or building a new IP camera system, this Hikvision NVR provides useful features for everyday surveillance management.

8-Channel IP Camera Recording for CCTV Surveillance

The Hikvision DS-7608NI-Q2 supports up to eight IP camera channels, allowing users to connect and manage multiple compatible network cameras through one recording device. This makes it suitable for monitoring entrances, corridors, reception areas, shops, offices and other important locations.

With centralised camera management, users can view live footage, configure recording schedules and review stored video from a single interface. An eight-channel system is particularly useful for small and medium-sized properties that require several camera viewpoints.

The total number of cameras, recording resolution and frame rate must remain within the NVR's supported decoding and bandwidth limits.

Supports Up to 8MP and 4KIP CameraResolution

The Hikvision DS-7608NI-Q2 is described with support for compatible IP cameras with resolutions up to 8 megapixels, commonly associated with 4K Ultra HD surveillance video.

High-resolution cameras can capture greater image detail than lower-resolution alternatives, helping users review scenes containing people, vehicles, entrances and other important areas.

Actual recording quality depends on the connected camera's sensor, lens, lighting conditions, video settings and available bandwidth. The NVR does not increase the native resolution of a connected camera.

4K HDMI Output for High-Resolution Monitoring

The Hikvision DS-7608NI-Q2 features an HDMI display connection supporting up to 3840 × 2160 resolution, allowing compatible 4K monitors and televisions to display surveillance footage at Ultra HD output resolution.

This is useful for security monitoring stations, offices and businesses that want a detailed overview of their camera feeds on a large display.

Display output resolution and simultaneous video decoding capability are separate specifications. The number of high-resolution camera streams that can be displayed smoothly at once depends on the NVR's decoding limits and selected display layout.

VGA Output for Conventional CCTV Monitors

Alongside HDMI connectivity, the Hikvision DS-7608NI-Q2 provides a VGA display interface for compatible monitors.

This offers flexibility when installing the NVR in locations where an existing VGA monitor is already available. Users can select a suitable display connection according to their monitoring equipment and installation requirements.

Supported output resolutions and simultaneous HDMI/VGA display behaviour should be checked against the exact hardware version and firmware specifications.

80 Mbps Incoming Bandwidth for Network Cameras

The Hikvision DS-7608NI-Q2 is specified with an incoming bandwidth capacity of up to 80 Mbps. This represents the total incoming video data rate the recorder can handle from connected IP cameras under supported operating conditions.

Incoming bandwidth is particularly important when several cameras are recording at high resolution or high frame rates. Camera bitrate settings must be planned so that the combined video streams remain within the recorder's capacity.

For example, eight cameras configured at 8 Mbps each would generate approximately 64 Mbps of incoming video traffic, leaving some capacity within an 80 Mbps limit. Actual system planning should also consider the recorder's other performance specifications.

H.265+ Video Compression for Efficient Storage

The Hikvision DS-7608NI-Q2 supports H.265+ video compression with compatible Hikvision cameras and configurations. This technology is designed to reduce video bitrate and storage requirements compared with less efficient encoding methods.

H.265+ can be particularly useful for CCTV systems that record continuously or retain footage for extended periods. By reducing unnecessary video data in suitable scenes, it can help users make more effective use of available hard drive capacity.

Actual storage savings depend on scene movement, lighting, camera resolution, frame rate and compression settings. A fixed percentage reduction cannot be guaranteed for every installation.

H.265 and H.264 Video Codec Compatibility

In addition to H.265+, the Hikvision DS-7608NI-Q2 supports common surveillance video compression formats, including H.265 and H.264, subject to camera and firmware compatibility.

These formats allow users to balance image quality, bandwidth usage and storage requirements according to the capabilities of their connected IP cameras.

Choosing an efficient compression mode can reduce recording storage demands, while compatibility with older encoding formats may be useful when integrating existing cameras into a new NVR installation.

Dual SATA Interfaces for CCTV Hard Drive Storage

The Hikvision DS-7608NI-Q2 features two SATA interfaces for installing internal hard disk drives. This provides greater storage flexibility than single-drive recorders and allows users to configure capacity according to their recording requirements.

The supplied specification describes support for up to 8TB per drive, providing a total of up to 16TB across two compatible SATA hard drives. Supported capacities may differ by hardware revision and firmware, so buyers should verify the manufacturer's current compatibility information.

Hard drives may be sold separately. Check the product package contents before ordering.

Extended Video Recording with Surveillance HDDs

Storage capacity directly affects how long recorded CCTV footage can be retained. The Hikvision DS-7608NI-Q2's dual-drive design allows users to install suitable surveillance-grade hard drives according to their camera count and recording settings.

Recording duration depends on the total camera bitrate, daily recording hours, compression format, motion activity and selected retention settings.

For continuous recording systems, surveillance-rated hard drives are generally preferable because they are designed for sustained video recording workloads. Users should calculate their storage needs before selecting drive capacities.

Continuous and Scheduled CCTV Recording

The Hikvision DS-7608NI-Q2 supports configurable recording arrangements that allow users to manage how surveillance footage is stored.

Depending on the camera configuration and firmware, recording can be organised around continuous operation, scheduled periods or supported event triggers.

Continuous recording is useful for locations where complete coverage is required, while scheduled and event-based recording may help reduce unnecessary footage and storage consumption.

Motion Detection Recording and Event Alerts

The Hikvision DS-7608NI-Q2 can work with supported motion detection functions to help identify activity within monitored areas.

Motion-triggered recording and notifications may be useful for entrances, storerooms, offices and other locations where users want to review activity without manually searching through long recordings.

The availability and accuracy of event functions depend on the connected camera, NVR firmware and configuration. Motion detection may also be triggered by lighting changes, moving vegetation or other environmental activity.

Smart VCA Event Support with Compatible Cameras

The Hikvision DS-7608NI-Q2 is described with support for selected Video Content Analysis, or VCA, events provided by compatible cameras.

Depending on the camera model and supported integration, these may include line-crossing detection, intrusion detection and other intelligent event notifications.

Not all connected IP cameras provide these functions, and the NVR should not be assumed to perform every analytic task independently. Buyers should verify the exact VCA capabilities supported by their chosen cameras and recorder firmware.

Hik-Connect Mobile App for Remote CCTV Viewing

The Hikvision DS-7608NI-Q2 supports remote monitoring through the Hik-Connect ecosystem, allowing authorised users to access compatible surveillance functions from supported smartphones and other devices.

With the appropriate network configuration, users can view live camera feeds and access supported playback features while away from the monitored property.

Remote access requires a working internet connection, correct device setup and appropriate account permissions. Available functions may vary by firmware, region and Hik-Connect service configuration.

Remote Playback and Recorded Footage Review

Reviewing recorded video is an important part of any CCTV system. The Hikvision DS-7608NI-Q2 provides playback functions that allow users to locate and inspect footage stored on installed hard drives.

Users can search recordings by date and time, with additional event-based search options available where supported by the camera and recorder configuration.

This makes the NVR useful for reviewing incidents, checking business activity and examining recorded events without manually searching through every hour of footage.

Local Monitoring and Centralised Camera Management

The Hikvision DS-7608NI-Q2 allows users to manage multiple IP camera feeds from one recorder. This simplifies routine CCTV administration for homes, businesses and commercial properties.

Through its local interface, authorised users can configure camera settings, review recordings, manage storage and monitor device status.

Centralised management is especially convenient for installations where several cameras cover different entrances, rooms or operational areas.

Compact 1U Chassis for Flexible Installation

The Hikvision DS-7608NI-Q2 features a compact 1U-style chassis intended for professional surveillance installations.

Its space-efficient construction makes it suitable for placement on a secure desk, equipment shelf or compatible rack installation arrangement.

Before mounting the recorder in a rack, verify its physical dimensions and whether suitable mounting accessories are included. Maintain adequate ventilation around the unit and installed hard drives.

Network Connectivity for IP Camera Systems

The Hikvision DS-7608NI-Q2 operates as part of an Ethernet-based surveillance network. Compatible IP cameras communicate with the recorder through network infrastructure such as switches and routers.

This provides flexibility when designing CCTV systems for offices, shops and buildings where cameras are installed in different locations.

The DS-7608NI-Q2 should not be confused with a PoE-equipped NVR model. Unless the supplied hardware explicitly includes PoE camera ports, compatible IP cameras will require separate power arrangements, such as PoE switches or suitable power adapters.

Compatible IP Cameras and ONVIF Integration

The Hikvision DS-7608NI-Q2 is designed primarily for Hikvision network cameras and may support selected third-party IP cameras through compatible protocols such as ONVIF.

This can provide flexibility for businesses upgrading an existing surveillance system or combining cameras from different manufacturers.

However, third-party compatibility does not guarantee access to every feature. Recording, audio, motion events and intelligent analytics may vary according to camera firmware and supported protocols.

Security Features and User Access Management

Protecting access to surveillance footage is important for both homes and businesses. The Hikvision DS-7608NI-Q2 provides account-based access management functions that can help restrict recorder settings and footage access to authorised users.

For better security, use strong unique passwords, keep firmware updated through trusted sources and disable unnecessary remote services.

Businesses should also limit access to recorded footage according to operational needs and applicable privacy requirements.

Suitable for Home CCTV Security Systems

The Hikvision DS-7608NI-Q2 can be used in residential surveillance installations where multiple IP cameras monitor entrances, gates, driveways and other important areas.

Its eight-channel capacity offers room for several camera viewpoints, while remote monitoring provides convenient access to supported live viewing and playback functions.

For reliable operation, users should choose suitable cameras, plan storage capacity and protect the recorder with an appropriate power backup system where necessary.

Hikvision 8-Channel NVR for Offices and Showrooms

Offices, retail showrooms and service centres often require CCTV coverage across entrances, reception desks, customer areas and storage rooms.

The Hikvision DS-7608NI-Q2 allows up to eight compatible IP cameras to be managed through a single recording system, making it suitable for many small and medium-sized commercial installations.

Its 4K display output and remote monitoring functions provide practical options for reviewing activity and managing daily security operations.

Surveillance Recording for Shops and Retail Businesses

Retail businesses use CCTV systems to monitor customer areas, stockrooms, cash counters and entrances. The Hikvision DS-7608NI-Q2 provides centralised recording and playback capabilities for compatible IP cameras installed across these locations.

With suitable camera placement and recording settings, businesses can maintain footage for operational review and security purposes.

Camera installation should respect applicable privacy requirements, and businesses should clearly communicate surveillance practices where required.

Suitable for Warehouses and Commercial Properties

Warehouses and commercial properties may need surveillance coverage across loading areas, storage zones, corridors and access points.

The Hikvision DS-7608NI-Q2 can support an eight-camera IP surveillance arrangement where the total camera bitrate and resolution requirements remain within the recorder's specifications.

For larger facilities or installations requiring more than eight cameras, a higher-channel NVR may be a more appropriate choice.

Recording Storage Planning for Eight IP Cameras

Before installing CCTV hard drives, it is important to estimate how much footage the system will generate. Storage requirements increase with camera resolution, frame rate, recording hours and video bitrate.

For example, eight cameras recording continuously at an average bitrate of 4 Mbps each generate approximately 346GB of video data per day before accounting for filesystem and recording overhead. Actual storage consumption will vary with the camera settings and compression efficiency.

Users should calculate their desired retention period and select compatible hard drive capacities accordingly.

Choosing Between 4MP, 5MP and 8MP IP Cameras

The Hikvision DS-7608NI-Q2 can be used with compatible cameras offering different resolutions, allowing users to balance image detail, bandwidth and storage requirements.

Lower-resolution cameras may be suitable for general area monitoring, while higher-resolution cameras can provide additional detail where the camera optics, placement and lighting conditions support it.

Using 8MP cameras does not automatically guarantee better identification in every situation. Lens selection, viewing distance, illumination and camera positioning are equally important.

What to Check Before Buying Hikvision DS-7608NI-Q2

Before purchasing the Hikvision DS-7608NI-Q2 8-Channel NVR, confirm the exact hardware revision, supported camera resolutions, incoming bandwidth, decoding capability and maximum supported hard drive capacity.

Buyers should also verify the available network interfaces, video outputs, supported video codecs and compatibility with their selected IP cameras.

Check whether hard drives, camera power supplies, network switches, mounting accessories and other installation components are included or must be purchased separately.

Hikvision DS-7608NI-Q2 8-Channel NVR Price in Bangladesh

Looking for the Hikvision DS-7608NI-Q2 8-Channel 1U 4K NVR price in Bangladesh? This network video recorder combines eight-channel IP camera support, high-resolution video output, H.265+ compression and dual SATA storage connectivity for home and business surveillance systems.

Contact Unix Network or visit unixnetworkbd.com to check the latest Hikvision DS-7608NI-Q2 price in Bangladesh, current stock availability and applicable warranty information. Prices may vary depending on supplier availability, hardware revision and whether a hard drive is included.

Buy Hikvision DS-7608NI-Q2 4K NVR from Unix Network in Jashore

Build or upgrade your IP camera surveillance system with the Hikvision DS-7608NI-Q2 8-Channel 1U 4K Network Video Recorder from Unix Network in Jashore. Whether you need CCTV recording for a home, office, retail shop, showroom or commercial property, this NVR offers useful recording, storage and remote monitoring capabilities.

Visit Unix Network in Jashore or browse unixnetworkbd.com for current prices, product details and ordering options. Customers in Khulna, Jhenaidah, Magura, Narail, Satkhira and other parts of Bangladesh can also contact Unix Network to enquire about delivery, compatible Hikvision IP cameras, surveillance hard drives and networking accessories.
