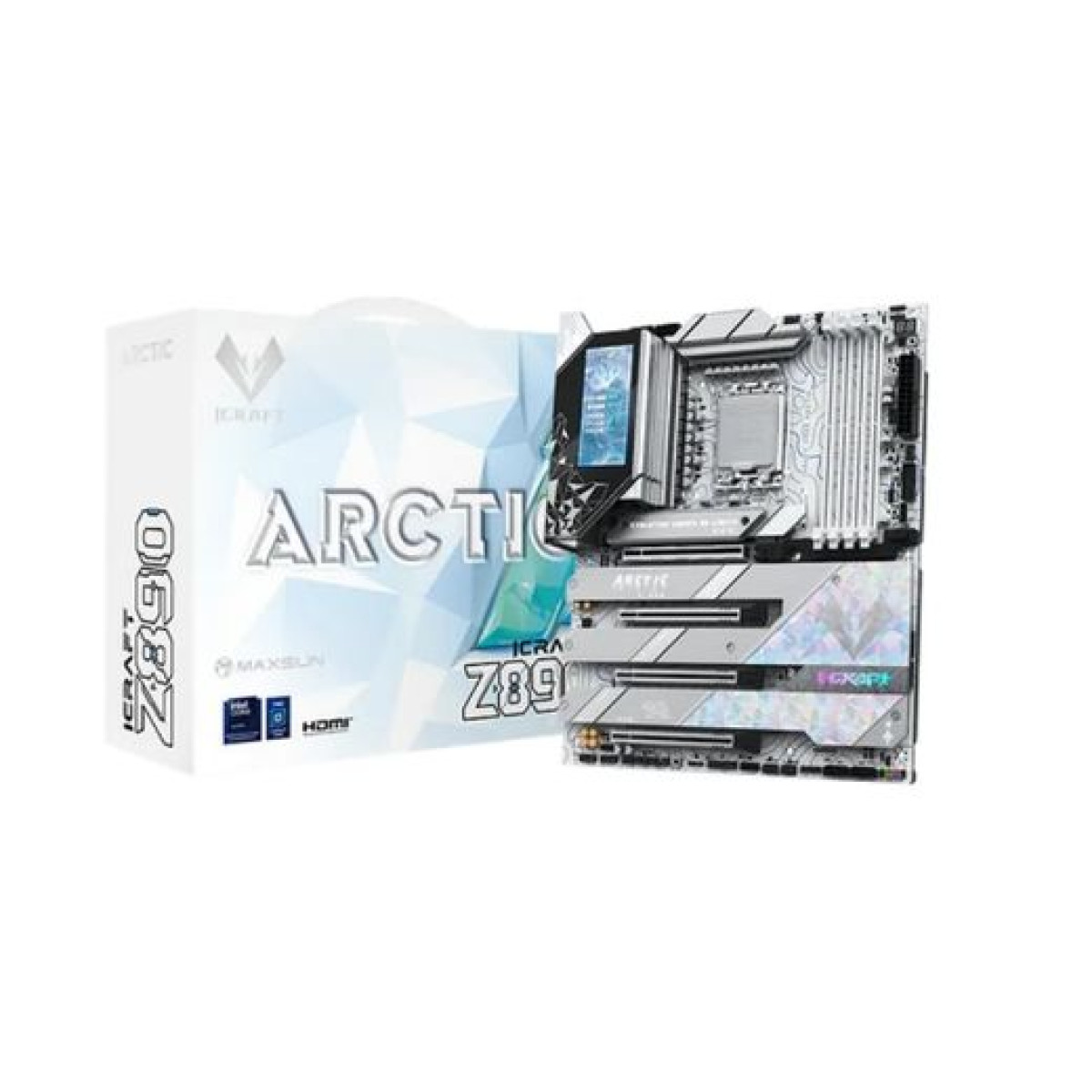

Maxsun iCraft Z890 Arctic Intel Motherboard
Key highlights
- OS: Windows® 11 and Windows® 10 (64-bit)
- Other Features: 1 × 24-pin ATX Power Connector; 2 × 8-pin +12V Power Connectors; 2 × 3-Pin ARGB Headers; 1 × 4-Pin NRBG Header; 1 × COM Port Header; 1 × CLR_CMOS Reset Button; 1 × 4-Pin CPU Fan Header; 1 × 4-Pin PUMP Header (supports DC and PWM modes); 4 × 4-Pin System Fan Headers
- Supported System: Intel® LGA1851 socket, compatible with Intel® Core™ Ultra processors
- Brand: Maxsun
- Chipset: Intel® Z890 Chipset
Description
Dominate the next generation of computing with the Maxsun MS-iCraft Z890 Arctic Intel Motherboard. This board is designed for the revolutionary LGA1851 socket, offering full compatibility with the latest Intel Core Ultra processors. Featuring a stunning Arctic-white aesthetic and heavy-duty heatsinks, the iCraft Z890 Arctic is built for enthusiasts who refuse to compromise on either style or raw power.
Elite Performance Features:
Next-Gen Memory Support: 4 × DIMM DDR5 slots supporting a massive 256GB capacity and extreme overclocking speeds up to 8800MHz+(OC).
Ultimate Storage Speed: Features 4 × M.2 slots, including a PCIe 5.0 x4 slot for the fastest NVMe SSDs available today, plus three PCIe 4.0 slots for massive storage expansion.
Future-Proof Networking: Stay ahead with integrated Wi-Fi 7 and Bluetooth 5.4 through the Intel BE200 module, alongside a high-speed Realtek RTL8126 network chip for lag-free online gaming.
Extreme Connectivity: The rear panel features dual USB 40G Type-C ports, providing lightning-fast data transfer and 15W charging support for your devices.
Professional Grade Audio: Integrated Realtek ALC1220 audio chip delivers crystal-clear sound for an immersive gaming and media experience.
Robust Power Design: Equipped with 24-pin ATX and dual 8-pin +12V power connectors to provide stable, clean energy to your high-end CPU under heavy overclocking loads.
Aesthetic & Thermal Control: The "Arctic" design isn't just for looks—the expansive cooling armor ensures your VRMs and M.2 drives stay cool under pressure. With multiple 4-Pin fan and PUMP headers, plus ARGB/NRBG headers, you have total control over your system’s cooling and lighting.
(Technical Specifications)
| Feature | Specification |
| Chipset | Intel® Z890 Chipset |
| CPU Socket | Intel® LGA1851 (Core™ Ultra Processors) |
| Memory | 4 x DDR5 (Up to 256GB), Max 8800MHz (OC) |
| Expansion | 1 x PCIe 5.0 x16, 1 x PCIe 5.0 x8/x4, 2 x PCIe 4.0 x4 |
| Storage | 1 x M.2 PCIe 5.0, 3 x M.2 PCIe 4.0, 4 x SATA 6Gb/s |
| Wireless | Intel Wi-Fi 7 + Bluetooth 5.4 |
| USB | 2 x USB 40G Type-C (Rear), 1 x USB 20G Type-C (Front) |
| Display | HDMI 2.1 (4K@120Hz), DP 1.4 (8K@120Hz) |
| Warranty | 3 Years |
Specification
| BASIC INFORMATION | |
|---|---|
| OS | Windows® 11 and Windows® 10 (64-bit) |
| Other Features | 1 × 24-pin ATX Power Connector; 2 × 8-pin +12V Power Connectors; 2 × 3-Pin ARGB Headers; 1 × 4-Pin NRBG Header; 1 × COM Port Header; 1 × CLR_CMOS Reset Button; 1 × 4-Pin CPU Fan Header; 1 × 4-Pin PUMP Header (supports DC and PWM modes); 4 × 4-Pin System Fan Headers |
| Supported System | Intel® LGA1851 socket, compatible with Intel® Core™ Ultra processors |
| Brand | Maxsun |
| Chipset | Intel® Z890 Chipset |
| Model | MS-iCraft Z890 Arctic |
| Memory | 4 × DIMM DDR5 slots, supporting up to 256GB; Dual-channel memory support; XMP Support: 4800/5600/6400/7600/OC/8000(OC)/8200(OC)/8400(OC)/8600(OC)/8800(OC) MHz |
| Network & Wireless Connectivity | Integrated Realtek RTL8126 network chip; Integrated Intel® BE200 Wi-Fi module, supporting Wi-Fi 7 and Bluetooth 5.4 |
| Storage | 1 × M.2 slot, supporting PCIe 5.0 x4/x2 mode, compatible with 2242/2280/2280K lengths; 3 × M.2 slots, supporting PCIe 4.0 x4/x2 mode, compatible with 2242/2280/22110 lengths; 4 × SATA 6Gb/s ports |
| Audio | Integrated Realtek ALC1220 audio chip |
| Connectivity | |
| USB | Front Panel USB: 1 × USB 20G Type-C® header; 1 × USB 5G 19-pin header, supporting 3 × USB 5G ports (USB 3.2 Gen 1); 1 × USB 2.0 9-pin header, supporting 2 × USB 2.0 ports; Rear Panel USB: 2 × USB 40G Type-C® ports (one supporting 15W charging); 9 × USB 10G Type-A ports |
| External Features | |
| Expansion Slots | 1 × PCIe 5.0 x16 slot (configurable as x8/x8, x8/x4, x4/x4); 1 × PCIe x16 slot (physical size x16, supports PCIe 5.0 x8 or PCIe 4.0 x4); 2 × PCIe x16 slots (supporting PCIe 4.0 x4) |
| PORTS, CONNECTORS & SLOTS | |
| HDMI Port | 1 × HDMI™ 2.1, supporting up to 4K at 120Hz; 1 × DP1.4, supporting up to 8K at 120Hz |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
