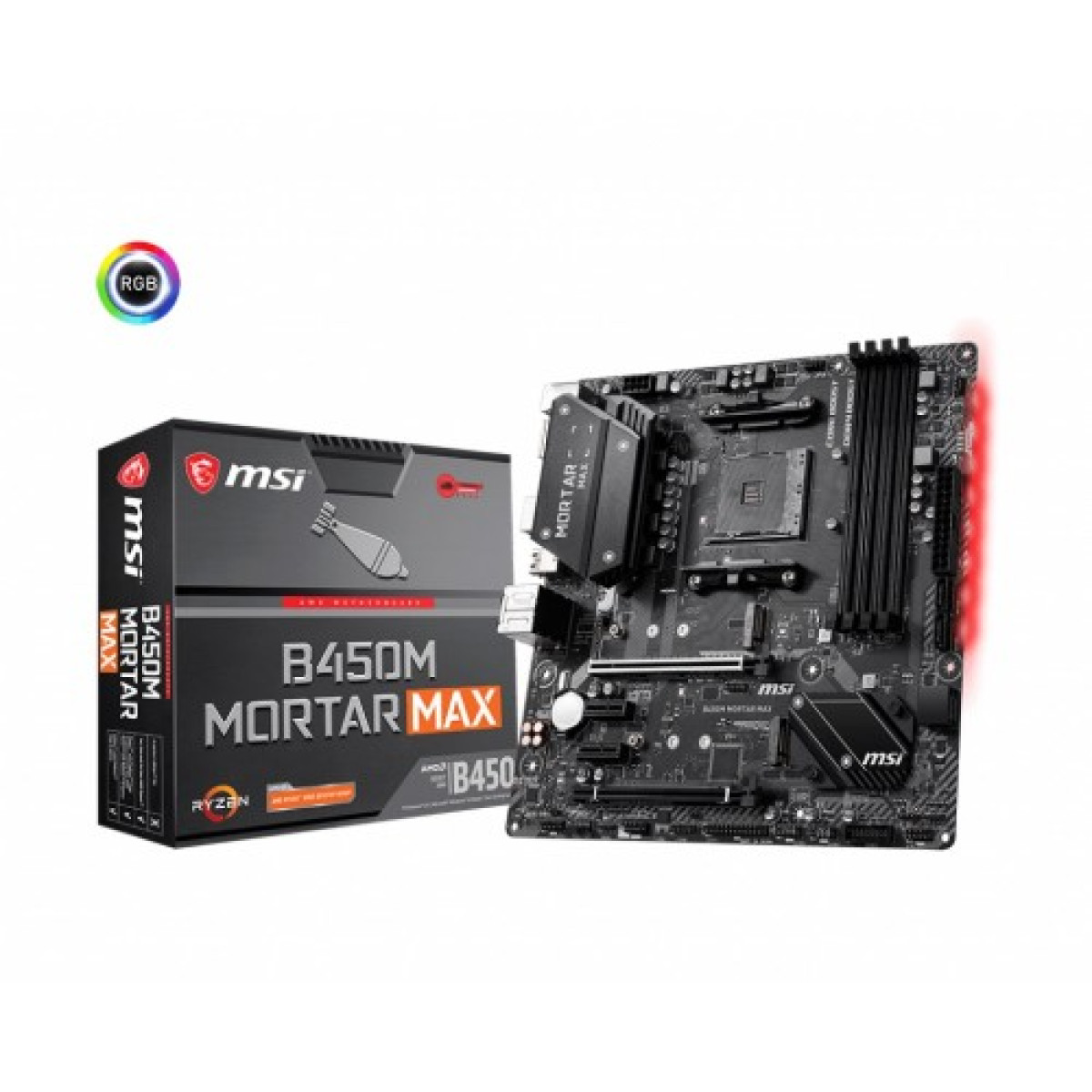

MSI B450M MORTAR MAX Military Style AMD M-ATX Gaming Motherboard (Global)
- Brand:MSI
- Product Code: B450M MORTAR MAX Military Style
- Availability:Out of Stock
- Updated:
Specification
| BASIC INFORMATION | |
| Form Factor | M-ATX Form Factor |
|---|---|
| Graphics | Only support when using AMD Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Processors |
| SpecialFeatures | RAID: AMD B450 Chipset - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices - Supports RAID 0 and RAID 1 for M.2 NVMe RAID |
| Supported CPU | Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4 |
| Chipset | AMD B450 Chipset |
| Audio | Realtek ALC892 Code: - 7.1-Channel High Definition Audio - Supports S/PDIF output |
| BIOS | Flash BIOS Button |
| Graphics Specifications | |
| Max Shared Memory | Maximum shared memory of 2048 MB |
| Memory Specifications | |
| Maximum Memory | - support up to 64GB |
| Supported Memory | - Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC) - Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC) - Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE) - Supports non-ECC UDIMM memory - Supports ECC UDIMM memory (non-ECC mode) |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1 x DisplayPort, support a maximum resolution of 4096x2304 @60Hz, 2560x1600 @60Hz, 3840x2160 @60Hz, 1920x1200 @60Hz |
| HDMI | 1 x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz |
| Internal I/O Ports | 1 x 24-pin ATX 12V power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1 x USB 3.2 Gen1 connector (support additional 2 USB 3.2 Gen1 ports) 1 x 4-pin CPU fan connector 3 x 4-pin system fan connectors 2 x 5050 RGB LED strip 12V connectors 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 1 x Serial Port connector 1 x Parallel Port connector |
| LAN Port (s) | 1 x Realtek RTL8111H-CG Gigabit LAN controller |
| TPM (Trusted Platform Module ) | 1 x TPM module connector |
| USB (s) | AMD B450 Chipset: - 1 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel - 1 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel - 2 x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector - 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) AMD CPU AMD Processor: - 4 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel |
| WARRANTY | |
| Manufacturing Warranty | 03 Years Warranty |
Description
Unleash Your Gaming Potential with the MSI B450M MORTAR MAX Motherboard
The MSI B450M MORTAR MAX Military Style AMD M-ATX Gaming Motherboard is engineered for gamers and PC builders who demand the best in performance and durability. Its military-inspired design not only reflects a robust aesthetic but also signifies the quality and reliability that MSI products are known for. Whether you’re building a new rig or upgrading an existing one, this motherboard is your gateway to an immersive gaming experience.
One of the standout features of the MSI B450M MORTAR MAX is its support for AMD Ryzen processors, allowing you to harness the power of multi-core performance for smooth gaming and multitasking. With its AM4 socket, this motherboard is compatible with a wide range of Ryzen CPUs, making it an ideal choice for gamers looking to future-proof their systems.
Memory capabilities are equally impressive, supporting up to 64GB of DDR4 RAM at speeds of 3466 MHz (OC), ensuring that you can push your system to its limits without sacrificing performance. This is particularly beneficial for gamers who utilize memory-intensive applications, such as video editing software or rendering programs alongside gaming.
Another significant advantage of the MSI B450M MORTAR MAX is its advanced cooling solutions. The motherboard features an optimized thermal design with dedicated heatsinks and fan headers, allowing for efficient heat dissipation during extended gaming sessions. This not only prolongs the lifespan of your components but also enhances overall system stability.
Furthermore, the motherboard comes equipped with multiple M.2 slots that support NVMe SSDs, enabling lightning-fast load times and system responsiveness. This means you can say goodbye to long loading screens and hello to seamless gameplay. The RAID support also adds an extra layer of data security and performance boost for those looking to enhance their storage capabilities.
The MSI B450M MORTAR MAX is not just about performance; it also incorporates RGB lighting that can be customized through MSI's Mystic Light software, allowing you to create a personalized gaming atmosphere. This feature is particularly appealing to gamers in Bangladesh, where aesthetics and performance go hand-in-hand.
In conclusion, the MSI B450M MORTAR MAX Military Style Motherboard offers unparalleled performance, cutting-edge technology, and a robust build quality that is essential for any serious gamer. With its competitive pricing and superior features, it stands out as a premier choice for gamers looking to enhance their PC gaming setup in Jashore and beyond.
MSI B450M MORTAR MAX | The Ultimate Powerhouse for Mid-Range Gaming
The MSI B450M MORTAR MAX is more than just a motherboard; it’s a battle-tested foundation for your PC.Known across Bangladesh for its legendary "Military Style" durability, this Micro-ATX board is the top choice for gamers who want high-end features like extended heatsinks and Dual M.2 slots without the premium price tag.
Whether you are building a budget gaming rig or a powerful workstation in Jashore, the Mortar Max delivers the thermal stability and high-speed connectivity needed to stay ahead.
Why the MSI B450M MORTAR MAX is the Best Investment for Your Build:
Future-Proof Performance: Supporting AMD Ryzen 1000 through 5000 Series processors, this board allows you to start with a budget chip and upgrade to a powerful Ryzen 9 later without changing your motherboard.
Keep Your Cool Under Pressure: Unlike standard boards, the "Extended Heatsink" design covers the VRMs, preventing thermal throttling. This ensures your CPU maintains peak clock speeds during intense 1080p or 1440p gaming sessions.
Extreme Memory Speeds: With DDR4 Boost technology, you can push your RAM up to 4133 MHz (OC).This pure data signal reduces lag and improves frame rates in memory-sensitive games like PUBG or Valorant.
Lightning-Fast Storage: Dual M.2 slots with Turbo M.2 (Gen3 x4) support mean you can boot your Windows in seconds and load massive open-world games almost instantly.
Built Like a Tank: The PCI-E Steel Armor is reinforced with extra solder points to support heavy modern graphics cards, protecting your motherboard from bending or physical damage over time.
Technical Specifications at a Glance:
| Component | Specification | Why it Matters |
| Chipset | AMD B450 | Reliable overclocking & great value |
| Socket | AM4 | Supports 1st to 5th Gen Ryzen CPUs |
| Memory | 4 Slots, Up to 128GB | Future-ready for heavy multitasking |
| M.2 Storage | 2x Slots (NVMe Gen3) | Ultra-fast boot & secondary storage |
| USB | 3.2 Gen2 (Type A + C) | Fast transfers for external drives |
| Audio | Audio Boost (7.1 Channel) | Immersive, studio-grade sound |
Latest MSI B450M MORTAR MAX Price in BD (2026)
As of 2026, the MSI B450M MORTAR MAX price in Bangladesh is approximately 9,500৳ to 10,200৳ at Unix Network.Even with newer chipsets on the market, the Mortar Max remains a fan favorite because it offers Type-C and Dual M.2—features often missing in newer entry-level boards.
