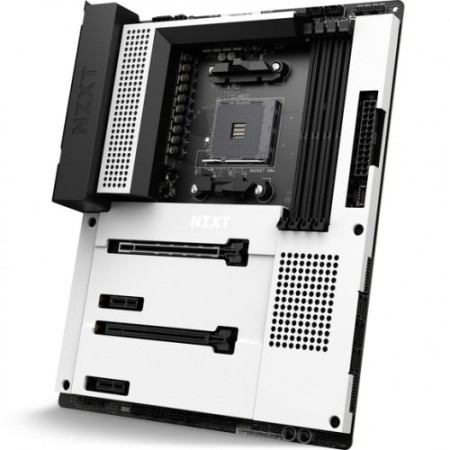

NZXT N7 B550 Matte White AMD AM4 ATX Wi-Fi Gaming Motherboard
Key highlights
- Form Factor: ATX
- Chipset: AMD B550
- Audio: 1x 5.1-Channel Audio Jacks
- HDMI: 1 x HDMI 2.1 Port
- PCI: 1x PCIe x16 (x16 mode) 1x PCIe x16 (x4 mode) 2x PCIe 3.0 x1
Description
Upgrade Your Gaming Setup with NZXT N7 B550 Motherboard
Experience Unmatched Performance with the NZXT N7 B550 Motherboard
The NZXT N7 B550 Matte White Gaming Motherboard is a premium choice for gamers and PC builders who demand outstanding performance and aesthetic appeal. Built on the AMD AM4 platform, this ATX motherboard supports the latest Ryzen processors, ensuring you can take full advantage of next-gen gaming performance. Integrated Wi-Fi connectivity allows for seamless online gaming and streaming, while the stylish matte white finish enhances the look of your gaming rig.
Designed for optimal thermal performance, the N7 B550 features robust power delivery and enhanced cooling solutions, keeping your system running smoothly even during intense gaming sessions. With support for DDR4 memory and multiple M.2 slots for NVMe SSDs, you can achieve lightning-fast load times and exceptional multitasking capabilities. Customizable RGB lighting lets you personalize your setup, making it truly yours.
Exceptional Performance with AMD AM4 ATX Wi-Fi Support
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX |
| Chipset | AMD B550 |
| Audio | 1x 5.1-Channel Audio Jacks |
| Connectivity | |
| HDMI | 1 x HDMI 2.1 Port |
| Expansion Slots | |
| PCI | 1x PCIe x16 (x16 mode) 1x PCIe x16 (x4 mode) 2x PCIe 3.0 x1 |
| Graphics Specifications | |
| Max Shared Memory | 16GB with 32GB installed |
| Graphics | AMD Radeon Vega Series Graphics in Ryzen Series APU HDMI Max Resolution: 4096x2160@60Hz Supports Microsoft PlayReady AMD 2-Way CrossFireX Technology |
| Memory Specifications | |
| Slots | 4 x DIMM Slots (Dual-Channel Memory Architecture) |
| Supported Memory | OC Frequency (Vermeer CPUs): 4666+ MHz OC Frequency (Matisse CPUs): 4666+ MHz OC Frequency (Renoir APUs): 4733+ MHz Base Frequency: 3200/ 2933/ 2667/ 2400/ 2133 Type: ECC & non-ECC, un-buffered memory XMP Support |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| Internal I/O Ports | 1x M.2 (M Key), Type 2242/2260/2280 1x M.2 (E Key) (For wireless cards) 6x SATA 6Gbps Ports 1x USB 3.2 Gen 2 Header (Type-C) 1x USB 3.2 Gen 1 Header 3x USB 2.0 Header 1x Front Panel Audio 1x CPU_FAN Connector 1x AIO_PUMP Connector 5x SYS_FAN Connector 2x NZXT RGB LED Header 1x 5V ARGB Header 1x 12V RGB Header 1x 24-pin EATX Power 1x 8-pin ATX 12V Power 1x 4-pin ATX 12V Power 1x Power Button 1x Reset Button 4x POST LEDs |
| LAN Port (s) | Realtek RTL8125BG 2.5G 1x LAN (RJ45) Port |
| Supported Storage | 1x M.2 Type 2242/2260/2280 (x4 mode) 1x M.2 Type 2242/2260/2280 (PCIe 3.0 x2 & SATA mode) 6x SATA 6Gb/s (M2_2 and SATA3_5_6 share lanes) RAID 0/1/5/10 Support |
| USB (s) | 1x USB 3.2 Gen 2 (Type-C) 3x USB 3.2 Gen 2 (Type-A) 4x USB 3.2 Gen 1 (Type-A) 2x USB 2.0 |
| Wireless Communication module | Intel Dual-Band Wireless AX210 Wi-Fi 6E 802.11 a/b/g/n/ac/ax Protocol Frequency Bands: 2.4 / 5 / 6GHz MU-MIMO Support Bluetooth V5.2 |
