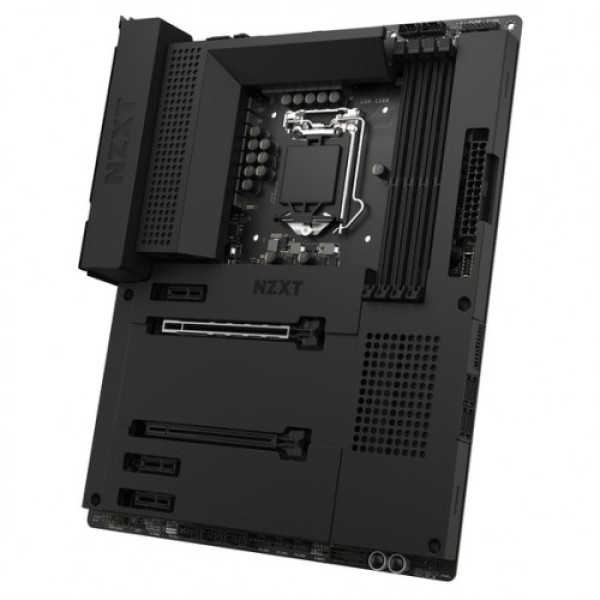

NZXT N7 Z590 Matte Black Intel 11th and 10th Gen ATX Wi-Fi Gaming Motherboard
Key highlights
- Form Factor: ATX
- Chipset: Z590
- Audio: Realtek ALC1220 Codec 8-Channel High Definition Audio 32-bit / 192kHz DAC Playback Nichicon Fine Gold Series Capacitors
- Type: DDR4
- PCI: 1x PCIe x16 (x16 mode) (11th Gen CPUs - PCIe 4.0, 10th Gen CPUs - PCIe 3.0) 1x PCIe x16 (x4 mode) 3x PCIe 3.0 x1
Description
Upgrade Your Gaming Rig with NZXT N7 Z590 Motherboard
Elevate Your Gaming Experience with the NZXT N7 Z590
Step up your gaming rig with the NZXT N7 Z590 Matte Black Intel 11th and 10th Gen ATX Wi-Fi Gaming Motherboard. Designed for gamers and enthusiasts alike, this motherboard combines cutting-edge technology with a sleek aesthetic. With support for Intel's latest 11th Gen processors, you can unleash the full potential of your gaming setup, ensuring smooth gameplay and high frame rates. Featuring built-in Wi-Fi 6, you’ll enjoy faster, more reliable internet connectivity, an essential for online gaming.
The N7 Z590’s robust power delivery system guarantees stability, even during intense gaming sessions. With customizable RGB lighting and a matte black finish, it not only performs exceptionally but also looks stunning in any build. Expand your system with multiple M.2 slots for SSDs, allowing for lightning-fast storage options that enhance your overall gaming experience.
Whether you're a casual gamer or a competitive player, the NZXT N7 Z590 offers the performance and features you need to dominate the battlefield. Upgrade your system today and experience gaming like never before!
Powerful ATX Motherboard for Intel 11th and 10th Gen
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | ATX |
| Chipset | Z590 |
| Audio | Realtek ALC1220 Codec 8-Channel High Definition Audio 32-bit / 192kHz DAC Playback Nichicon Fine Gold Series Capacitors |
| Type | DDR4 |
| Expansion Slots | |
| PCI | 1x PCIe x16 (x16 mode) (11th Gen CPUs - PCIe 4.0, 10th Gen CPUs - PCIe 3.0) 1x PCIe x16 (x4 mode) 3x PCIe 3.0 x1 |
| Graphics Specifications | |
| Graphics | Intel Xe Graphics (11th Gen CPUs) / UHD (10th Gen CPUs) HDMI 2.0 / HDMI 1.4b HDMI Max Resolution: 4096x2160@60Hz AMD 2-Way CrossFireX Technology |
| Memory Specifications | |
| Maximum Memory | 128GB |
| Slots | 4 x DIMM Slots (Dual-channel Memory Architecture) |
| Supported Memory | OC Frequency (11th Gen CPUs): 4600+ MHz OC Frequency (10th Gen CPUs): 4400+ MHz Base Frequency (11th Gen CPUs): 3200 / 2933 / 2800 / 2666 / 2400 / 2133 MHz Base Frequency (10th Gen CPUs): 2933 / 2800 / 2666 / 2400 / 2133 MHz Non-ECC, Un-buffered Memory Intel XMP 2.0 Support |
| PORTS, CONNECTORS & SLOTS | |
| HDMI | 1x HDMI 2.0 |
| Internal I/O Ports | 1x M.2 (M Key), Type 2242/2260/2280 1x M.2 (E Key) (For wireless cards) 4x SATA 6Gbps Ports 1x USB 3.2 Gen 2 Header (Type-C) 2x USB 3.2 Gen 1 Header (Up to 4 ports) 3x USB 2.0 Header (Up to 6 ports) 1x Front Panel Audio 1x CPU_FAN Connector (Up to 24W) 1x AIO_PUMP Connector (Up to 24W) 5x SYS_FAN Connector (Up to 24W) 2x NZXT RGB LED Header 1x 5V ARGB Header 1x 12V RGB Header 1x 24-pin EATX Power 1x 8-pin ATX 12V Power 1x 4-pin ATX 12V Power 1x Power Button 1x Reset Button 4x POST LEDs |
| LAN Port (s) | Realtek RTL8125BG 2.5G |
| Supported Storage | 1x M.2 Type 2242/2260/2280 (PCIe x4 mode) 1x M.2 Type 2242/2260/2280 (PCIe 3.0 x4 & SATA mode) 4x SATA 6Gb/s RAID 0/1/5/10 Support Intel Smart Response Technology Intel Rapid Storage Technology Intel Optane Memory |
| Wireless Communication module | Intel Dual-Band Wireless: AX210 Wi-Fi 6E Protocol: 802.11 a/b/g/n/ac/ax Frequency Bands: 2.4 / 5 / 6 GHz MU-MIMO Support Bluetooth V5.2 |
| WARRANTY | |
| Manufacturing Warranty | 3 Years |
