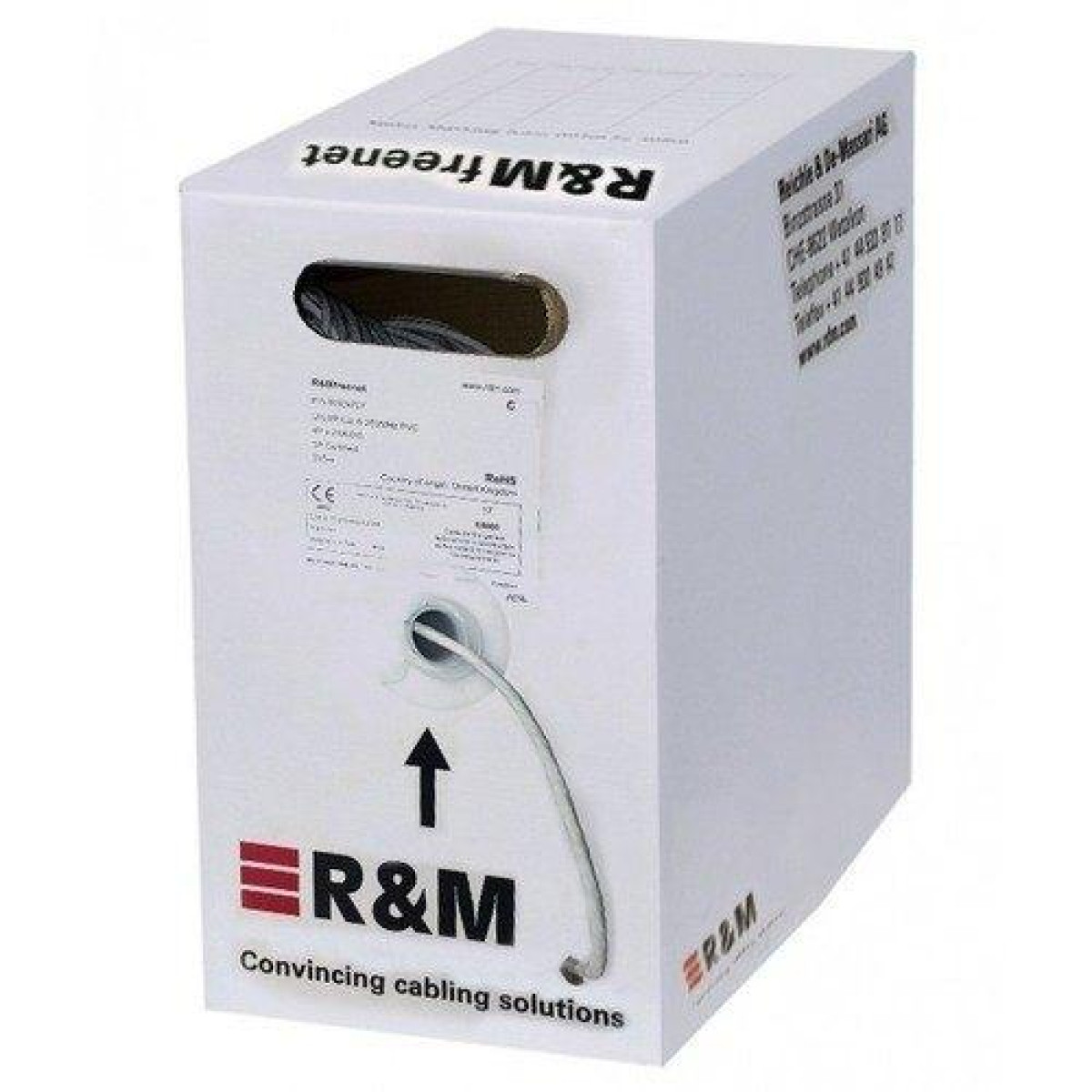

R&M R795138 Cat-6 U/UTP 305 Meter Network Cable

BASIC INFORMATION
Application	Primary (Campus), Secondary (Riser), Tertiary (Horizontal) IEEE 802.3an: 10Base-T; 100Base-TX; 1000Base-T IEEE 802.5 16 MB; ISDN; TPDDI; ATM
Cable Lay-Up	4 pairs to the core with cross separator
Conductor	Bare solid copper
Fire Rating	Flame retardant- PVC
Insulation	HDPE, overall Ø 0.92±0.02 mm
Overall Screen	Non
Pair Screen	Non
Sheath	PVC, gray RAL 7035, Sheath Thickness: 0.50mm nominal
Standards	ISO/IEC 11801 2nd ed.; EN 50173-1; ANSI/TIA-568-C.2 IEC 61156-5 2nd ed.; IEC 61156-7; EN 50288-6-1
Twisting	2 wires to the pair
Physical Specification
Color	Yellow Blue Grey
PHYSICAL SPECIFICATION
Weight	13.0kg nominal
Technical Specification
Bending Radius	≥ 25 mm during operation (without load) ≥ 50 mm during installation (with load)
Cable Designation	U/UTP Cat.6 250MHz
Outer Diameter	5.8±0.3mm
Packaging	Drum 305 m
Pulling Pressure	11Kg nominal
Segregation Class	B
Temperature ange	During operation: -20°C…+ 60°C During installation: 0°C…+ 50°C
Tensile Strength	> 16.5N/mm²

R&M Cat 6 U/UTP Cable Box comes with Bare solid copper Conductor, HDPE, overall Ø 0.92±0.02 mm, 2 wires to the pair Twisting, 4 pairs to the core with cross separator Cable lay up, PVC, gray RAL 7035, Sheath Thickness: 0.50mm nominal. It is ISO/IEC 11801 2nd ed.; EN 50173-1; ANSI/TIA-568-C.2 IEC 61156-5 2nd ed.; IEC 61156-7; EN 50288-6-1 Standard. This Cable Box also featured U/UTP Cat.6 250MHz Cable designation, 5.8±0.3mm Outer diameter, 13.0kg nominal/305m Weight, 11Kg nominal Pulling Pressure, B Segregation class with > 16.5N/mm² Tensile Strength. It also comes with 25 mm during operation (without load), ≥ 50 mm during installation (with load) Bending radius operation -20C+ 60C, During installation 0°C…+ 50°C. This Cable Box also featured with different kinds of Electrical Properties (at 20°C ± 5°C), these are ≤ 9.38 Ω / 100 m Conductor resistance, ≤ 2 % Resistance unbalance, 1000 V; DC, 1 min, core/core Test voltage, ≥ 5000 MΩ km; 500 V Insulation resistance, 44 pF / m max Capacitance,  1500 pF/km Capacitance unbalances, 100 ± 15 Ω; impedance @ 100 MHz Mean characteristics, Approx. 69 % Nominal velocity of propagation, ≤ 536 ns / 100 m; At 1 MHz Propagation delay, ≤ 45 ns / 100 m Delay skew, 40 dB Coupling attenuation.

Introducing the R&M R795138 Cat-6 U/UTP 305 Meter Network Cable, a must-have accessory for any computer user or student looking to boost their network performance. This high-quality cable is designed for speed, reliability, and efficiency, making it the perfect solution for your networking needs.

With its Cat-6 U/UTP design, this cable is built to handle high-speed data transmissions with ease. Whether you're gaming, streaming, or working on important projects, this cable will ensure a smooth and uninterrupted connection every time. Say goodbye to lag and slow load times – the R&M R795138 Cat-6 Cable has got you covered.

But it's not just about speed – this network cable is also designed with durability in mind. Made from high-quality materials, it can withstand daily wear and tear without compromising on performance. You can trust this cable to deliver consistent results day in and day out, without any signal interference or loss.

At Unix Network in Jashore, Bangladesh, we are proud to offer this top-of-the-line network cable to our customers. Our team of experts has handpicked this product for its superior quality and performance, and we stand by its ability to enhance your networking experience.

Don't settle for subpar network cables that slow you down – invest in the R&M R795138 Cat-6 U/UTP 305 Meter Network Cable and experience the difference for yourself. Upgrade your network, boost your speed, and elevate your performance with this exceptional product from Unix Network. Order yours today and take your networking to the next level.

When it comes to networking, the quality of your cables can make all the difference. That's why at Unix Network in Jashore, Bangladesh, we are proud to offer the R&M R795138 Cat-6 U/UTP 305 Meter Network Cable. This high-performance cable is designed to provide the speed and reliability you need for your computer or student use.

With its Cat-6 rating, this cable is able to support speeds up to 10 gigabits per second, making it perfect for demanding applications such as online gaming, video streaming, and large file transfers. Whether you're a computer user looking to improve your home network or a student in need of a reliable connection for online classes, this cable is sure to meet your needs.

But speed is just one part of the equation. The R&M R795138 Cat-6 U/UTP 305 Meter Network Cable is also built to last, with high-quality materials that ensure long-lasting performance. The U/UTP design helps to reduce interference and crosstalk, ensuring a stable connection even in busy networking environments.

At Unix Network, we understand that our customers demand the best, which is why we only offer products that meet our high standards for quality and reliability. The R&M R795138 Cat-6 U/UTP 305 Meter Network Cable is no exception, providing the performance and durability you need at a price that won't break the bank.

So why settle for subpar networking equipment when you can have the best? Upgrade to the R&M R795138 Cat-6 U/UTP 305 Meter Network Cable today and experience the difference for yourself. Visit Unix Network in Jashore, Bangladesh, and discover why we are the go-to destination for all your networking needs.
