Key highlights
- Capacity: 20 kVA
- Frequency: Nominal frequency: 50/60 Hz Input frequency range On-Line mode: 46-54 Hz o 56-64 Hz
- Power Factor: 0.99 Input current harmonic distortion (THDi): 0.04
- Voltage Range: Nominal voltage: 360Vac/380Vac/400Vac/415Vac Nominal voltage (Ph-N): 208Vac/220Vac/230Vac/240Vac Input voltage range (Ph-N): 176Vac-276Vac to 100% load, 110Vac-300Vac to 50% load
- Frequency (Battery Mode): 50/60HZ
Description
Reliable Power Backup with Tecnoware 20KVA UPS

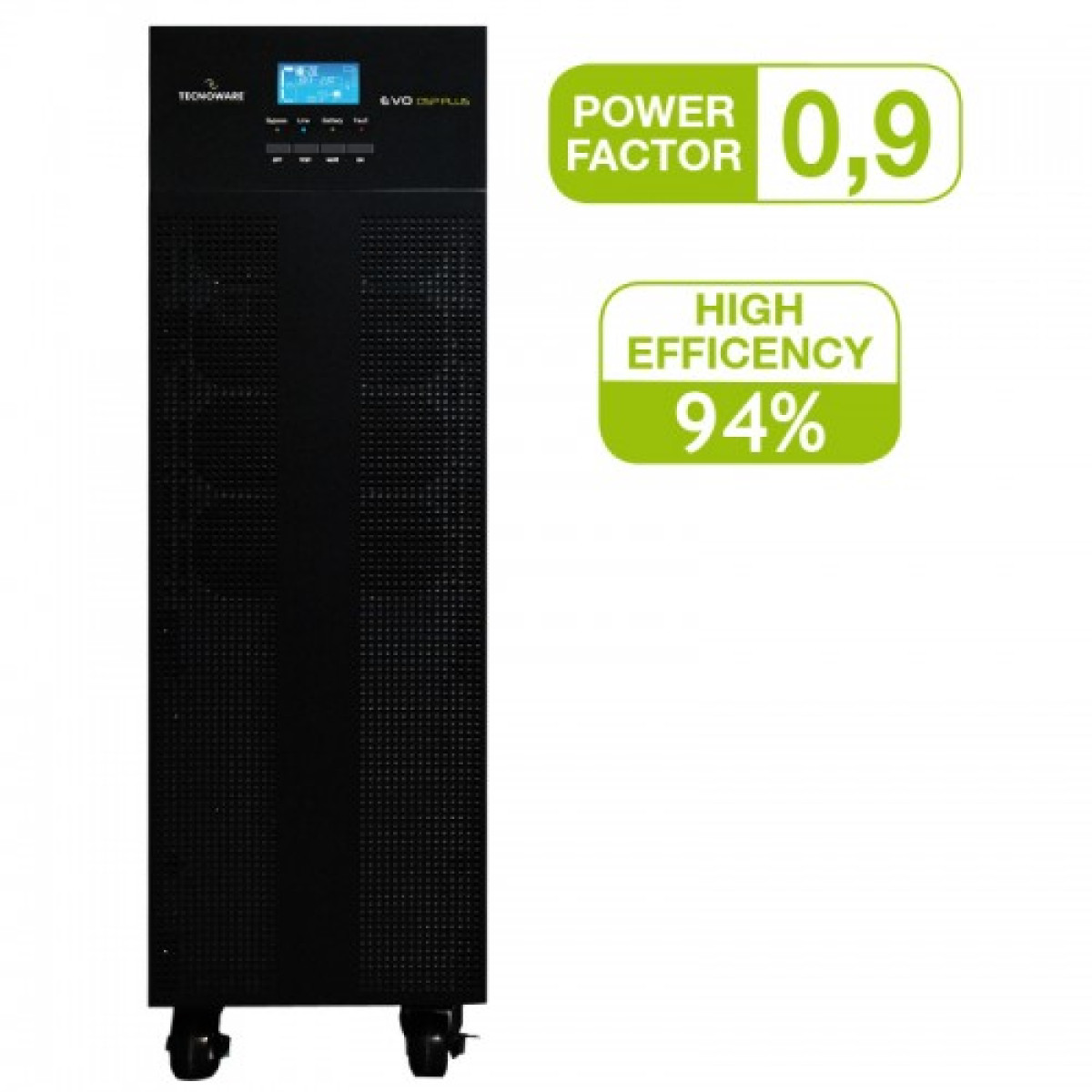

Tecnoware FGCEVDP20TT/00 20KVA Online UPS
The Tecnoware FGCEVDP20TT/00 20KVA Online UPS is a high-performance uninterruptible power supply designed to ensure the continuous operation of your critical systems. With its advanced double conversion technology, this UPS provides pure sine wave output, ensuring the safety and longevity of your electronic devices. Its robust 20KVA capacity makes it ideal for businesses in Bangladesh that require uninterrupted power for servers, networking equipment, and sensitive electronic appliances.
Reliable Power Protection: The FGCEVDP20TT/00 offers excellent protection against power surges, voltage fluctuations, and electrical noise, safeguarding your equipment and data.
Efficient Operation: With a high efficiency rating, this UPS minimizes energy consumption, helping you save on utility costs while ensuring maximum performance.
Smart Management Features: The integrated LCD display provides real-time information about the UPS status, battery level, and input/output voltage, making it easy to monitor and manage.
Compact Design: Its space-saving design allows for easy installation in various environments, making it suitable for both home and office use.
Invest in the Tecnoware FGCEVDP20TT/00 UPS to keep your operations running smoothly, and enjoy peace of mind knowing your devices are protected.
Features of Tecnoware FGCEVDP20TT/00 Online UPS
Specification
| BASIC INFORMATION | |
|---|---|
| Capacity | 20 kVA |
| Input Features | |
| Frequency | Nominal frequency: 50/60 Hz Input frequency range On-Line mode: 46-54 Hz o 56-64 Hz |
| Power Factor | 0.99 Input current harmonic distortion (THDi): 0.04 |
| Voltage Range | Nominal voltage: 360Vac/380Vac/400Vac/415Vac Nominal voltage (Ph-N): 208Vac/220Vac/230Vac/240Vac Input voltage range (Ph-N): 176Vac-276Vac to 100% load, 110Vac-300Vac to 50% load |
| Main Features | |
| Frequency (Battery Mode) | 50/60HZ |
| Load Capacity | Overload capability (On-line mode): 110% for 60 minutes, 130% for 10 minutes, >150% for 1 second Overload capability (Battery mode): 110% for 60 minutes, 130% for 10 minutes, >150% for 1 second Efficiency: 94%, calculated in double conversion mode at 100% load to 100% load according to standard 62040-3 |
| Output Features | |
| Rated power | <2% (linear load) - <5% (distorting load) |
| Transfer Time | 0 ms (On-Line) |
| WARRANTY | |
| Manufacturing Warranty | 02 Years Warranty |
