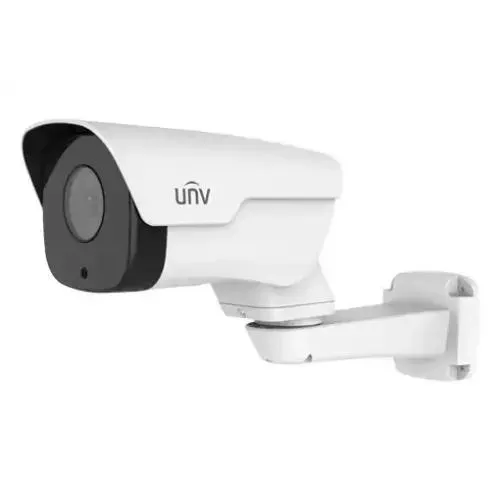

Uniview IPC744SR5-PF60-32G 4MP Fixed Lens IR PT Camera

The Uniview IPC744SR5-PF60-32G 4MP Fixed Lens IR PT Camera is a professional network surveillance solution designed for locations that need detailed video, directional camera movement and dependable monitoring in both daylight and low-light conditions. With a 4MP image sensor, 6mm fixed lens, PT movement, Smart IR illumination and built-in 32GB eMMC storage, it is suitable for commercial, industrial, residential and outdoor security applications.

Uniview IPC744SR5-PF60-32G 4MP PT Camera Price in Bangladesh

The Uniview IPC744SR5-PF60-32G is an attractive option for buyers searching for a 4MP PT IP camera in Bangladesh. Its 6mm fixed lens provides focused coverage, while the pan and tilt mechanism allows the viewing direction to be adjusted remotely. This combination makes it useful for monitoring entrances, compounds, parking areas, warehouses, business premises and other defined security zones.

Unix Network offers CCTV, networking and security products for customers in Jessore and throughout Bangladesh. Buyers can enquire about the latest price, availability, warranty information, delivery options and compatibility with their existing surveillance system.

Uniview IPC744SR5-PF60-32G Overview

The camera features a 4MP progressive-scan CMOS sensor capable of producing images up to 2592 × 1520 resolution. Its 6mm fixed lens provides a focused viewing perspective, making it particularly useful when the surveillance target is positioned at a moderate distance rather than requiring an extremely wide field of view.

The PT mechanism adds flexibility by allowing the camera direction to be adjusted without physically repositioning the unit. This can be valuable for monitoring larger areas where different sections need to be viewed from the same mounting point.

Key Features

• 4MP progressive-scan CMOS image sensor
• Up to 2592 × 1520 resolution
• 6mm fixed lens
• Approximately 49.9° horizontal viewing angle
• 250° pan range
• -50° to 50° tilt range
• Smart IR illumination up to 50 metres
• 120dB Wide Dynamic Range
• 2D and 3D digital noise reduction
• Digital defog function
• Backlight Compensation and Highlight Compensation
• Ultra 265, H.265, H.264 and MJPEG compression
• Three-stream video capability
• Region of Interest support
• Motion detection
• Intrusion detection
• Cross-line detection
• Face detection
• People counting
• Built-in 32GB eMMC storage
• ONVIF support
• PoE connectivity
• IP66-rated protection

4MP Image Quality for Professional Surveillance

The 4MP sensor provides more image detail than conventional Full HD cameras, making the IPC744SR5-PF60-32G suitable for applications where useful visual information is important. It can help monitor entrances, access points, business areas, warehouses, parking spaces and property boundaries.

The maximum resolution reaches 2592 × 1520, with frame rate depending on the selected resolution and configuration. Proper installation, lighting, camera positioning and recording settings remain important factors when aiming for the best surveillance results.

6mm Fixed Lens for Focused Monitoring

Unlike a wide-angle camera designed to cover a large nearby area, the IPC744SR5-PF60-32G uses a 6mm fixed lens for a more focused perspective. Its approximately 49.9° horizontal field of view makes it useful for locations where the primary surveillance target is not immediately close to the camera.

The fixed-lens design also provides a straightforward installation approach. Once the camera has been correctly positioned, there is no need for optical zoom adjustment. Buyers should nevertheless evaluate the required viewing distance and coverage area before choosing this model.

PT Movement for Flexible Viewing

The camera's pan and tilt mechanism provides additional flexibility compared with a conventional fixed-position surveillance camera. It supports a 250° pan range and a tilt range from -50° to 50°, allowing the viewing direction to be adjusted according to the monitoring requirement.

This feature can be especially useful in commercial compounds, parking areas, warehouses, industrial facilities and other environments where several viewing directions may need to be monitored from one camera position.

Smart IR Night Vision

Security monitoring often needs to continue after sunset. The IPC744SR5-PF60-32G incorporates Smart IR illumination with a stated range of up to 50 metres, helping support surveillance in dark and low-light environments.

The camera also uses an automatic IR-cut filter for day and night operation. Actual night-time image quality depends on installation height, surrounding lighting, reflective objects, weather conditions and the distance between the camera and monitored subject.

120dB WDR for Challenging Lighting

Surveillance cameras can encounter difficult scenes where bright sunlight, entrances, windows or headlights appear alongside darker areas. The IPC744SR5-PF60-32G supports 120dB Wide Dynamic Range to help balance bright and shadowed portions of the image.

Additional image technologies such as digital noise reduction, digital defog, Backlight Compensation and Highlight Compensation provide further assistance in challenging surveillance conditions.

Efficient Video Compression

The camera supports Ultra 265, H.265, H.264 and MJPEG compression formats. More efficient compression technologies can help reduce network bandwidth and storage requirements while retaining useful video quality.

Three video streams provide additional flexibility for different surveillance tasks. For example, a higher-quality stream can be used for recording while another stream can be configured for remote monitoring where bandwidth is limited.

Built-in 32GB Storage

A 32GB eMMC storage module is built into the camera, providing local storage capability. This can be useful in surveillance deployments where onboard recording or additional storage flexibility is required.

The actual amount of footage that can be retained depends on resolution, frame rate, compression settings, scene activity and recording configuration. For larger installations or extended retention periods, an NVR remains an important part of the overall surveillance design.

Intelligent Surveillance Functions

The IPC744SR5-PF60-32G provides several intelligent monitoring features beyond basic video capture. Depending on the configured surveillance environment, these functions can help users identify activity and monitor defined areas more effectively.

• Motion detection for activity-based surveillance
• Intrusion detection for restricted zones
• Cross-line detection for virtual boundary monitoring
• Face detection for scenes containing faces
• People counting for selected applications
• Region of Interest support for prioritising important areas
• Privacy masking for selected sections of the image

Outdoor Protection with IP66 Construction

The IP66-rated housing provides protection against dust and water exposure, making the camera suitable for many outdoor surveillance installations. It is designed to operate across a broad temperature range, which can be useful for demanding environmental conditions.

Correct installation remains essential. Mounting position, cable routing, connector protection and exposure to direct environmental elements should all be considered when deploying an outdoor CCTV camera.

PoE Network Connectivity

Power over Ethernet support can simplify CCTV installation by allowing compatible network equipment to provide both power and data connectivity through Ethernet cabling. This can reduce cabling complexity and make deployment more convenient.

Before installation, confirm that the selected PoE switch or injector can provide sufficient power for the camera and the complete network configuration.

Technical Specifications

Ideal Applications

The combination of 4MP imaging, focused lens coverage, PT movement and infrared illumination makes this camera suitable for a variety of security environments.

• Commercial buildings
• Factories and industrial facilities
• Warehouses and storage areas
• Retail shops and showrooms
• Office compounds
• Parking areas
• Building entrances
• Property boundaries
• Educational institutions
• Large residential properties
• Outdoor security monitoring

Who Should Buy the IPC744SR5-PF60-32G?

This Uniview PT camera is well suited to buyers who need more directional flexibility than a conventional fixed surveillance camera while preferring the focused perspective of a 6mm lens. It can be particularly useful for businesses and property owners who need to monitor several sections of a defined area from one installation position.

For very wide coverage at short distances, a camera with a wider lens may be more suitable. Buyers requiring substantial optical zoom should instead consider a dedicated optical-zoom PTZ model.

Things to Consider Before Buying

• Check whether the 6mm lens provides the required viewing angle.
• Measure the approximate distance between the camera and the main surveillance target.
• Consider whether the available pan and tilt range meets the site's coverage requirements.
• Verify compatibility with your existing NVR or video management system.
• Check PoE power requirements before selecting network equipment.
• Consider the required recording duration and storage capacity.
• Evaluate lighting conditions for both daytime and night-time surveillance.
• Confirm warranty terms and included accessories before purchasing.

Why Buy Uniview CCTV from Unix Network?

Unix Network is a computer, networking and security technology retailer in Jessore, Bangladesh. Customers can enquire about Uniview CCTV cameras, NVRs, networking equipment and related security products while receiving practical guidance based on their surveillance requirements.

Customers in Jessore and Jashore can enquire about local availability and showroom service. Buyers from Jhenaidah, Magura, Narail, Satkhira, Khulna, Kushtia, Chuadanga and other parts of Bangladesh can also enquire about nationwide delivery.

Buying Guide for a 4MP PT IP Camera

Begin by identifying the area that needs protection and the primary subjects that must remain visible. Because this model uses a 6mm fixed lens, its relatively focused perspective should match the distance and coverage requirements of the installation.

Next, plan the complete CCTV system, including NVR storage, network bandwidth, PoE equipment, power requirements and the number of cameras required. For commercial installations, intelligent functions such as intrusion detection and cross-line detection may also influence the final product selection.

Warranty and After-Sales Support

Warranty coverage may vary according to the supplier and distribution channel. Buyers should confirm the applicable warranty period, service conditions and included accessories before placing an order. Unix Network can also assist with product selection and surveillance system planning.

Frequently Asked Questions

What resolution does the Uniview IPC744SR5-PF60-32G support?

The camera features a 4MP image sensor and supports resolution up to 2592 × 1520.

What type of lens does this Uniview camera use?

It uses a 6mm fixed lens with an approximately 49.9° horizontal viewing angle.

Is the IPC744SR5-PF60-32G a PT camera?

Yes. The camera supports pan and tilt movement, with a 250° pan range and -50° to 50° tilt range.

How far can the IR night vision reach?

The Smart IR system provides an infrared illumination range of up to 50 metres under suitable conditions.

Does this camera support PoE?

Yes. PoE connectivity is supported for compatible network installations.

Does it have built-in storage?

Yes. The IPC744SR5-PF60-32G includes 32GB of built-in eMMC storage.

Is the camera suitable for outdoor use?

Yes. Its IP66 protection rating makes it suitable for many outdoor surveillance applications when correctly installed.

Does the camera support intelligent detection?

Yes. Its supported functions include motion detection, intrusion detection, cross-line detection, face detection and people counting.

Can it work with an NVR?

Yes. The camera is designed for IP surveillance environments and supports ONVIF, although compatibility should be confirmed with the specific NVR or VMS before purchase.

Where can I buy the Uniview IPC744SR5-PF60-32G in Bangladesh?

You can enquire about this Uniview 4MP PT camera from Unix Network in Jessore. Current pricing, availability, warranty and delivery arrangements should be confirmed before ordering.

Conclusion

The Uniview IPC744SR5-PF60-32G 4MP Fixed Lens IR PT Camera offers a practical combination of detailed 4MP imaging, focused 6mm coverage, remotely adjustable pan and tilt movement, Smart IR night surveillance, 120dB WDR, intelligent detection functions and built-in 32GB storage. Its IP66 construction and PoE capability further support professional CCTV deployment. For businesses, property owners and organisations seeking a flexible Uniview network camera in Bangladesh, this model is a capable choice for focused indoor and outdoor surveillance.
