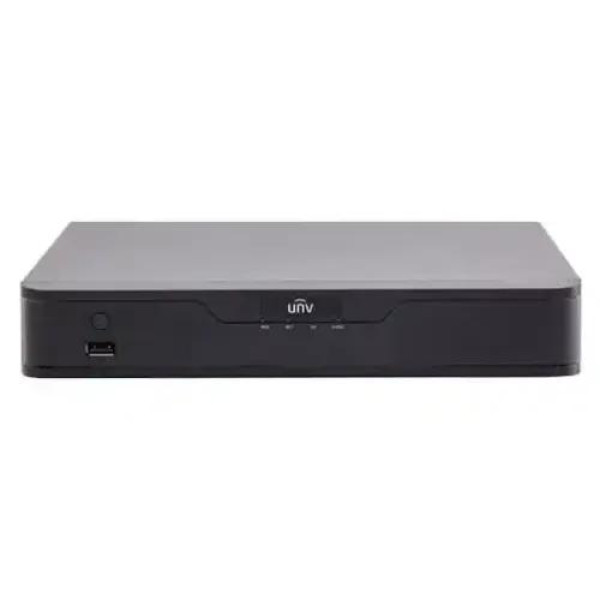

Uniview NVR302-08S2-P8 8 Channel NVR

The Uniview NVR302-08S2-P8 is an 8-channel PoE Network Video Recorder designed for reliable IP surveillance in homes, offices, shops, warehouses and small to medium-sized commercial properties. It combines 8-channel camera support, integrated PoE connectivity, up to 4K recording, dual-HDD storage, Ultra 265 compression and intelligent surveillance functions in a practical professional NVR platform.

Uniview NVR302-08S2-P8 8 Channel NVR in Bangladesh

With 80 Mbps incoming bandwidth and 64 Mbps outgoing bandwidth, the NVR302-08S2-P8 is suitable for multi-camera IP surveillance systems using high-resolution network cameras. Its eight independent PoE ports make installation easier by providing network connectivity and power to compatible cameras through Ethernet.

The recorder supports up to 8MP recording resolution and can decode up to two 4K streams at 30fps. Two SATA interfaces provide support for up to 10TB per HDD, giving installers the flexibility to build a suitable recording-storage configuration according to camera count and retention requirements.

Key Features of NVR302-08S2-P8

• 8-channel IP camera input
• 8 independent built-in PoE ports
• Up to 4K recording capability
• Supports recording resolutions up to 8MP
• 80 Mbps incoming bandwidth
• 64 Mbps outgoing bandwidth
• Ultra 265, H.265 and H.264 video compression
• 2 SATA HDD interfaces
• Supports up to 10TB per HDD
• Up to 8-channel synchronous playback
• HDMI and VGA simultaneous video output
• HDMI output up to 3840 × 2160 at 30Hz
• 4 alarm inputs and 1 alarm output
• Two-way audio support
• ONVIF Profile S, Profile G and Profile T compatibility
• RTSP protocol support
• ANR technology for improved recording reliability
• Up to 128 remote users
• Supports intelligent surveillance functions through compatible IP cameras

8-Channel IP Camera Recording

The NVR302-08S2-P8 supports up to eight IP cameras, making it a practical solution for surveillance layouts requiring several monitoring points. Cameras can be positioned at entrances, reception areas, sales floors, corridors, parking spaces, warehouses and external boundaries.

The recorder supports a wide range of resolutions including 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 960p, 720p, D1, 2CIF and CIF. This allows the surveillance system to use different camera resolutions according to the importance of each monitoring area.

Built-In 8-Port PoE Connectivity

One of the biggest advantages of this model is its integrated 8-port PoE architecture. Compatible IP cameras can be connected directly to the NVR without necessarily requiring a separate PoE switch.

The PoE interfaces support IEEE 802.3af and 802.3at standards. Each port can provide up to 30W, while the total PoE power budget can reach 130W. This provides sufficient power capacity for many standard fixed IP cameras and suitable PTZ or advanced network cameras, subject to the individual camera's power requirements.

4K Recording Capability

The NVR302-08S2-P8 supports recording resolutions up to 8MP, including 4K-class video. This allows compatible high-resolution cameras to capture greater image detail for applications such as entrance monitoring, retail surveillance, vehicle observation and perimeter security.

Its decoding capability supports up to two 4K streams at 30fps, four 4MP streams at 30fps, five 3MP streams at 30fps or eight 1080p streams at 30fps under the specified configurations.

Ultra 265 Video Compression

Uniview Ultra 265 compression is designed to reduce the amount of storage and network bandwidth required for IP video recording. The NVR also supports H.265 and H.264, providing compatibility with a broad range of network cameras.

Efficient compression becomes especially useful when several cameras are recording continuously. Actual storage requirements depend on camera resolution, frame rate, bitrate, scene activity, compression settings and recording schedule.

Dual HDD Storage

The NVR includes two SATA interfaces, with support for up to 10TB per HDD. This provides a maximum supported internal storage capacity of up to 20TB, subject to compatible drives and operating conditions.

Using two HDDs can provide substantially longer recording retention than a single-drive configuration. Storage requirements should be calculated before installation based on the number of cameras, recording mode and desired retention period.

Storage Specifications

High-Speed Network Performance

The NVR provides 80 Mbps incoming bandwidth and 64 Mbps outgoing bandwidth. This gives the recorder sufficient network capacity for many eight-camera installations while allowing high-resolution streams to be recorded and accessed over the network.

HDMI and VGA Display Output

The recorder provides HDMI and VGA outputs for local surveillance monitoring. HDMI supports up to 3840 × 2160 at 30Hz, while VGA supports up to 1920 × 1080 at 60Hz.

HDMI and VGA can be used simultaneously, giving security operators greater flexibility when connecting monitoring displays. Multi-camera live-view layouts can be configured according to the requirements of the surveillance environment.

Flexible Camera Compatibility

The NVR302-08S2-P8 supports mainstream IP cameras conforming to ONVIF Profile S, Profile G and Profile T, along with RTSP protocols. This provides flexibility when selecting compatible network cameras for a new installation or upgrading an existing IP surveillance system.

Advanced camera functions can vary between manufacturers and models, so compatibility should be checked when specific AI, analytics or recording features are required.

Smart Surveillance Functions

The NVR can work with intelligent features provided by compatible IP cameras. Supported surveillance functions include face detection, intrusion detection, cross-line detection, enter-area detection, leave-area detection and Ultra Motion Detection.

People-counting functions can also support people-flow analysis and crowd-density monitoring when compatible cameras provide the required analytics.

ANR Technology for Recording Reliability

The NVR302-08S2-P8 supports ANR technology, which is designed to improve recording reliability when communication between an IP camera and NVR is temporarily interrupted.

With compatible cameras and an appropriate configuration, video can be stored locally by the camera during a network interruption and transferred to the NVR after the connection is restored. This can help minimise recording gaps in suitable installations.

Two-Way Audio Support

The NVR provides one RCA audio input and one RCA audio output, supporting two-way audio through compatible equipment. This can be useful for applications where audio communication is required alongside video monitoring.

Suitable cameras or external audio devices can be selected according to the specific surveillance requirement.

Alarm Integration

The NVR includes four alarm inputs and one alarm output. Compatible external sensors and security devices can therefore be integrated into the surveillance system.

Alarm-based recording and event handling can be useful for shops, offices, warehouses and commercial properties where video surveillance needs to respond to external security events.

Technical Specifications

Applications of Uniview NVR302-08S2-P8

• Home CCTV systems
• Retail shops and showrooms
• Computer and electronics stores
• Offices and commercial buildings
• Warehouses and storage facilities
• Small factories and workshops
• Restaurants and hospitality businesses
• Schools and educational facilities
• Small business premises
• Residential apartment buildings
• Small-scale perimeter surveillance

Why Choose the NVR302-08S2-P8?

The NVR302-08S2-P8 is a strong choice when an installation requires eight IP camera channels together with integrated PoE. Its dual-HDD architecture provides more storage flexibility than many compact NVRs, while 4K recording support gives users the option to deploy higher-resolution cameras.

Its 80 Mbps incoming bandwidth, efficient Ultra 265 compression, intelligent camera integration, ANR technology and 8-channel playback make it suitable for both straightforward CCTV installations and more feature-rich IP surveillance systems.

Things to Consider Before Buying

• Confirm that your IP cameras are compatible with the NVR and supported ONVIF profiles.
• Check each camera's PoE power requirement before connecting it directly to the NVR.
• Calculate the required HDD capacity according to camera resolution, bitrate and retention period.
• Use surveillance-grade HDDs designed for continuous recording workloads.
• Check total camera bandwidth before installing multiple high-resolution cameras.
• Verify advanced AI functions if specific analytics are required.
• Consider future camera expansion when designing the network infrastructure.

Buy Uniview NVR302-08S2-P8 in Jessore, Bangladesh

Unix Network offers networking and surveillance equipment for customers looking for Uniview NVR solutions in Jessore and throughout Bangladesh. The NVR302-08S2-P8 is suitable for customers who need an 8-channel PoE NVR with 4K recording support and dual-HDD storage.

Customers in Jessore can contact Unix Network for product availability and CCTV system guidance. Nationwide delivery is also available for customers across Bangladesh, subject to current stock and delivery conditions.

Professional CCTV System Planning

A reliable surveillance system depends on more than the NVR alone. Camera resolution, lens selection, PoE power requirements, HDD capacity, network bandwidth, recording schedule and monitoring requirements should all be considered before installation.

Unix Network can help customers select compatible IP cameras, surveillance HDDs, networking equipment and other components for a complete CCTV solution.

Frequently Asked Questions

How many cameras can the Uniview NVR302-08S2-P8 support?

It supports up to 8 IP camera channels.

Does the NVR302-08S2-P8 have built-in PoE?

Yes. It has 8 independent PoE ports supporting IEEE 802.3af and IEEE 802.3at.

Can this NVR record 4K video?

Yes. It supports recording resolutions up to 8MP and can decode up to two 4K streams at 30fps under the specified configuration.

How many HDDs can be installed?

The recorder has two SATA interfaces and supports up to 10TB per HDD, providing up to 20TB of supported internal capacity.

Does it support third-party IP cameras?

Yes. The recorder supports compatible ONVIF Profile S, Profile G and Profile T cameras, along with RTSP-based devices. Specific advanced functions should be checked for compatibility.

Does it support remote viewing?

Yes. Network and P2P functions support remote access, with up to 128 remote users listed in the manufacturer's specifications.

Does the NVR support ANR?

Yes. ANR technology can improve recording continuity with compatible cameras when temporary network interruptions occur.

What is the PoE power capacity?

Each PoE port can provide up to 30W, with a total PoE power budget of up to 130W.

Conclusion

The Uniview NVR302-08S2-P8 is a capable 8-channel PoE Network Video Recorder for users who need reliable IP camera recording, integrated PoE connectivity, 4K-class recording, dual-HDD storage and intelligent surveillance support. Its combination of 80 Mbps incoming bandwidth, Ultra 265 compression, ONVIF compatibility, ANR technology and flexible storage makes it well suited to homes, shops, offices, warehouses and small commercial surveillance projects.

For customers searching for an 8-channel NVR, 4K NVR or PoE NVR in Jessore or elsewhere in Bangladesh, the NVR302-08S2-P8 offers a practical foundation for building a modern IP CCTV system.
