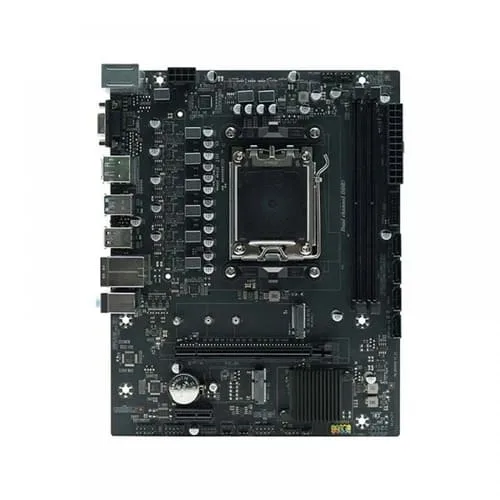

AFOX B650D5-MA AMD Socket AM5 Motherboard
- Brand:AFOX
- Product Code: B650D5-MA
- Availability:In Stock
- Updated:
ক্যাম্পেইনের পণ্যে অন্য কোন অফার থাকলে সম্মানিত ক্রেতারা যেকোন একটি অফার উপভোগ করতে পারবেন।
Specification
| BASIC INFORMATION | |
| Connector | 1 x USB 2.0 pinheader (supports additional 2 USB 2.0s) 1 x USB 3.2 Gen 2 pinheader (supports additional 2 USB 3.2 Gen 2 ) 1 x Front Panel Audio pinheader and 1 x Front Panel COM pinheader |
|---|---|
| Form Factor | Micro-ATX |
| Graphics | Integrated |
| Memory Type | DDR5 |
| Supported CPU | Supports AMD Ryzen 9000 Series/ Ryzen 8000 Series and Ryzen 7000 Series processors |
| Chipset | AMD® B650 |
| Memory | 64GB |
| Connectivity | |
| SATA | 4 x SATA3 1 x Mini PCI-E Slot (Supports 4G/WIFI Module) 1 x M.2 (PCIe NVMe Gen4 x4 & PCIe NVMe Gen3 x4 ) |
| Expansion Slots | |
| PCI | 1 x PCI Express x16 4.0 slot 1 x PCI Express x1 slot |
| External Features | |
| I/O Port | 1 x HDMI Port 1 x D-Sub (VGA) Port 1 x DP Port 1 x PS/2 Mouse Port 5 x USB 2.0 Ports 3 x USB 3.2 Gen 2 Ports 1 x RJ-45 LAN Port 3 x HD Audio Jack (Line in / Front Speaker / Microphone) |
| Main Features | |
| Socket | AM5 |
| Physical Specification | |
| Color | Black |
| PORTS, CONNECTORS & SLOTS | |
| LAN Port (s) | Realtek RTL8111 Gigabit Ethernet on board Wake-On-LAN |
| WARRANTY | |
| Manufacturing Warranty | 3 year |
Description
AFOX B650D5-MA AMD Socket AM5 DDR5 Motherboard Price in Bangladesh
The AFOX B650D5-MA AMD Socket AM5 DDR5 Motherboard is designed for modern AMD desktop PCs used for gaming, content creation, multitasking, and professional computing. Powered by the AMD B650 chipset, it features an AM5 socket for compatible AMD Ryzen processors. With DDR5 memory support, PCIe 4.0 graphics expansion, an NVMe M.2 SSD slot, SATA storage connectivity, and Gigabit LAN, this Micro-ATX motherboard provides a practical foundation for a modern AMD PC build.
AMD AM5 Socket with B650 Chipset
The AFOX B650D5-MA features an AMD AM5 socket and AMD B650 chipset. It is designed for compatible AMD Ryzen processors, including supported models from the Ryzen 7000, 8000, and 9000 Series, subject to motherboard revision and BIOS compatibility. It is suitable for building a desktop system for gaming, office productivity, creative applications, and demanding multitasking workloads.
Dual-Channel DDR5 RAM Support
This AFOX motherboard features two DDR5 DIMM slots with dual-channel memory support. DDR5 memory offers high bandwidth for compatible applications, helping support responsive multitasking, gaming, and content creation. Check the manufacturer's specifications for supported memory capacities and speeds before purchasing RAM.
NVMe M.2 SSD and SATA Storage Connectivity
The AFOX B650D5-MA includes an M.2 SSD slot for compatible NVMe storage, helping improve operating system boot times, application loading, and file transfer performance. SATA 6Gb/s connectivity also allows users to install compatible SATA SSDs and traditional hard disk drives for additional storage capacity.
PCIe 4.0 Graphics Expansion
The motherboard features a PCI Express 4.0 x16 slot for installing a compatible dedicated graphics card. This provides flexibility for gaming, video editing, graphics design, and other applications that benefit from dedicated GPU performance. Graphics card compatibility depends on the card's physical dimensions, power requirements, and the overall PC configuration.
HDMI and VGA Display Outputs
The AFOX B650D5-MA provides HDMI and VGA display outputs for compatible AMD Ryzen processors with integrated Radeon graphics. These connections offer flexibility when connecting supported monitors for home, office, and multimedia use. A dedicated graphics card may be necessary when using a processor without integrated graphics.
USB 3.2, Gigabit LAN, and HD Audio
This motherboard offers USB 3.2 Gen 1 and USB 2.0 connectivity for compatible peripherals, including keyboards, mice, printers, and external storage devices. Realtek Gigabit Ethernet LAN supports wired network connectivity for browsing, streaming, online gaming, and remote work. The High Definition Audio chipset provides sound for communication and multimedia playback.
Why Choose the AFOX B650D5-MA Motherboard?
The AFOX B650D5-MA is a practical option for users planning a modern AMD AM5 desktop build. Its key features include an AMD B650 chipset, AM5 socket, support for compatible AMD Ryzen processors, two DDR5 DIMM slots, dual-channel memory support, an NVMe M.2 SSD slot, SATA 6Gb/s connectivity, PCIe 4.0 x16 graphics expansion, HDMI and VGA outputs, USB connectivity, Gigabit LAN, and HD Audio. The product is listed with a 3-year official warranty, subject to the applicable warranty terms.
Buy AFOX B650D5-MA AM5 Motherboard from Unix Network
Buy the AFOX B650D5-MA AMD Socket AM5 DDR5 Motherboard from Unix Network in Bangladesh. Explore motherboards, AMD Ryzen processors, DDR5 RAM, NVMe SSDs, graphics cards, and other computer components for your next PC build. Contact Unix Network to confirm the current price, stock availability, processor and BIOS compatibility, and warranty details. Online ordering is available for customers across Bangladesh.
