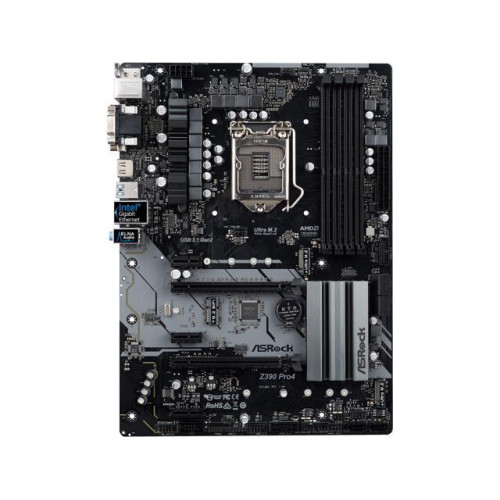

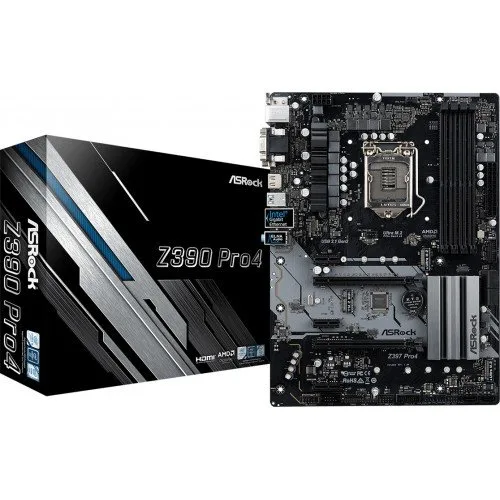

ASRock Z390 Pro4 Motherboard Overview

Basic Information

Supported CPU - Supports 9th and 8th Gen intel Core Processors (Socket 1151)

- Supports CPU up to 95W

- Digi Power design

- 10 Power Phase design

- Supports intel Turbo Boost 2.0 Technology

- Supports intel K-Series unlocked CPUs

- Supports ASRock BCLK Full-range Overclocking

Chipset intel Z390

BIOS - 128Mb AMI UEFI Legal BIOS with multilingual GUI support

- ACPI 6.0 Compliant wake up events

- SMBIOS 2.7 Support

- DRAM, PCH 1.0V, VCCIO, VCCST, VCCSA, VPPM Voltage Multi-adjustment

Form Factor - ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm

- Solid Capacitor design

Expansion Slots

PCI - 2 x PCI Express 3.0 x16 Slots (PCIE2/PCIE4: single at x16 (PCIE2); dual at x16 (PCIE2) / x4 (PCIE4))

- 3 x PCI Express 3.0 x1 Slots (Flexible PCIe)

M.2 Socket - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module and intel CNVi (Integrated WiFi/BT)

Memory

Type Dual Channel DDR4 Memory Technology

Slots 4 x DDR4 DIMM Slots

Supported Memory - Supports DDR4 4300+(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 non-ECC, un-buffered memory

Maximum Mamory 64GB

Graphics

Graphics - HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 (Decode only)

Max Shared Memory 1024MB

Connector & Ports

HDMI 1 x HDMI Port

USB (s) - 2 x USB 2.0 Ports (Supports ESD Protection)

- 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)

- 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)

- 2 x USB 3.1 Gen1 Ports (Supports ESD Protection)

LAN Port (s) - Gigabit LAN 10/100/1000 Mb/s

- Giga PHY intel I219V

- Supports Wake-On-LAN

- Supports Lightning/ESD Protection

- Supports Energy Efficient Ethernet 802.3az

- Supports PXE

Supported Storage 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, intel Rapid Storage Technology 16), NCQ, AHCI and Hot Plu

- 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)

- 1 x Ultra M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)

Audio 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)

Premium Blu-ray Audio support

- Supports Surge Protection

- ELNA Audio Caps

Internal I/O Ports - 1 x COM Port Header

- 1 x TPM Header

- 1 x Power LED and Speaker Header

- 1 x CPU Fan Connector (4-pin)

- 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)

- 1 x 24 pin ATX Power Connector

- 1 x 8 pin 12V Power Connector

- 1 x Front Panel Audio Connector

- 1 x Thunderbolt™ AIC Connector (5-pin)

- 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection)

- 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (Supports ESD Protection)

D-Sub (s) - 1 x D-Sub Port

DVI-D (s) - 1 x DVI-D Port

Warranty Information

Manufacturing Warranty 03 years

Description:

ASRock Z390 Pro4 8th and 9th Gen Motherboard

Description:

What is the price of ASRock Z390 Pro4 8th and 9th Gen Motherboard computer accessories in Bangladesh?

Looking for a reliable and high-performance motherboard for your PC build? Look no further than the ASRock Z390 Pro4 8th and 9th Gen Motherboard available at Unix Network in Jashore, Bangladesh. This motherboard is designed to support the latest Intel 8th and 9th Gen processors, offering unparalleled performance and compatibility. With features such as dual M.2 slots, USB 3.1 Gen2 ports, and support for DDR4 memory, the ASRock Z390 Pro4 is perfect for gaming, content creation, and everyday computing tasks. Upgrade your system with this top-of-the-line motherboard from ASRock, available at Unix Network in Jashore, Bangladesh.

ASRock Z390 Pro4 Motherboard
