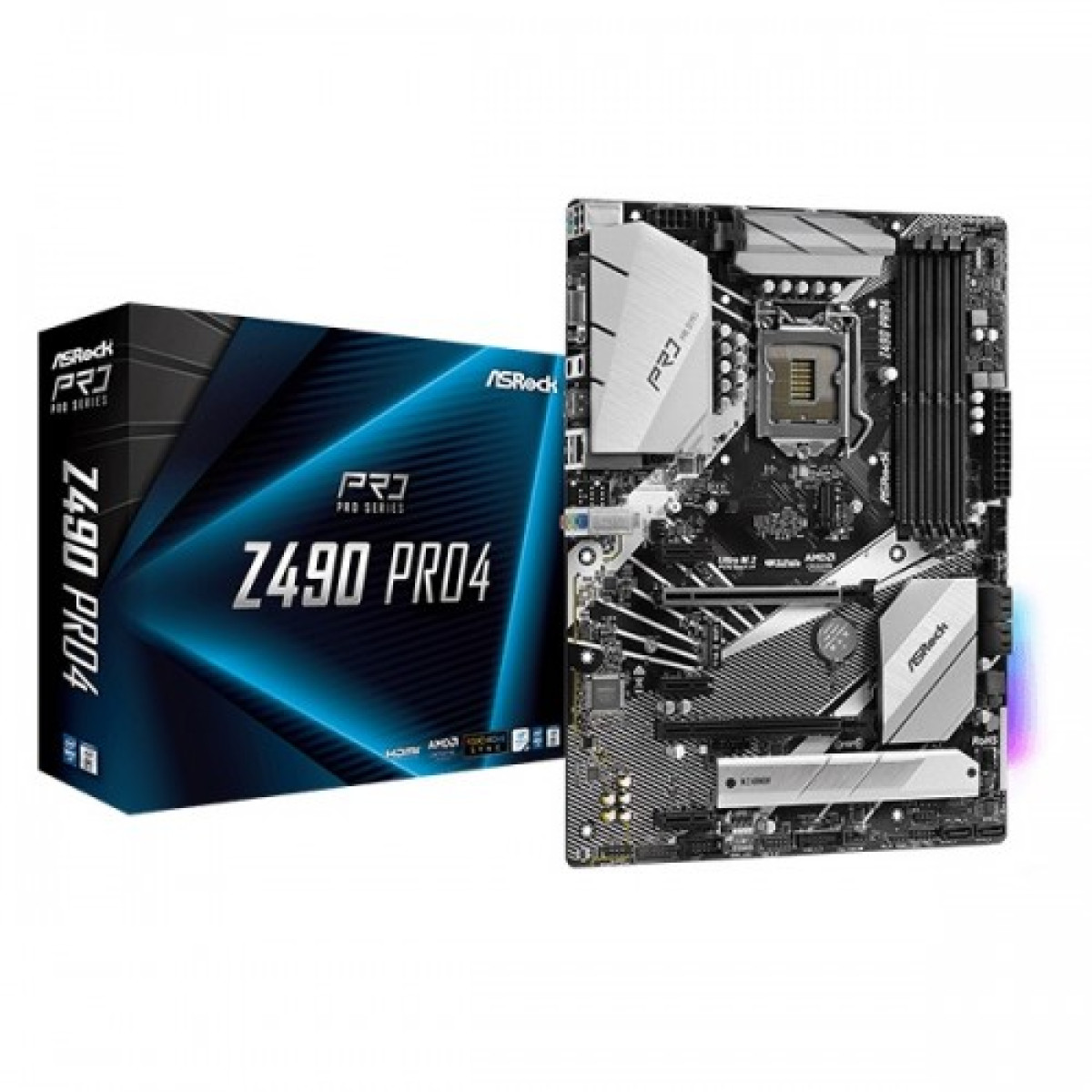

ASRock Z490 Pro4 10th Gen DDR4 Motherboard
৳16,900
Key highlights
- Form Factor: - ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm - Solid Capacitor design
- Supported CPU: Supports 10th Gen Intel® Core™ Processors (Socket 1200) - Digi Power design - 10 Power Phase design - Supports Intel® Turbo Boost Max 3.0 Technology - Supports Intel® K-Series unlocked CPUs - Supports ASRock BCLK Full-range Overclocking
- Chipset: Intel Z490
- Audio: - 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection - PCB Isolate Shielding - Individual PCB Layers for R/L Audio Channel - Nahimic Audio
- BIOS: - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core/Cache, GT, DRAM, PCH, VCCIO, VCCST, VCCSA Voltage Multi-adjustment
Description
Get the Best Performance with ASRock Z490 Pro4 Motherboard
ASRock Z490 Pro4 10th Gen DDR4 Motherboard
The ASRock Z490 Pro4 motherboard is a robust solution designed for enthusiasts seeking to build a powerful PC around Intel's 10th generation processors. This motherboard supports DDR4 memory up to 4800MHz (OC), ensuring high-speed performance for gaming, content creation, and multitasking. It features a sleek black and silver design that complements any build, making it a stylish addition to your setup.
Equipped with 4 DIMM slots, the Z490 Pro4 allows for a maximum of 128GB RAM, providing ample memory for demanding applications. The motherboard also comes with PCIe 3.0 slots for expansion cards, ensuring that you can upgrade your system as needed. With its advanced 12-phase power design, this motherboard delivers stable power to the CPU, enhancing performance and longevity.
Connectivity is a breeze with the ASRock Z490 Pro4. It offers USB 3.2 Gen 2 and multiple USB 3.1 ports for rapid data transfer, along with integrated Gigabit LAN for high-speed internet access. Additionally, it features support for Intel Optane Memory, allowing users to enhance storage performance significantly. For the best audio experience, the motherboard includes the Realtek ALC892 audio codec, providing crystal-clear sound quality for gamers and media enthusiasts alike.
Upgrade to ASRock Z490 Pro4 for Enhanced Gaming Experience
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | - ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm - Solid Capacitor design |
| Supported CPU | Supports 10th Gen Intel® Core™ Processors (Socket 1200) - Digi Power design - 10 Power Phase design - Supports Intel® Turbo Boost Max 3.0 Technology - Supports Intel® K-Series unlocked CPUs - Supports ASRock BCLK Full-range Overclocking |
| Chipset | Intel Z490 |
| Audio | - 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection - PCB Isolate Shielding - Individual PCB Layers for R/L Audio Channel - Nahimic Audio |
| BIOS | - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core/Cache, GT, DRAM, PCH, VCCIO, VCCST, VCCSA Voltage Multi-adjustment |
| Expansion Slots | |
| M.2 Socket | - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module and Intel CNVi (Integrated WiFi/BT) |
| PCI | - 2 x PCI Express 3.0 x16 Slots (PCIE2/PCIE4: single at x16 (PCIE2); dual at x16 (PCIE2) / x4 (PCIE4)* - 3 x PCI Express 3.0 x1 Slots |
| Graphics Specifications | |
| Graphics | - Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1** - Graphics, Media & Compute: Microsoft® DirectX 12, OpenGL 4.5, Intel® Built In Visuals, Intel® Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1 - Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft® PlayReady 3.0, Intel® SGX Content Protection, UHD/HDR Blu-ray Disc - Dual graphics output: support HDMI and D-Sub ports by independent display controllers - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) - Supports HDCP 2.3 with HDMI 1.4 Port - Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port |
| Memory Specifications | |
| Maximum Size | 128GB |
| Slots | 4 x DDR4 DIMM Slots |
| Supported Memory | - Dual Channel DDR4 Memory Technology - Supports DDR4 4400+(OC)* / 4333(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Supports Intel Extreme Memory Profile (XMP) 2.0 - 15μ Gold Contact in DIMM Slots |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| D-Sub (s) | -1 x D-Sub Port |
| HDMI | 1 x HDMI |
| LAN Port (s) | 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
| Supported Storage | - 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage |
| USB (s) | 1 x USB 2.0 Headers 2 x USB 3.2 Gen1 |
| Internal I/O Connectors | - 2 x Antenna Mounting Points - 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x HDMI Port - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Special | |
| Bundled Software | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Polychrome SYNC - ASRock XFast LAN UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Instant Flash - ASRock Internet Flash - ASRock Easy RAID Installer |
| Special Feature | ASRock USB 3.2 Gen2 - ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s) - ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s) ASRock Super Alloy - Premium 50A Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology ASRock Steel Slots ASRock Full Coverage M.2 Heatsink ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
| WARRANTY | |
| Manufacturing Warranty | 03 Years Warranty |
