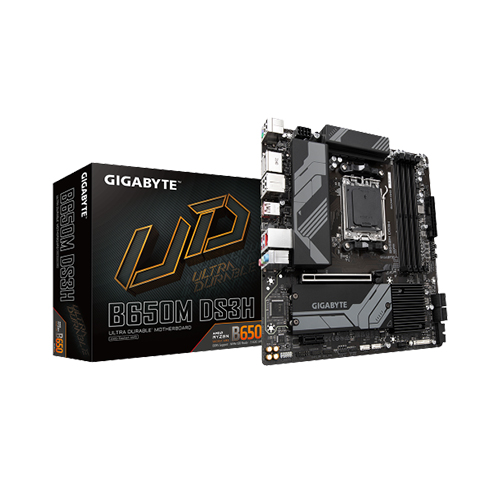

GIGABYTE B650M DS3H DDR5 AMD AM5 Micro-ATX Motherboard
- Brand:Asus
- Product Code: B650M DS3H DDR5
- Availability:Out of Stock
- Updated:
Specification
| BASIC INFORMATION | |
| Graphics | ntegrated Graphics Processor: 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version and HDR. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. Support for up to 3 displays at the same time |
|---|---|
| Raid controller | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| SpecialFeatures | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus |
| Supported CPU | AMD Socket AM5, support for: AMD Ryzen 7000 Series Processors |
| Chipset | AMD B650 |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Type | DDR5 |
| Expansion Slots | |
| PCI | CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) |
| Memory Specifications | |
| Maximum Memory | 128GB |
| Supported Memory | Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules |
| PORTS, CONNECTORS & SLOTS | |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Supported Storage | CPU: 2 x M.2 connectors (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) Chipset: 4 x SATA 6Gb/s connectors |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| USB (s) | CPU: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel CPU + USB 2.0 Hub: 4 x USB 2.0/1.1 ports on the back panel Chipset: 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Special | |
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
| WARRANTY | |
| Manufacturing Warranty | 3 Years |
Description
Elevate Your Gaming Experience with GIGABYTE B650M DS3H
Experience the next level of performance with the GIGABYTE B650M DS3H DDR5 AMD AM5 Micro-ATX Motherboard. This advanced motherboard is designed for gamers and content creators alike, offering exceptional speed and reliability. With support for the latest AMD Ryzen processors, this motherboard ensures that you can take full advantage of the power and efficiency of the newest technology.
The B650M DS3H features DDR5 memory support, allowing for faster data transfer and improved system responsiveness. The compact Micro-ATX form factor is ideal for those looking to build a powerful yet space-efficient system. Additionally, with multiple PCIe slots, you can easily upgrade your graphics and storage options.
One of the standout features is its robust thermal design, ensuring optimal performance during intense gaming sessions. The motherboard also includes advanced connectivity options such as USB 3.2 and HDMI ports, making it versatile for various setups. Choose the GIGABYTE B650M DS3H for your next build and enjoy a seamless computing experience.
