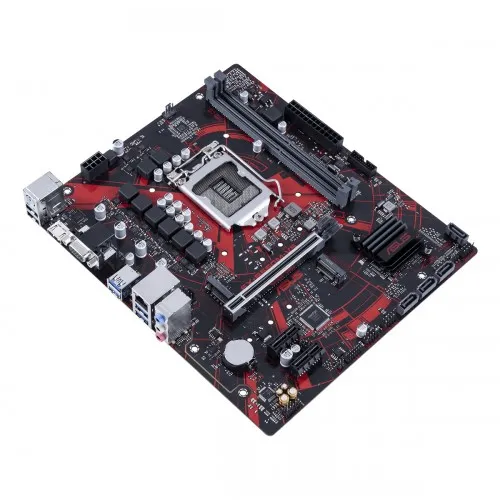

ASUS Expedition EX-B560M-V5 Intel 10th and 11th Gen M-ATX Motherboard
Key highlights
- Form Factor: 8.9 inch x 8.3 inch ( 22.6 cm x 21.1 cm )
- Supported CPU: Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold, and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 Supports CPU up to 125 W
- Chipset: Intel B460
- Memory: 64 GB
- Slots: 2 x DDR4 DIMM
Genuine products with manufacturer warranty where applicable. Keep your invoice for warranty claims.
Contact us within the return window for defective or wrong items. Open-box returns may vary by category.
Description
Shop Intel 10th & 11th Gen M-ATX Motherboard Online
Experience Unmatched Performance with ASUS Expedition EX-B560M-V5
The ASUS Expedition EX-B560M-V5 is a high-quality M-ATX motherboard designed for both Intel 10th and 11th Generation processors. This motherboard is perfect for gamers, content creators, and everyday users who demand reliability and performance. With its robust construction and advanced features, the EX-B560M-V5 enhances your computing experience.
Equipped with dual M.2 slots for lightning-fast SSDs, this motherboard supports the latest storage technologies, ensuring quick data access and improved system responsiveness. The Intel B560 chipset allows for overclocking, giving users the flexibility to optimize their systems for gaming or productivity tasks.
Debugging is made easy with the Q-LED indicators, providing instant feedback on system health, while the Fan Xpert 2+ technology allows for customized cooling solutions, ensuring your system runs cool and quiet even under heavy loads. Additionally, the motherboard features a high-quality audio codec for immersive sound experiences, making it an excellent choice for media consumption.
With a stylish design and superior build quality, the ASUS Expedition EX-B560M-V5 stands out in any PC setup. Upgrade your system today and experience the performance and reliability that ASUS is known for!
Features of ASUS Expedition EX-B560M-V5 Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | 8.9 inch x 8.3 inch ( 22.6 cm x 21.1 cm ) |
| Supported CPU | Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold, and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 Supports CPU up to 125 W |
| Chipset | Intel B460 |
| Memory | 64 GB |
| Slots | 2 x DDR4 DIMM |
| Audio | Realtek ALC887 7.1-Channel High Definition Audio CODEC |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Expansion Slots | |
| M.2 Socket | M.2_1 slot (Key M), type 2242/2260/2280 - Only Intel 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel B560 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) |
| PCI | Intel 10th Gen Processors 1 x PCIe 3.0/2.0 x16 Intel B460 Chipset 2 x PCIe 3.0 x1 |
| Graphics Specifications | |
| Graphics | 1 x D-Sub 1 x HDMI 1.4 / 2.0*** ** Only Intel 11th Gen processors support HDMI 2.0 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates. |
| Memory Specifications | |
| Supported Memory | 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3333(OC)/ 3200(OC)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered memory* Supports Intel Extreme Memory Profile (XMP) *10th Gen Intel Core i7/i9 processors support 2933/ 2800/ 2666/ 2400/ 2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. * 11th Gen Intel processors support 2933/ 2800/ 2666/ 2400/ 2133 natively * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types. |
| Type | Dual Channel Memory Architecture |
| PORTS, CONNECTORS & SLOTS | |
| D-Sub (s) | 1 x D-Sub |
| HDMI | 1 x HDMI 1.4 / 2.0 |
| LAN Port (s) | 1 x Realtek 1Gb Ethernet ASUS LANGuard |
| Supported Storage | Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel 11th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Only Intel 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel B560 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports |
| USB (s) | Rear USB:Total 6 ports 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB:Total 6 ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers supports additional 4 USB 2.0 ports |
| Internal I/O Connectors | 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x AAFP connector 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel connector(s) 1 x COM Debug header 1 x Clear CMOS jumper(s) 1 x USB 3.2 Gen 1 connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) |
| Special | |
| Special Feature | ASUS 5X Protection III : - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS SafeSlot Core+ - Prevent graphics card damage - ASUS DIGI+ VRM: Premium components provide better power efficiency Non-stop Durability : - Anti-moisture coating - Outstanding protection against moisture and corrosion - USBGuard- 120% higher voltage tolerance Non-stop Gaming : - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Seperated layers for left and right tracks to ensures both channels delivering the consistent and equal quality - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity Non-stop Challenger : - ASUS iCafe Labs Certified - Top games and 100+ peripherals tested |
| WARRANTY | |
| Manufacturing Warranty | 3 Years |
