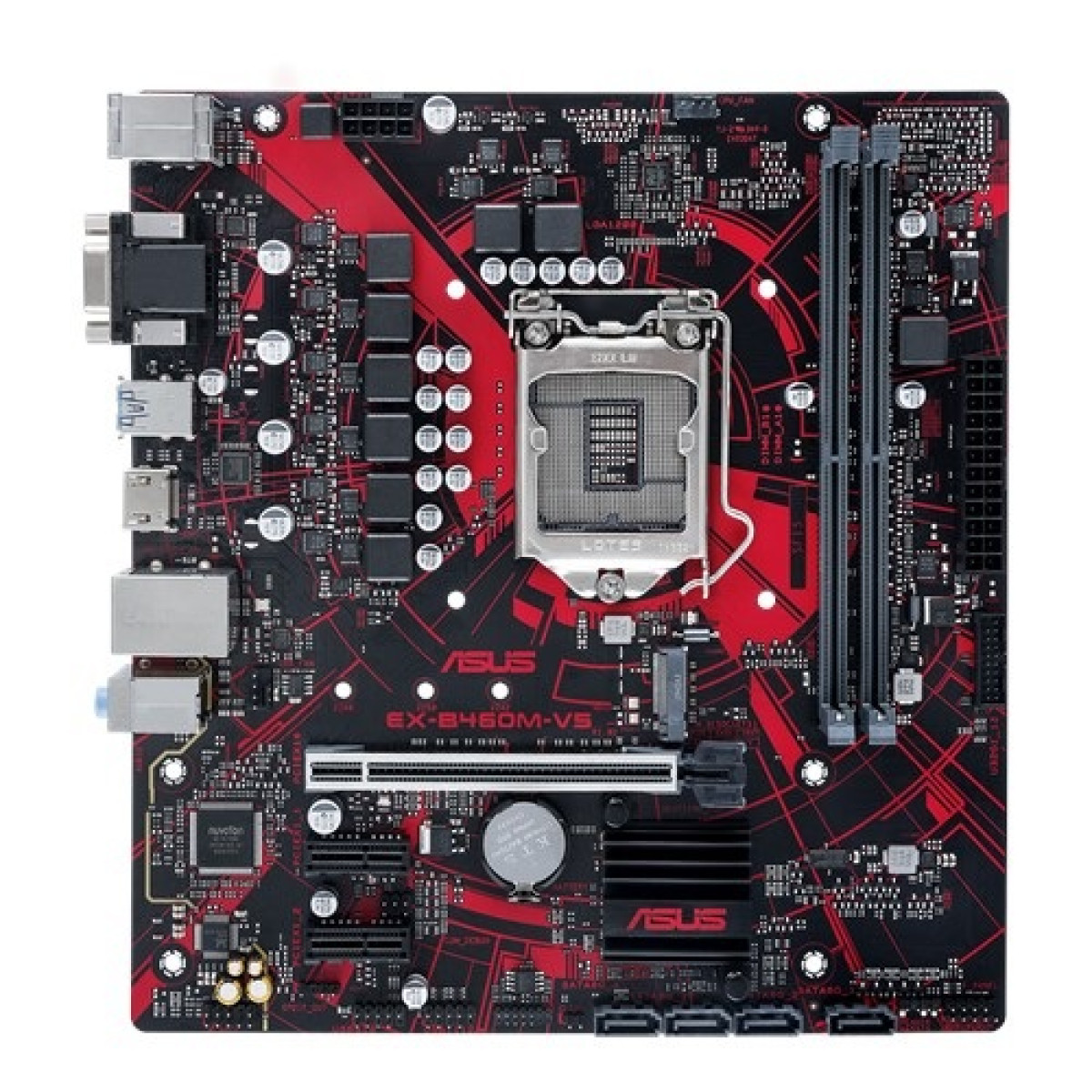

ASUS Expedition EX-B460M-V5 Intel 10th Gen M-ATX Motherboard
- Brand:Asus
- Product Code: ASUS Expedition EX-B460M-V5
- Availability:Out of Stock
- Updated:
Specification
| BASIC INFORMATION | |
| Form Factor | mATX Form Factor 8.9 inch x 8.3 inch ( 22.6 cm x 21.1 cm ) |
|---|---|
| Supported CPU | Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold, and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 Supports CPU up to 125 W |
| Chipset | Intel B460 |
| Memory | 64 GB |
| Slots | 2 x DDR4 DIMM |
| Audio | Realtek ALC887 7.1-Channel High Definition Audio CODEC |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Expansion Slots | |
| PCI | Intel 10th Gen Processors 1 x PCIe 3.0/2.0 x16 Intel B460 Chipset 2 x PCIe 3.0 x1 |
| Graphics Specifications | |
| Graphics | Integrated Graphics Processor Multi-VGA output support: HDMI/D-Sub ports - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 30 Hz - Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz |
| Memory Specifications | |
| Supported Memory | 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory 10th Gen Intel Corei9/ i7 CPUs support: 2933/ 2800/ 2666/ 2400/ 2133 natively Supports Intel Extreme Memory Profile (XMP) OptiMem |
| PORTS, CONNECTORS & SLOTS | |
| D-Sub (s) | 1x D-sub (max. resolution 1920 x 1200 @ 60 Hz) |
| HDMI | 1 x HDMI 1.4b (max. resolution 4096 x 2160 @ 30 Hz) |
| LAN Port (s) | Realtek RTL8111H ASUS LANGuard |
| Supported Storage | 4 x SATA 6Gb/s connector(s) |
| USB (s) | Rear USB Port ( Total 6 ) 4 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(4 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(2 x Type-A) 4 x USB 2.0 port(s)(4 x Type-A) |
| Internal I/O Connectors | 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x AAFP connector 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel connector(s) 1 x COM Debug header 1 x Clear CMOS jumper(s) 1 x USB 3.2 Gen 1 connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) |
| Special | |
| Special Feature | ASUS 5X Protection III : - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS SafeSlot Core+ - Prevent graphics card damage - ASUS DIGI+ VRM: Premium components provide better power efficiency Non-stop Durability : - Anti-moisture coating - Outstanding protection against moisture and corrosion - USBGuard- 120% higher voltage tolerance Non-stop Gaming : - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Seperated layers for left and right tracks to ensures both channels delivering the consistent and equal quality - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity Non-stop Challenger : - ASUS iCafe Labs Certified - Top games and 100+ peripherals tested |
| WARRANTY | |
| Manufacturing Warranty | 03 Years |
Description
Discover the Power of ASUS Expedition EX-B460M-V5 Motherboard
The ASUS Expedition EX-B460M-V5 is a premium M-ATX motherboard designed to harness the full potential of Intel's 10th Generation processors. This motherboard is perfect for gamers, content creators, and everyday users who demand reliability and performance. With support for Intel Turbo Boost Technology, users can experience enhanced processing speeds for more responsive gameplay and multitasking capabilities.
Equipped with dual-channel DDR4 memory support, the EX-B460M-V5 allows for up to 64GB of RAM, ensuring smooth performance even under heavy load. The motherboard also features advanced connectivity options, including USB 3.2 Gen 2 Type-A and Type-C ports, providing high-speed data transfer for all your peripherals.
Additionally, this model integrates ASUS' proprietary SafeSlot technology, ensuring that your graphics cards remain securely in place, even during intense gaming sessions. With an intuitive UEFI BIOS interface, overclocking and system adjustments become a breeze. The EX-B460M-V5 motherboard is not just a piece of hardware; it’s a gateway to superior computing experiences.
