| BASIC INFORMATION | |
| Form Factor | uATX Form Factor 8.3 inch x 7.1 inch ( 21.08 cm x 18.03 cm ) |
| Graphics | VGA output support : RGB port - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz |
| Slots | 2 x DIMM |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 2.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified Log, F12 PrintScreen function, and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Type | DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory |
| Expansion Slots | |
| PCI | 1 x PCIe 3.0/2.0 x16 (x16 mode) 2 x PCIe 2.0 x1 |
| Graphics Specifications | |
| Max Shared Memory | 1024 MB |
| Memory Specifications | |
| Maximum Memory | The maximum memory frequency supported varies by processor |
| Supported Memory | Due to Intel® chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel® processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz. ** Due to Intel® chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel® processors will run at the maximum transfer rate of DDR4 2133MHz. |
| PORTS, CONNECTORS & SLOTS | |
| LAN Port (s) | Realtek® RTL8111H |
| Supported Storage | Intel® H110 Chipset : 4 x SATA 6Gb/s port(s), gray, Intel® Rapid Storage Technology supports*2 |
| TPM (Trusted Platform Module ) | 1 x 14-1 pin TPM connector |
| USB (s) | Intel® H110 chipset : 4 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, 2 at mid-board) Intel® H110 chipset : 6 x USB 2.0/1.1 port(s) (4 at back panel, black, 2 at mid-board) |
| WARRANTY | |
| Manufacturing Warranty | 03 Years |

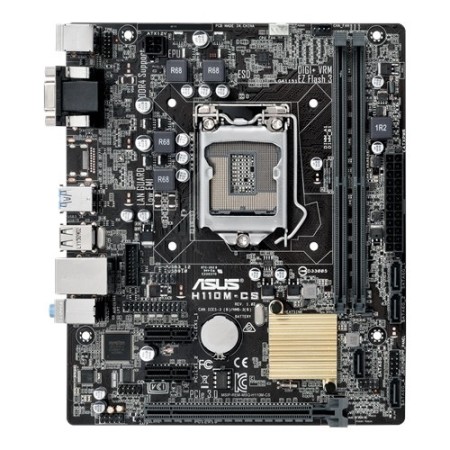

Asus H110M-CS 7th & 6th gen supreme motherboard compatible with Intel (Socket 1151) i3, i5 & i7 processor. This ultrafast dual channel max DDR4 supported maximum 32GB memory and it has the capability of fast SATA supported storage and Advanced hardware safeguards for all-round protection. If we consider the graphics of this LED lighting board, it will support Intel HD graphics having the maximum resolution of 1920 x 1200 @ 60 Hz for VGA output. This Media-acclaimed UEFI BIOS with EZ Flash 3 board has Fan Xpert advanced fan controls for ultimate cooling and silent performance and Easy PC DIY with safe motherboard-mounting.
Purchase quality Asus budget mainboard for your desktop to have optimum performance. Shop online from Unix Network with the best deal and have the delivery all over Bangladesh.
Looking for a reliable and high-quality motherboard for your computer build? Look no further than the Asus H110M-CS micro-ATX motherboard. Compatible with 7th and 6th generation Intel processors, this motherboard offers excellent performance and stability for your system. With features like USB 3.0 support, DDR4 memory compatibility, and PCIe slots for expansion, this motherboard is perfect for gamers, content creators, and professionals alike. Upgrade your PC build with the Asus H110M-CS motherboard, available at Computer Shop Unix Network in Jashore, Bangladesh.
