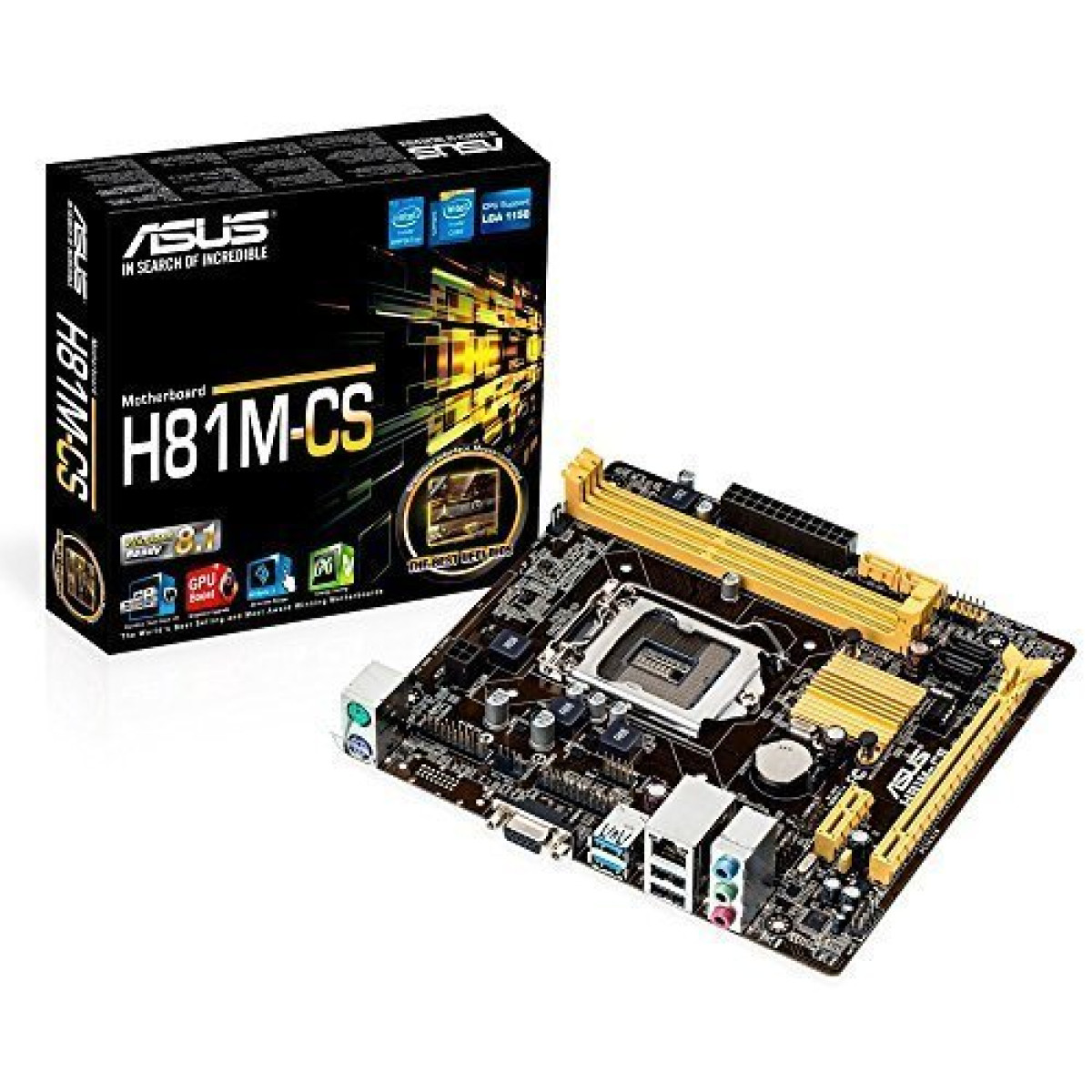

ASUS H81M-CS 4th Gen Intel Motherboard
Key highlights
- Form Factor: uATX Form Factor 7.5 inch x 7.0 inch ( 19 cm x 17.7 cm )
- Supported CPU: Intel Socket 1150 for 4th Generation Core i7/Core i5/Core i3/Pentium /Celeron Processors Supports Intel 22 nm CPU Supports Intel Turbo Boost Technology 2.0 - The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
- Chipset: Intel H81
- Slots: 2 x DIMM, Max. 16GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture
- Audio: Realtek® ALC887 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Front Panel Jack-retasking - 3 x Audio jack(s) - 1 x Front panel audio connector(s) (AAFP)
Description
Upgrade Your PC with ASUS H81M-CS at Unix Network
ASUS H81M-CS 4th Gen Intel Motherboard
The ASUS H81M-CS motherboard is a robust option for PC builders looking for stability and performance. Designed for 4th Generation Intel processors, this motherboard supports Intel Core, Pentium, and Celeron CPUs, providing users with a wide range of options to suit their computing needs. With its micro ATX form factor, it fits easily into various cases, making it ideal for compact builds.
One of the standout features of the H81M-CS is its Dual-channel DDR3 memory support. It allows for up to 16GB of RAM, ensuring smooth multitasking and enhanced performance during demanding tasks. Additionally, the motherboard includes USB 3.0 ports for faster data transfer speeds, an essential feature for modern peripherals.
The ASUS H81M-CS also offers high-quality audio with its onboard 8-channel HD audio codec, delivering a rich sound experience for gamers and multimedia enthusiasts. Its Smart DIY features ensure easy installation and system management, making it an excellent choice for both novice and experienced builders.
Reliable Performance with ASUS H81M-CS Motherboard Features
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | uATX Form Factor 7.5 inch x 7.0 inch ( 19 cm x 17.7 cm ) |
| Supported CPU | Intel Socket 1150 for 4th Generation Core i7/Core i5/Core i3/Pentium /Celeron Processors Supports Intel 22 nm CPU Supports Intel Turbo Boost Technology 2.0 - The Intel Turbo Boost Technology 2.0 support depends on the CPU types. |
| Chipset | Intel H81 |
| Slots | 2 x DIMM, Max. 16GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture |
| Audio | Realtek® ALC887 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Front Panel Jack-retasking - 3 x Audio jack(s) - 1 x Front panel audio connector(s) (AAFP) |
| BIOS | BIOS 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Expansion Slots | |
| PCI | 1 x PCIe 2.0 x16 1 x PCIe 2.0 x1 |
| Graphics Specifications | |
| Max Shared Memory | 1024 MB |
| Graphics | Integrated Graphics Processor - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 1024 MB - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface |
| Memory Specifications | |
| Supported Memory | Supports Intel Extreme Memory Profile (XMP) - Hyper DIMM support is subject to the physical characteristics of individual CPUs. - Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). - Due to Intel chipset limitation, DDR3 1600 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR3 1600 Mhz. |
| Type | DDR3 |
| PORTS, CONNECTORS & SLOTS | |
| D-Sub (s) | 1 x D-Sub |
| LAN Port (s) | Realtek 8111GR, 1 x Gigabit LAN Controller(s) - 1 x LAN (RJ45) port(s) |
| Supported Storage | 2 x SATA 6Gb/s port(s), yellow 2 x SATA 3Gb/s port(s), dark brown, Supports Intel Rapid Start Technology, Intel Smart Connect Technology |
| USB (s) | 2 x USB 3.1 Gen 1 port(s) (2 at back panel, blue) 6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board) - 2 x USB 3.1 Gen 1 (blue) - 2 x USB 2.0 - 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) |
| Internal I/O Connectors | 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x LPT header 1 x COM port(s) connector(s) 2 x SATA 6Gb/s connector(s) 2 x SATA 3Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x Chassis Intrusion connector(s) |
| Special | |
| Special Feature | ASUS EPU : - EPU ASUS Exclusive Features : - GPU Boost - AI Suite 3 - Ai Charger - Anti-Surge - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - Disk Unlocker ASUS Quiet Thermal Solution : - ASUS Fan Xpert ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 ASUS Q-Design : - ASUS Q-Slot - ASUS Q-DIMM |
| WARRANTY | |
| Manufacturing Warranty | 03 Years Warranty |
