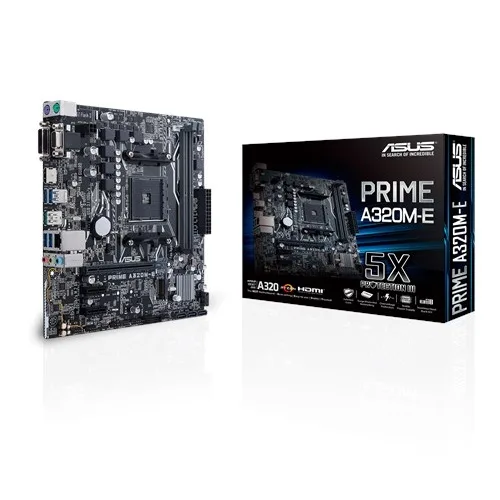

Asus Prime A320M-E AMD AM4 uATX Motherboard
- Brand: Asus
- Product Code: Asus Prime A320M-E
- Availability: Out of Stock
- Updated:
Specification
| BASIC INFORMATION | |
| Form Factor | mATX Form Factor 8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm ) |
|---|---|
| Supported CPU | AMD AM4 Socket for 3rd/ 2nd/ 1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/Athlon with Radeon Vega Graphics/7th Generation A-series/Athlon X4 Processors |
| Chipset | AMD A320 |
| Memory | 64GB for 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors 32GB for AMD 7th Generation A-Series/Athlon X4 Processors |
| Slots | 2 |
| Audio | Realtek ALC887 8-Channel High Definition Audio CODEC |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP,WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control |
| Expansion Slots | |
| M.2 Socket | 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD Athlon with Radeon Vega Graphics/ 7th Generation A-Series/ Athlon X4 Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode) |
| PCI | 3rd/2nd/1st Gen AMD Ryzen Processors 1 x PCIe 3.0/2.0 x16 (x16 mode) 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics /7th Generation A-series/Athlon X4 Processors 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD Athlon with Radeon Vega Graphics Processors 1 x PCIe 3.0/2.0 x16 (max at x4 mode) AMD A320 chipset 2 x PCIe 2.0 x1 |
| Graphics Specifications | |
| Max Shared Memory | 2048 MB |
| Graphics | Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics /Athlon with Radeon Vega Graphics /7th Generation A-Series APU Multi-VGA output support : HDMI/DVI-D/RGB ports - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz |
| Memory Specifications | |
| Supported Memory | 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz ECC and non-ECC, Un-buffered Memory AMD 7th Generation A-Series/Athlon X4 Processors DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory |
| Type | Dual Channel Memory Architecture |
| PORTS, CONNECTORS & SLOTS | |
| DVI-D (s) | 1x DVI-D with max. resolution 1920 x 1200 @ 60 Hz |
| HDMI | 1 x HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz |
| LAN Port (s) | Realtek RTL8111H, 1 x Gigabit LAN Controller(s) |
| Supported Storage | AMD A320 chipset : 4 x SATA 6Gb/s port(s), gray, Support Raid 0, 1, 10 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon™ Vega Graphics : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD Athlon with Radeon Vega Graphics/ 7th Generation A-Series/ Athlon X4 Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode) |
| USB (s) | 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics/ 7th Generation A-series/ Athlon X4 Processors : 4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue) AMD A320 chipset : 2 x USB 3.1 Gen 1 port(s) (2 at mid-board) ASMedia USB 3.2 Gen 2 controller : 1 x USB 3.1 Gen 2 port(s) (1 at back panel, teal blue, Type-A) AMD A320 chipset : 4 x USB 2.0 port(s) (4 at mid-board) |
| Internal I/O Connectors | 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x Speaker connector |
| Special | |
| Special Feature | ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: 6 Phase digital power design ASUS Exclusive Features : - AI Suite 3 - Ai Charger ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - Multi-language BIOS ASUS Q-Design : - ASUS Q-Slot - ASUS Q-DIMM |
| WARRANTY | |
| Manufacturing Warranty | 03 years |
Description
Asus Prime A320M-E AMD AM4 uATX Motherboard
The Asus Prime A320M-E is a cutting-edge motherboard designed for the AMD AM4 platform, providing a robust foundation for your computing needs. With its uATX form factor, it fits perfectly in compact cases, making it an ideal choice for both home and office setups. This motherboard supports a wide range of AMD Ryzen processors, ensuring you can harness the full power of your CPU for multitasking, gaming, and productivity.
One of the standout features of the A320M-E is its dual-channel DDR4 memory support, allowing for faster data transfer rates and improved performance. With a maximum RAM capacity of 32GB, you can run multiple applications simultaneously without any lag. Furthermore, the motherboard comes equipped with multiple connectivity options, including USB 3.1, HDMI, and VGA ports, ensuring compatibility with a variety of devices.
Designed for durability, the Asus Prime A320M-E features high-quality capacitors and a reinforced PCIe slot, providing stability and longevity. Additionally, the motherboard is backed by Asus's 5X Protection III technology, ensuring your components are safe from electrical hazards. If you're looking for a reliable and versatile motherboard that caters to both casual users and tech enthusiasts alike, the Asus Prime A320M-E is an excellent choice.
