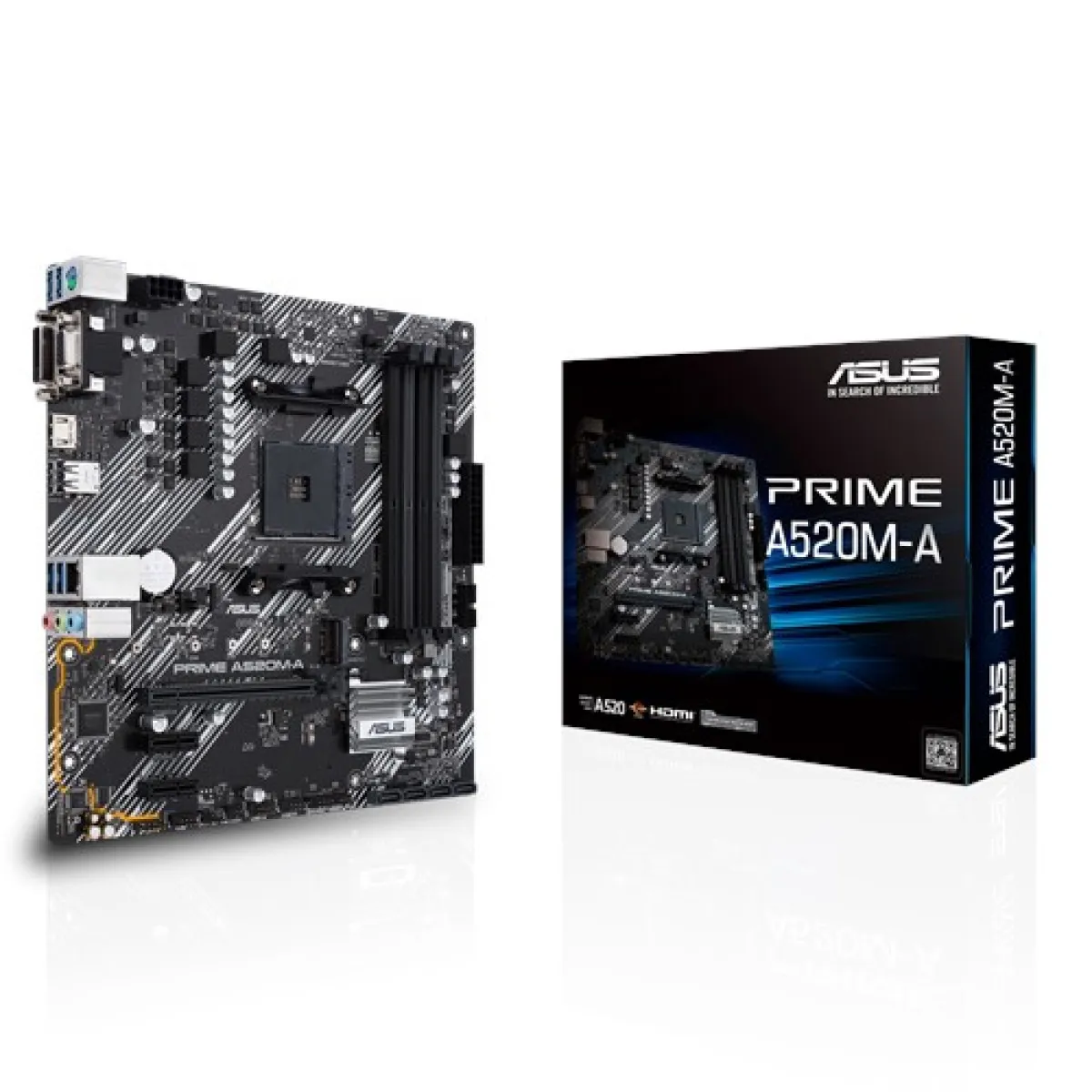

Asus Prime A520M-A Micro ATX AM4 Motherboard
- Brand:Asus
- Product Code: Asus Prime A520M-A
- Availability:Out of Stock
- Updated:
Specification
| BASIC INFORMATION | |
| Form Factor | mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
|---|---|
| Supported CPU | AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors |
| Chipset | AMD A520 |
| Memory | 128GB |
| Slots | 4 x DIMM slots |
| Audio | Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - LED-illuminated design - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Expansion Slots | |
| M.2 Socket | 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support |
| PCI | 3rd Gen AMD Ryzen and 3rd Gen AMD Ryzen with Radeon Graphics Processors 1 x PCIe 3.0 x16 (x16 mode) AMD A520 Chipset 2 x PCIe 3.0 x1 |
| Graphics Specifications | |
| Graphics | Integrated Graphics in the 3rd Gen AMD Ryzen with Radeon Graphics Processors 1 x D-Sub 1 x DVI-D 1 x HDMI 2.1(4K@60HZ) |
| Memory Specifications | |
| Supported Memory | 4800(O.C.)/ 4600(O.C)/ 4466(O.C.)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/3000/ 2800/2666/ 2400/ 2133 MHz Un-buffered Memory ECC Memory (ECC mode) support varies by CPU |
| Type | Dual Channel Memory Architecture |
| PORTS, CONNECTORS & SLOTS | |
| D-Sub (s) | 1 x D-Sub |
| DVI-D (s) | 1 x DVI-D |
| HDMI | 1 x HDMI 2.1(4K@60HZ) |
| LAN Port (s) | Realtek RTL8111H 1Gb Ethernet ASUS LANGuard |
| Supported Storage | Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports 3rd Gen AMD Ryzen and 3rd Gen AMD Ryzen with Radeon Graphics Processors : 1 x M.2 Socket 3, with M Key, Type 2242/ 2260/ 2280/ 22110 (PCIE 3.0 x4 and SATA modes) storage devices support AMD A520 Chipset : 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 |
| USB (s) | Rear USB Port ( Total 6 ) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s)(4 x Type-A) |
| Internal I/O Connectors | 1 x CPU Fan connector(s) 2 x Chassis Fan connector(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header |
| Special | |
| Special Feature | ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 2+ - Lighting Control - EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS 5X PROTECTION III - ASUS DIGI+ VRM - ASUS LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - Aluminum heatsink design |
| WARRANTY | |
| Manufacturing Warranty | 03 Years Warranty |
Description
Asus Prime A520M-A Micro ATX AM4 Motherboard
The Asus Prime A520M-A Micro ATX AM4 Motherboard is engineered for those who demand performance and reliability. Designed for AMD Ryzen processors, this motherboard provides a solid foundation for your PC build. With dual M.2 slots and USB 3.2 Gen 1 Type-A ports, you'll enjoy rapid data transfer speeds. The Comprehensive cooling options ensure your system runs smoothly under heavy loads, while the Easy BIOS update feature allows you to keep your system up to date effortlessly. This motherboard supports up to 128GB of DDR4 RAM, allowing for seamless multitasking and improved performance in demanding applications.
Additionally, the Asus Prime A520M-A is equipped with AI noise-canceling technology, enhancing your audio experience during gaming or video calls. The Durable components and 5X Protection II technology guarantee longevity and stability, making it a reliable choice for both gamers and professionals alike. Upgrade your computing experience with the Asus Prime A520M-A and enjoy the superior performance it delivers.
