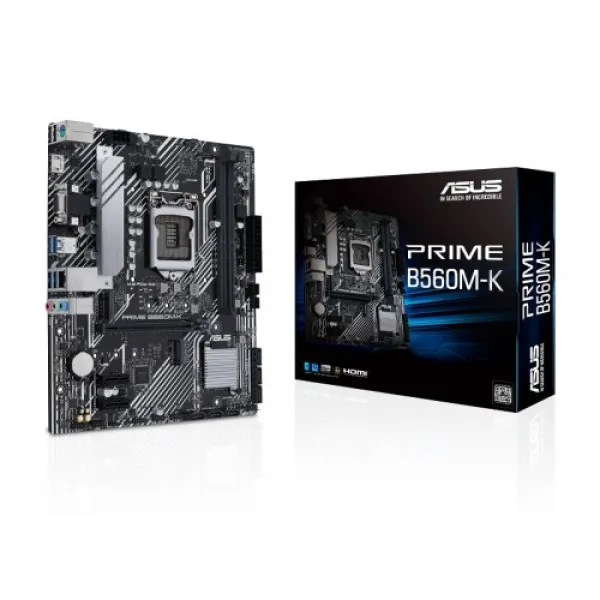

ASUS PRIME B560M-K Intel 10th and 11th Gen Micro ATX Motherboard
৳9,900
Key highlights
- Form Factor: microATX 9.6 inch x 8.3 inch(24.4cm x 21.1cm)
- Supported CPU: Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
- Chipset: Intel B560 Chipset
- Memory: 64GB
- Slots: Dual Channel Memory Architecture
Description
High-Performance ASUS PRIME B560M-K for Your Build
ASUS PRIME B560M-K: Unleash Your System's Potential
The ASUS PRIME B560M-K Micro ATX motherboard is designed to offer exceptional performance for Intel 10th and 11th Gen processors. With its advanced features and robust build quality, this motherboard is perfect for gamers, content creators, and everyday users who demand reliability and speed. Experience superior multitasking capabilities with support for up to 64GB of DDR4 RAM, ensuring smooth operation even during resource-intensive tasks.
Featuring multiple connectivity options, including PCIe 4.0 support, you can enhance your system with high-speed graphics cards and SSDs. The ASUS AI Noise-Canceling Microphone technology elevates your communication quality during online gaming or video calls. Additionally, the 5X Protection III hardware safeguards ensure durability and longevity, making it a solid investment for years to come.
The ASUS PRIME B560M-K also includes comprehensive cooling features, such as customizable fan controls and thermal sensors, providing optimal thermal management for your components. With an intuitive UEFI BIOS, you can easily tweak settings for improved performance or stability.
Explore Features of ASUS PRIME B560M-K Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | microATX 9.6 inch x 8.3 inch(24.4cm x 21.1cm) |
| Supported CPU | Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel B560 Chipset |
| Memory | 64GB |
| Slots | Dual Channel Memory Architecture |
| Audio | 3 x Audio jacks |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Expansion Slots | |
| M.2 Socket | M.2_1 slot (Key M), type 2242/ 2260/ 2280 M.2_2 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 3.0 x4 & SATA modes) |
| PCI | Intel 11th &10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot - Intel11th Gen processors support PCIe 4.0 x16 mode - Intel10th Gen processors support PCIe 3.0 x16 mode Intel B560 Chipset 2 x PCIe 3.0 x1 slots |
| Graphics Specifications | |
| Graphics | 1 x D-Sub 1 x HDMI 2.0 |
| Memory Specifications | |
| Supported Memory | 5000(OC)/ 4800(OC)/ 4600(OC)/4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/3600(OC)/ 3466(OC)/ 3333(OC)/ 3200(OC)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) -10th Gen Intel Core i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. -11th Gen Intel processors support 2933/2800/2666/2400/2133 natively. |
| Type | Memory Channels:2DDR4 (Dual Channel) |
| PORTS, CONNECTORS & SLOTS | |
| D-Sub (s) | 1 x D-Sub port |
| HDMI | 1 x HDMI port |
| Supported Storage | M.2_1 slot (Key M), type 2242/2260/2280 - Only Intel 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs |
| USB (s) | Rear USB:Total 6 ports: 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB:Total 6 ports: 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin+12V Power connector Storage related 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header Back Panel I/O Ports 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x D-Sub port 1 x HDMI port 1 x Intel I219-V 1Gb Ethernet 1 x PS/2 Keyboard/Mouse combo port |
| Special | |
| Special Feature | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - VRM heatsink design ASUS Lighting Control -RGB header |
| WARRANTY | |
| Manufacturing Warranty | 03 Years Warranty |
