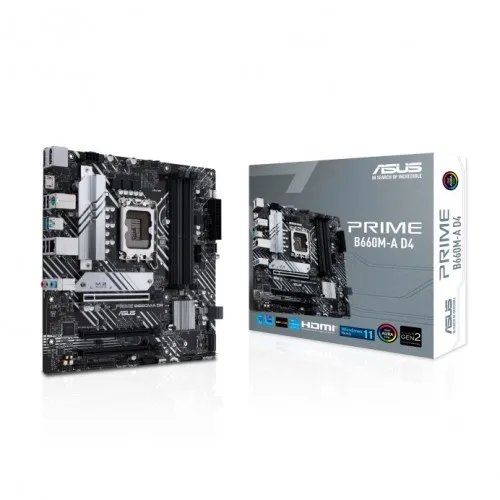

ASUS PRIME B660M-A D4 12th Gen Micro ATX Motherboard
Key highlights
- Form Factor: microATX 24.4cm x 24.4cm
- Supported CPU: Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
- Slots: 4 x DIMM
- Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers
- BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
Description
Elevate Your PC Build with ASUS PRIME B660M-A Motherboard
Discover the Power of ASUS PRIME B660M-A D4 12th Gen Micro ATX Motherboard
The ASUS PRIME B660M-A D4 is a cutting-edge Micro ATX motherboard designed for the new 12th generation Intel processors, ensuring you experience unmatched performance and versatility for your computing needs. With a robust set of features tailored for both casual users and hardcore gamers, this motherboard provides the perfect foundation for your next PC build.
Enhanced Performance: The ASUS PRIME B660M-A D4 supports Intel's latest LGA 1700 socket, allowing you to fully harness the capabilities of the newest Core i9, i7, i5, and i3 processors. With support for up to 128GB of DDR4 RAM at speeds of 3200MHz, your system will run smoothly and efficiently, whether you're multitasking, gaming, or rendering high-resolution graphics.
Future-Proof Connectivity: This motherboard is equipped with multiple connectivity options, including USB 3.2 Gen 2 Type-C ports, HDMI 2.1 output, and PCIe 4.0 slots for faster data transfer and enhanced graphics performance. The M.2 slot supports NVMe SSDs, delivering lightning-fast load times and improved system responsiveness, perfect for gamers and professionals alike.
Superior Build Quality: ASUS is known for its durability, and the PRIME B660M-A D4 is no exception. With high-quality capacitors and an advanced thermal design, this motherboard keeps your components cool even during intense usage. The reinforced PCIe slots provide added strength to support heavy graphics cards, ensuring long-lasting performance.
Easy Installation and Setup: The user-friendly design of the ASUS PRIME B660M-A D4 makes installation a breeze. With clearly labeled connectors and a comprehensive manual, even novice builders can set up their systems with confidence. Additionally, the BIOS interface is intuitive, allowing users to tweak settings and optimize performance effortlessly.
Why Choose ASUS PRIME B660M-A D4?: Investing in the ASUS PRIME B660M-A D4 means choosing reliability, performance, and quality. This motherboard is perfect for a wide range of use cases—from gaming and content creation to everyday computing tasks. With a 3-year warranty and excellent customer support, you can rest assured that your investment is protected. Make the smart choice today and elevate your PC experience with ASUS!
Why Choose ASUS PRIME B660M-A for 12th Gen Builds?
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | microATX 24.4cm x 24.4cm |
| Supported CPU | Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Slots | 4 x DIMM |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Type | DDR4 |
| Expansion Slots | |
| PCI | Intel 12th Gen Processors 1 x PCIe 4.0/3.0 x16 slot Intel B660 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x16 slot (supports x1 mode) |
| Memory Specifications | |
| Maximum Memory | 128GB |
| Supported Memory | 5333(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1 x DisplayPort |
| HDMI | 2 x HDMI ports |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 2.0 headers support additional 4 USB 2.0 ports 1 x USB 2.0 header supports 1 USB 2.0 port Miscellaneous 3 x AURA Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x S/PDIF Out header 1 x 20-3 pin System Panel header with Chassis intrude function |
| LAN Port (s) | 1 x Intel 1Gb Ethernet |
| USB (s) | Rear USB (Total 6 ports) 2 x USB 3.2 Gen 2 ports (2 x Type-A ) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 10 ports) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 2 x USB 2.0 headers support additional 4 USB 2.0 ports 1 x USB 2.0 header support 1 USB 2.0 port |
| Special | |
| Bundled Software | ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 2+ AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM ASUS CPU-Z Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
