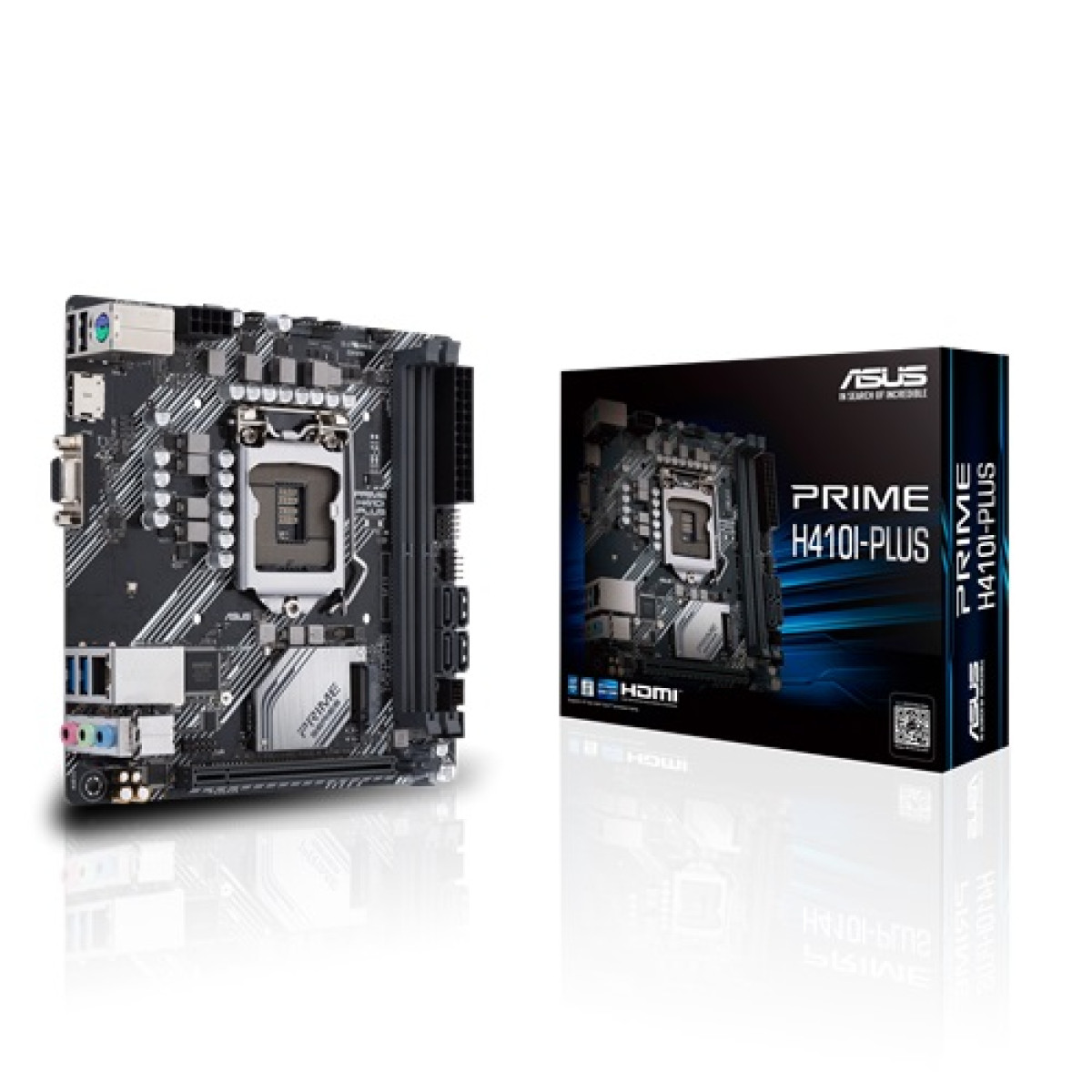

Buy Asus Prime H410I-Plus Intel 10th Gen Mini ITX Motherboard
Key highlights
- Form Factor: 6.7 inch x 6.7 inch ( 17.02 cm x 17.02 cm )
- Supported CPU: Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
- Chipset: Intel H410
- Memory: 64GB
- Slots: 2 x DIMM
Description
Compact Performance with Asus Prime H410I-Plus Motherboard
Asus Prime H410I-Plus: Your Ideal Mini ITX Motherboard
The Asus Prime H410I-Plus is a powerful Mini ITX motherboard designed for Intel's 10th generation processors, making it an exceptional choice for compact builds without sacrificing performance. With a sleek design and advanced features, this motherboard is perfect for gamers and professionals alike. Key benefits include support for dual-channel DDR4 memory up to 64GB, ensuring your system runs smoothly under demanding tasks. Additionally, the board's robust connectivity options, including USB 3.2 Gen 1 Type-A and Type-C ports, allow for high-speed data transfer.
The Asus Prime H410I-Plus also features comprehensive cooling solutions, with multiple fan headers and ASUS' Fan Xpert technology, ensuring your system stays cool even during intensive gaming sessions. Its real-time hardware monitoring provides peace of mind, allowing you to keep track of system health and performance. With a user-friendly BIOS interface, even novice builders can easily customize settings for optimal performance.
Explore Features of the Asus Mini ITX Motherboard
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | 6.7 inch x 6.7 inch ( 17.02 cm x 17.02 cm ) |
| Supported CPU | Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel H410 |
| Memory | 64GB |
| Slots | 2 x DIMM |
| Audio | Realtek ALC887 7.1-Channel High Definition Audio CODEC - Supports : Jack-detection, up to 24-Bit/192kHz playback Audio Feature : - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Expansion Slots | |
| M.2 Socket | 1 x M.2 Socket 3, with M Key, type 2260/2280 storage devices support (PCIE mode) |
| PCI | 1 x PCIe 3.0/2.0 x16 |
| Graphics Specifications | |
| Graphics | Integrated Graphics Processor- Intel UHD Graphics support 1 x HDMI 1.4b 1 x D-Sub |
| Memory Specifications | |
| Supported Memory | Supports 2666/2400/2133 MHz Non-ECC, Un-buffered Memory Supports Intel Extreme Memory Profile (XMP) OptiMem II |
| Type | Dual Channel Memory Architecture |
| PORTS, CONNECTORS & SLOTS | |
| D-Sub (s) | 1 x D-Sub |
| HDMI | 1 x HDMI 1.4b |
| LAN Port (s) | Realtek RTL8111H, 1 x Gigabit LAN Controller(s), support LANGuard |
| Supported Storage | Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports Intel H410 Chipset : 1 x M.2 Socket 3, with M Key, type 2260/2280 storage devices support (PCIE mode) 4 x SATA 6Gb/s port(s) |
| USB (s) | Rear USB Port ( Total 4 ) 2 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(2 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 4 ) 2 x USB 3.2 Gen 1 (up to 5Gbps) port(s) 2 x USB 2.0 port(s) |
| Internal I/O Connectors | 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x AAFP connector 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2 Socket 3 4 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x COM port header 1 x Speaker connector |
| WARRANTY | |
| Manufacturing Warranty | 03 Years |
