Asus Prime H410M-CS DDR4 10th Gen Intel 1200 Socket Micro ATX Motherboard (Bulk)
Key highlights
- Form Factor: mATX Form Factor: 8.9 inch x 8.0 inch
- Supported CPU: Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
- Chipset: Intel H410
- Memory: 64GB
- Slots: 2 x DIMM
Description
Reliable DDR4 Motherboard for Intel 1200 Socket Systems

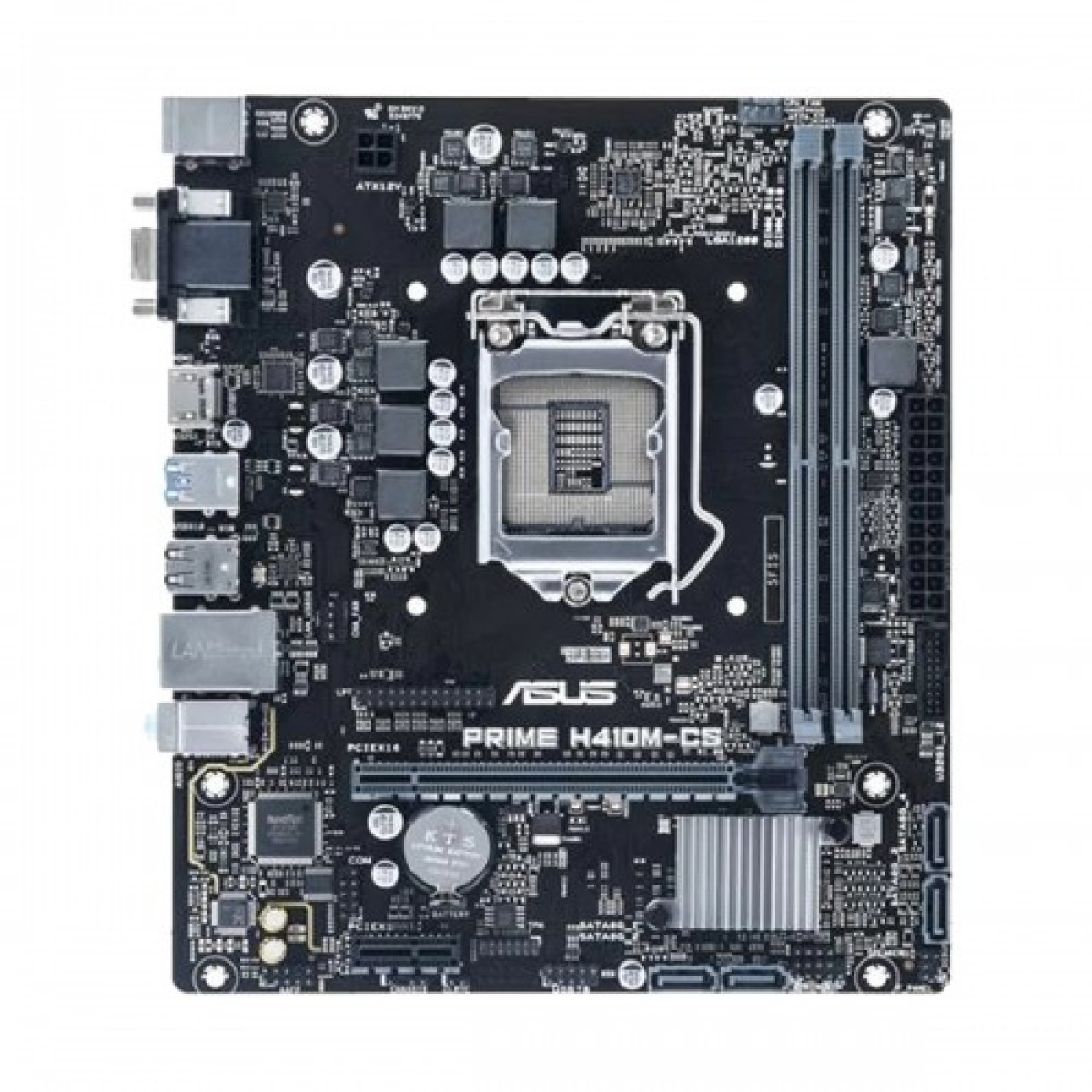

Asus Prime H410M-CS DDR4 Micro ATX Motherboard
The Asus Prime H410M-CS is a feature-rich motherboard designed to provide exceptional performance for 10th Gen Intel processors. With its Socket LGA 1200, it supports a wide range of CPUs, ensuring compatibility and upgrade potential for users looking to build or enhance their systems. This Micro ATX form factor is perfect for compact builds while still offering robust connectivity options.
Equipped with DDR4 memory support, this motherboard allows for high-speed data transfer and improved system responsiveness. The Asus Prime H410M-CS boasts multiple connectivity options, including USB 3.2 Gen 1, HDMI, and more, making it versatile for various peripherals. The AI overclocking feature ensures that you can extract optimal performance from your components without the need for manual adjustments.
Additionally, Asus's comprehensive cooling solutions help maintain optimal temperatures, ensuring stability and longevity of your components during intensive tasks. The motherboard also supports dual-channel memory architecture and offers expandable storage options through M.2 slots, giving users flexibility in configuring their systems.
Affordable Micro ATX Motherboard for Gaming and Work
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | mATX Form Factor: 8.9 inch x 8.0 inch |
| Supported CPU | Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
| Chipset | Intel H410 |
| Memory | 64GB |
| Slots | 2 x DIMM |
| Audio | Realtek ALC887 7.1-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - LED-illuminated design - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Expansion Slots | |
| M.2 Socket | No |
| PCI | No |
| Graphics Specifications | |
| Graphics | Integrated Graphics Processor 1 x D-Sub 1 x HDMI 1.4b |
| Memory Specifications | |
| Supported Memory | 10th Gen Intel Core i9/i7 CPUs support: 2933/ 2800/ 2666/ 2400/ 2133 Intel Core i5/i3/Pentium/Celeron processors: 2933/ 2800/ 2666/ 2400/ 2133 MHz Supports Intel Extreme Memory Profile (XMP) OptiMem |
| Type | Non-ECC, Un-buffered Memory |
| PORTS, CONNECTORS & SLOTS | |
| D-Sub (s) | 1 x D-Sub |
| HDMI | 1 x HDMI 1.4b |
| LAN Port (s) | Realtek RTL8111H |
| Supported Storage | Total supports 1 x M.2 slots and 4 x SATA 6Gb/s ports Intel® H410 Chipset : 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode) 4 x SATA 6Gb/s port(s) |
| USB (s) | Rear USB Port ( Total 4 ) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s) |
| Internal I/O Connectors | 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode) 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x Speaker connector |
| WARRANTY | |
| Manufacturing Warranty | 3 Years |
