| Case Type | |
| Type | Dual Channel Memory Architecture |
| BASIC INFORMATION | |
| Form Factor | mATX Form Factor 8.9 inch x 8.0 inch ( 22.6 cm x 20.3 cm ) |
| Supported CPU | Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold, and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel H410 |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Expansion Slots | |
| M.2 Socket | 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode) |
| Memory Specifications | |
| Maximum Memory | Max. 64GB |
| Supported Memory | DDR4 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory Supports Intel Extreme Memory Profile (XMP) OptiMem |
| PORTS, CONNECTORS & SLOTS | |
| D-Sub (s) | 1 x D-Sub |
| DVI-D (s) | 1 x DVI-D |
| Internal I/O Ports | 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header 1 x Speaker connector |
| Supported Storage | 4 x SATA 6Gb/s port(s) |
| TPM (Trusted Platform Module ) | N/A |
| WARRANTY | |
| Manufacturing Warranty | 3 years |

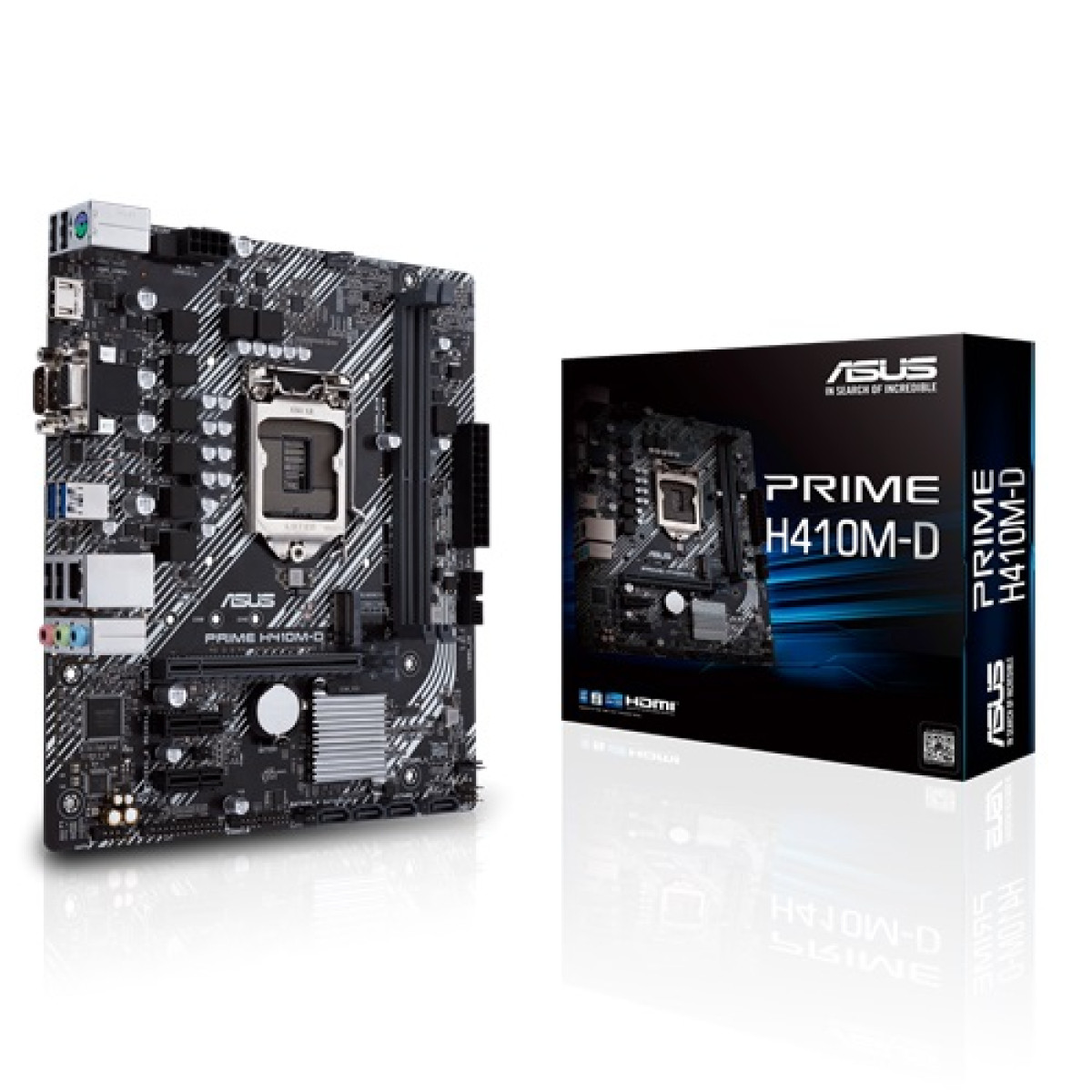

Asus Prime H410M-D Intel 10th Gen Micro-ATX Motherboard
ASUS Prime series is expertly engineered to unleash the full potential of 10th Gen Intel Core processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H410 series motherboards provide daily users and DIY PC builders a range of performance tuning options via included software and hardware. The Asus Prime H410M-D Intel 10th Gen Micro-ATX Motherboard comes with Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold, and Celeron Processors. It supports Intel 14 nm CPU. It features Dual Channel Memory Architecture and supports 2 x DIMM, Max. 64GB, DDR4 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory. Total supports 4x SATA 6Gb/s ports. It also has M.2, 1 Gb Ethernet, USB 3.2 Gen 1 Type-A for Ultrafast connectivity. It has 3 years of warranty.
Upgrade your computing experience with the Asus Prime H410M-D Intel 10th Gen Micro-ATX Motherboard, available now at Computer Shop Unix Network in Jashore, Bangladesh. This high-quality motherboard is designed for Intel 10th Gen processors, delivering superior performance and reliability for all your computing needs. With its Micro-ATX form factor, it is perfect for building a compact yet powerful PC system. Equipped with advanced features such as PCIe 3.0 support, M.2 slot for ultra-fast SSD storage, and DDR4 memory compatibility, this motherboard is perfect for gaming, content creation, and everyday computing tasks. Trust Asus Prime H410M-D to take your PC to the next level.
