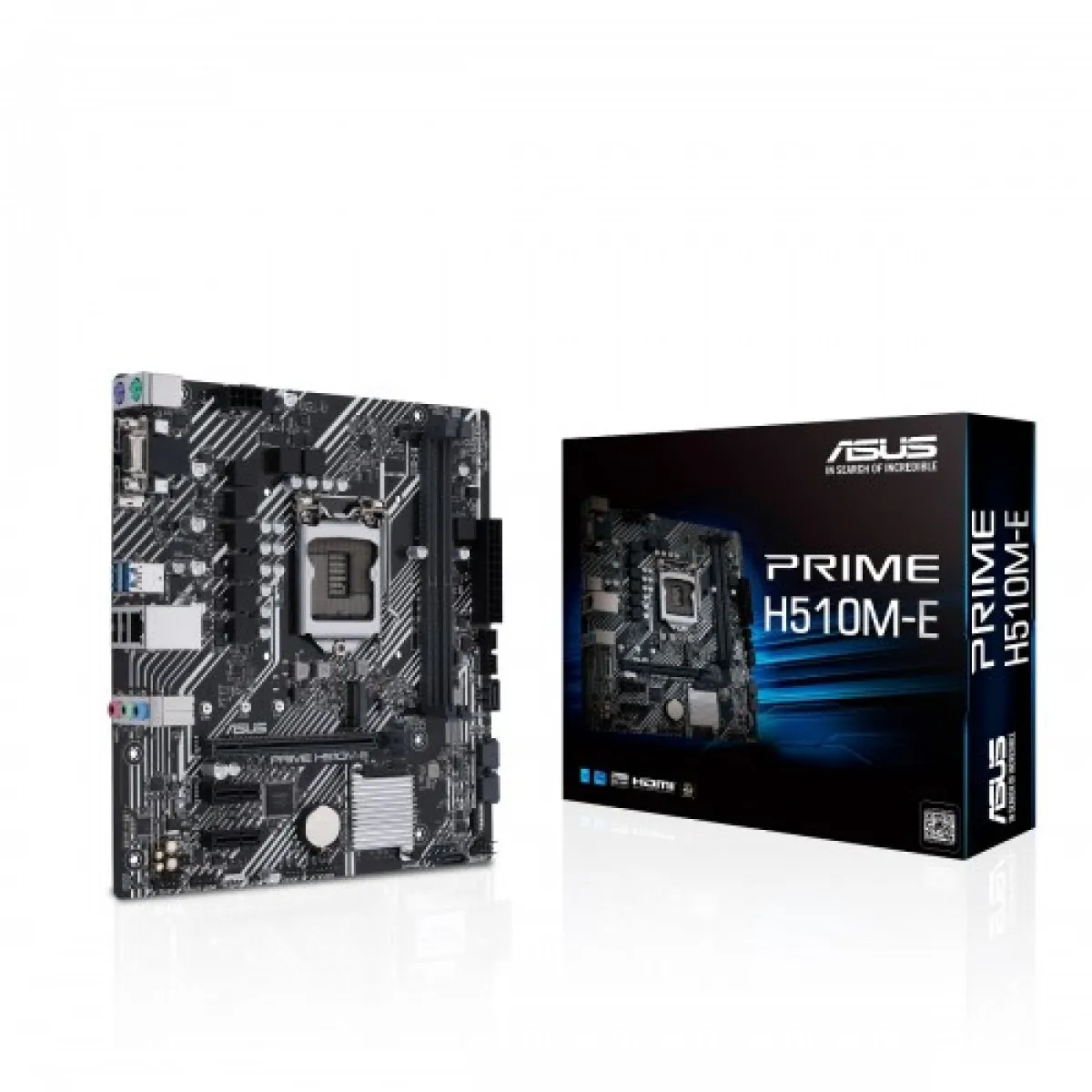

Asus Prime H510M-E Intel 10th and 11th Gen Micro ATX Motherboard
Call for price
01715143685 / 01711131207
Key highlights
- Form Factor: microATX: 22.6cm x 21.1cm
- Supported CPU: Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
- Chipset: Intel H510 Chipset
- Slots: 2 x DIMM
- Audio: Realtek ALC897/ 887 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium Japanese audio capacitors - Dedicated audio PCB layers
Description
Best Micro ATX Motherboard for Gaming and Productivity
Unleash Your Potential with the Asus Prime H510M-E
The Asus Prime H510M-E Micro ATX Motherboard is a powerhouse designed for both Intel 10th and 11th generation processors. This motherboard combines cutting-edge technology with robust performance, making it an ideal choice for gamers and professionals alike.
With its Micro ATX form factor, the H510M-E fits perfectly into smaller cases without compromising on features. It supports DDR4 memory up to 3200 MHz, ensuring high-speed performance for multitasking and demanding applications. The motherboard also features enhanced power delivery and cooling solutions, allowing you to push your system to the limits.
Built-in connectivity options include USB 3.2 Gen 1, HDMI, and several SATA ports, providing a comprehensive solution for all your connectivity needs. Whether you are connecting external drives, monitors, or other peripherals, the H510M-E has you covered.
Choosing the Asus Prime H510M-E means investing in a reliable, feature-rich motherboard that enhances your computing experience. Designed with Bangladeshi customers in mind, this motherboard provides exceptional value and performance, making it a top choice in the local market.
Upgrade Your Build with Asus Prime H510M-E Features
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | microATX: 22.6cm x 21.1cm |
| Supported CPU | Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel H510 Chipset |
| Slots | 2 x DIMM |
| Audio | Realtek ALC897/ 887 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium Japanese audio capacitors - Dedicated audio PCB layers |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Expansion Slots | |
| M.2 Socket | Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H510 Chipset M.2 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 3.0 x4 & SATA modes) |
| PCI | Intel 11th & 10th Gen Processors 1 x PCIe 4.0/ 3.0 x16 slot - Intel 11th Gen processors support PCIe 4.0 x16 - Intel 10th Gen processors support PCIe 3.0 x16 Intel H510 Chipset 2 x PCIe 3.0 x1 slots |
| Graphics Specifications | |
| Graphics | 1 x DisplayPort 1.4 1 x D-Sub 1 x HDMI 1.4/ 2.0 |
| Memory Specifications | |
| Maximum Memory | 64GB (32 GB single DIMM capacity) |
| Supported Memory | DDR4 3200(OC)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) 10th Gen Intel Core i7/ i9 processors support 2933/ 2800/ 2666/ 2400/ 2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. 11th Gen Intel processors support 2933/ 2800/ 2666/ 2400/ 2133 natively. |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| D-Sub (s) | 1 x D-Sub |
| Display Port (s) | 1 x DisplayPort 1.4 |
| HDMI | 1 x HDMI 2.0 |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header |
| LAN Port (s) | 1 x Intel I219-V 1Gb Ethernet |
| WARRANTY | |
| Manufacturing Warranty | 3 Years |
