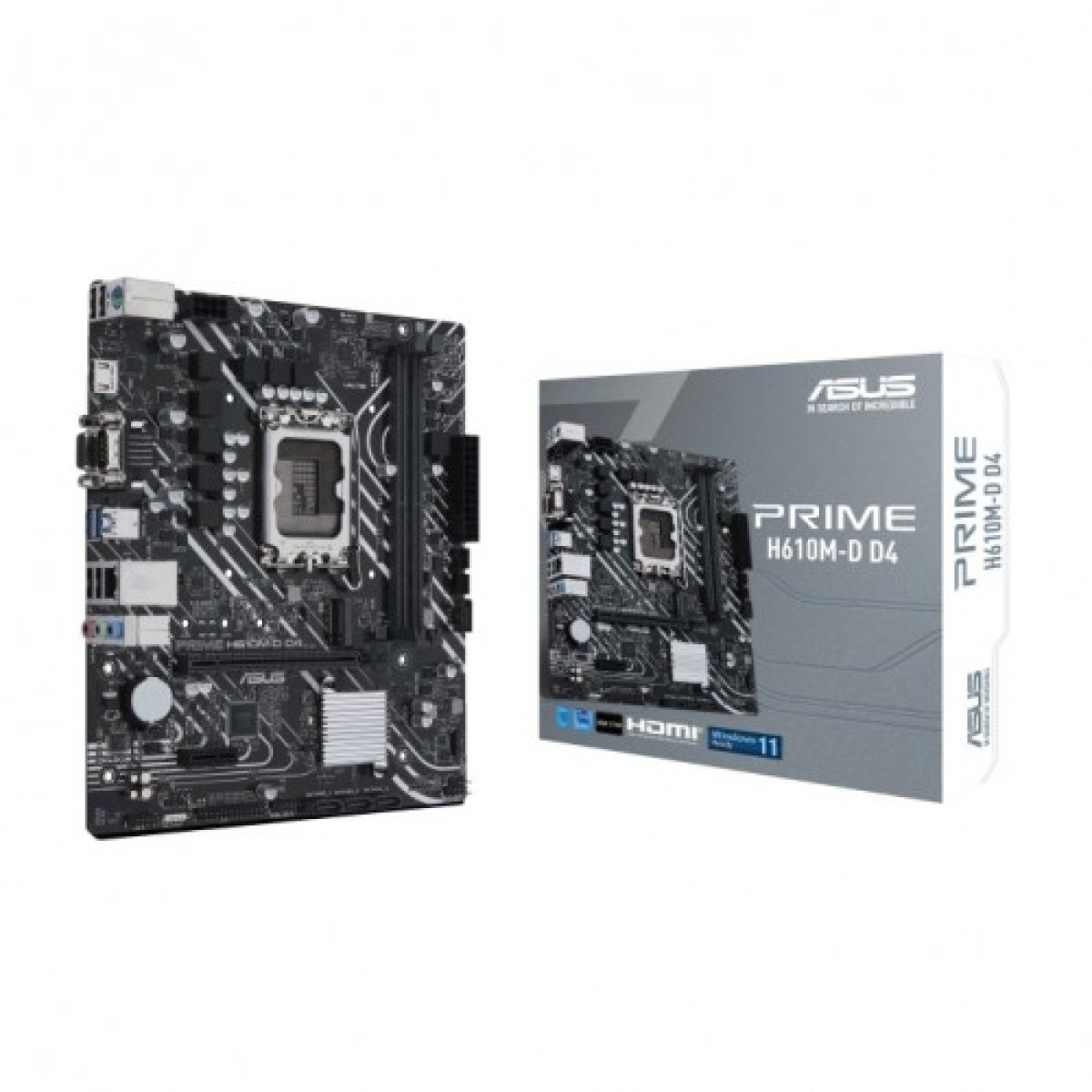

ASUS PRIME H610M-D D4 12th Gen mATX Motherboard
Key highlights
- Form Factor: mATX Form Factor 9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm )
- Supported CPU: Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
- Chipset: Intel H610 Chipset
- Audio: 3 x Audio jacks
- PCI: Intel 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel H610 Chipset 1 x PCIe 3.0 x1 slot
Genuine products with manufacturer warranty where applicable. Keep your invoice for warranty claims.
Contact us within the return window for defective or wrong items. Open-box returns may vary by category.
Description
High-Performance mATX Motherboard for Gaming and Work
ASUS PRIME H610M-D D4 12th Gen mATX Motherboard
The ASUS PRIME H610M-D D4 is an exceptional motherboard designed for the latest 12th generation Intel processors, offering a perfect balance of performance and functionality. With its micro ATX form factor, it is ideal for compact builds without compromising on features. This motherboard supports DDR4 memory, ensuring faster data transfer rates and improved multitasking capabilities. Experience stability and reliability with ASUS' renowned engineering, making it suitable for both gamers and professionals alike.
Equipped with multiple connectivity options, including USB 3.2 Gen 1 and HDMI outputs, the H610M-D D4 allows for seamless integration with modern peripherals and displays. Its robust power design ensures consistent performance, even under heavy loads. Additionally, the advanced cooling solutions help maintain optimal temperatures during intensive tasks, further enhancing its performance.
Whether you're building a gaming rig or a workstation, the ASUS PRIME H610M-D D4 is a versatile choice that caters to a wide range of computing needs. Choose this motherboard for its exceptional build quality, reliable performance, and extensive compatibility with the latest hardware.
Durable and Reliable Motherboard for Your PC Build
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | mATX Form Factor 9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm ) |
| Supported CPU | Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel H610 Chipset |
| Audio | 3 x Audio jacks |
| Expansion Slots | |
| PCI | Intel 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel H610 Chipset 1 x PCIe 3.0 x1 slot |
| Graphics Specifications | |
| Graphics | 1 x D-Sub port 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1) |
| Memory Specifications | |
| Maximum Memory | 64GB |
| Slots | 2 x DIMM |
| Supported Memory | DDR4 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| D-Sub (s) | 1 x D-Sub port |
| HDMI | 1 x HDMI port |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports Miscellaneous 1 x RGB header 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header |
| LAN Port (s) | 1 x Realtek 1Gb Ethernet |
| Supported Storage | Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H610 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports |
| USB (s) | Rear USB (Total 6 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 4 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports |
| Special | |
| Special Feature | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS Lighting Control - RGB header |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
