| BASIC INFORMATION | |
| Form Factor | ATX 30.5cm x 24.4cm |
| Graphics | 1 x DisplayPort** 1 x HDMI® port*** *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. ***Supports 4K@60Hz as specified in HDMI 2.1. **** VGA resolution support depends on processors' resolution. |
| Supported CPU | Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel H610 Chipset |
| Slots | 4 x DIMM |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback - Audio Features - Audio Shielding - Power pre-regulator reduces power input noise to ensure consistent performance - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
| Type | DDR4 |
| Connectivity | |
| HDMI | 1 x HDMI port |
| Expansion Slots | |
| PCI | Intel 12th Gen Processors* 1 x PCIe 4.0 x16 slot Intel H670 Chipset** 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots |
| Memory Specifications | |
| Supported Memory | 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1 x DisplayPort |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports 1 x USB 2.0 header supports additional 1 USB 2.0 port Miscellaneous 3 x Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x M.2 slot (Key E) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt header |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) |
| WARRANTY | |
| Manufacturing Warranty | 3 years |

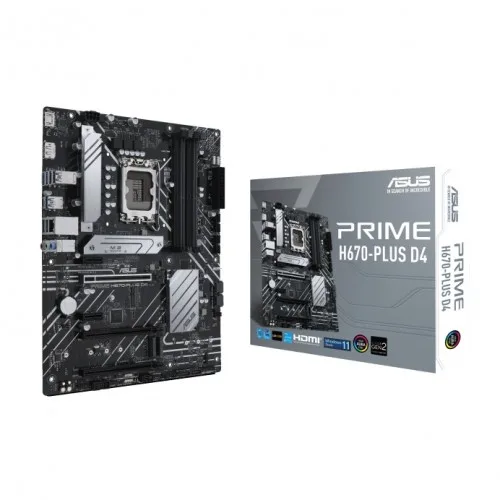

ASUS PRIME H670-PLUS D4 12th Gen ATX Motherboard
The ASUS PRIME H670-PLUS D4 comes with Intel LGA 1700 socket for 12th Gen Intel Core, Pentium Gold, and Celeron Processors. It offers ultrafast connectivity with PCIe 4.0 slots, three M.2 slots, Realtek 2.5Gb Ethernet and Thunderbolt 4 support. The ASUS PRIME H670-PLUS D4 features VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+. Careful routing of traces and vias to preserve signal integrity for improved memory stability with ASUS OptiMem. Prime H670 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features. Prime H670-PLUS D4 offers a total of three M.2 slots that support data-transfer speeds of up to 64 Gbps via PCIe 4.0, enabling quicker boot-up and app load times with OS or application drives. The ASUS PRIME H670-PLUS D4 comes with 3 years of warranty.
The ASUS PRIME H670-PLUS D4 12th Gen ATX Motherboard is a high-performance motherboard designed for seamless compatibility with 12th generation Intel processors. With support for DDR4 memory, this motherboard offers lightning-fast speeds and impressive multitasking capabilities. Its ATX form factor ensures easy installation in standard computer cases, while the robust build quality guarantees long-lasting durability. Featuring a comprehensive range of connectivity options including USB 3.2 Gen 2 and PCIe 5.0 slots, this motherboard is perfect for gamers, content creators, and professionals alike. Upgrade your PC build with the ASUS PRIME H670-PLUS D4 and experience unparalleled performance and reliability. Available now at Computer Shop Unix Network in Jashore, Bangladesh.
