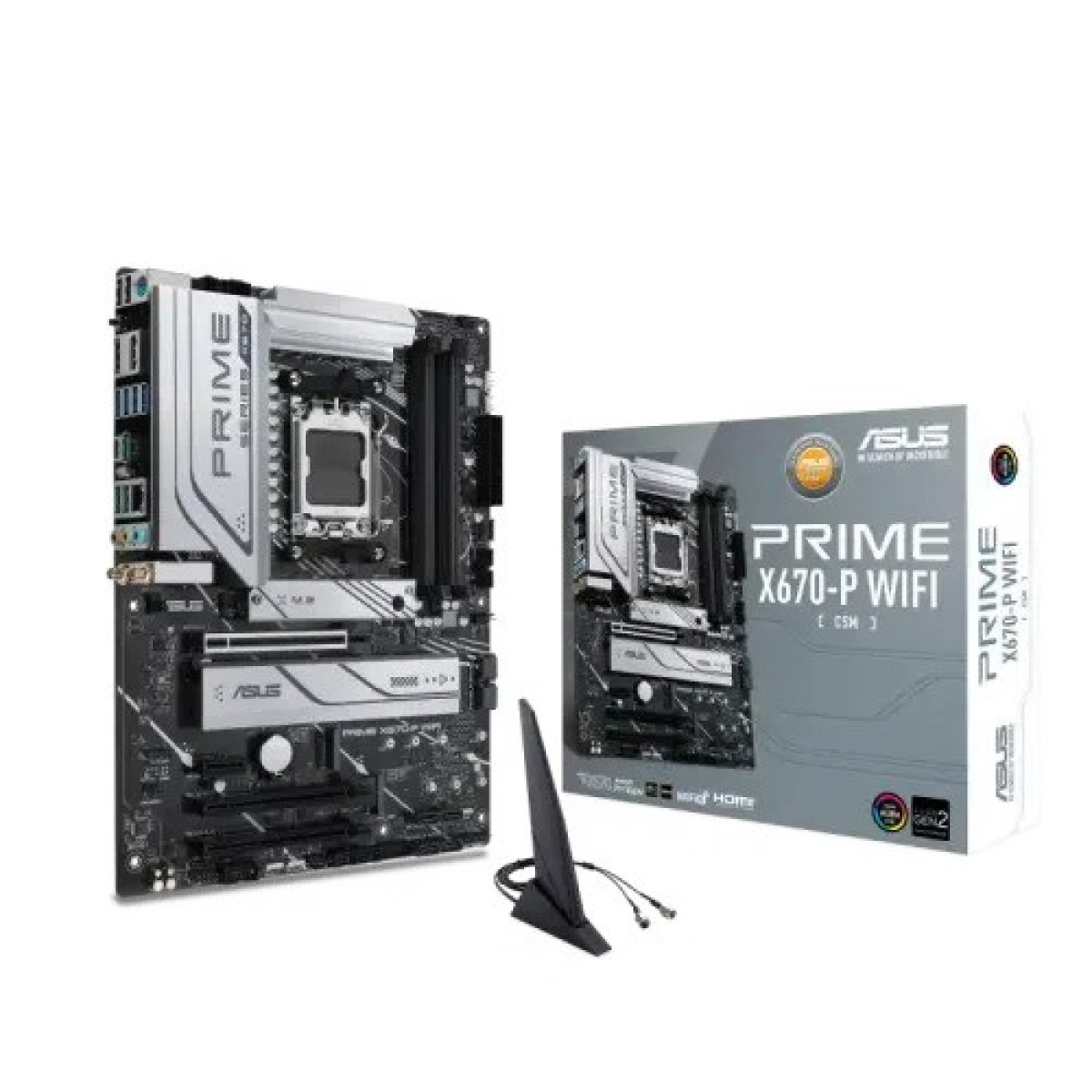

Asus PRIME X670-P WIFI-CSM AM5 ATX Motherboard
- Brand: Asus
- Product Code: PRIME X670-P WIFI-CSM
- Availability: Out of Stock
- Updated:
Specification
| BASIC INFORMATION | |
| Audio Features | 3 x Audio jacks |
|---|---|
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Raid controller | AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10 |
| Supported CPU | AMD Socket AM5 for AMD Ryzen 8000 & 7000 Series Desktop Processors |
| Chipset | AMD X670 Chipset |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Expansion Slots | |
| PCI | AMD Ryzen 7000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD X670 Chipset 2 x PCIe 4.0 x16 slots (support x4 mode) 1 x PCIe 3.0 x1 slot |
| Graphics Specifications | |
| Graphics | 1 x DisplayPort** 1 x HDMI® port*** * Graphics specifications may vary between CPU types. ** Supports max. 8K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI® 2.1. |
| Memory Specifications | |
| Maximum Memory | 128GB |
| Slots | 4 x DIMM |
| Supported Memory | 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO) OptiMem II |
| Type | DDR5 |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1x DisplayPort |
| HDMI | 1x HDMI |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 2 x Aura RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x 20-5 pin System Panel header 1 x Thunderbolt™ (USB4®) header |
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet |
| Supported Storage | Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports* AMD Ryzen™ 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) AMD X670 Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 6 x SATA 6Gb/s ports |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) |
| USB (s) | Rear USB (Total 10 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 3 x USB 3.2 Gen 2 ports (3 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 9 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Wireless Communication module | Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2 |
| Special | |
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 with AI Cooling II - Power Saving AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner ASUS CPU-Z IT Management software supported - ASUS Control Center Express(ACCE) MyASUS Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| Special Feature | ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage Protection - Safeslot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool Aura Sync - Aura RGB headers - Addressable Gen 2 headers |
| WARRANTY | |
| Manufacturing Warranty | 3 Years |
Description
Asus PRIME X670-P WIFI-CSM AM5 ATX Motherboard: Elevate Your Computing Experience
The Asus PRIME X670-P WIFI-CSM AM5 ATX Motherboard is designed for users who demand exceptional performance and stability from their computing systems. With its AM5 socket, this motherboard supports the latest AMD Ryzen processors, ensuring you have access to cutting-edge technology for gaming, content creation, and everyday tasks. Built with premium components, the PRIME X670-P guarantees durability and reliability, making it a top choice for both casual users and hardcore enthusiasts.
One of the standout features of this motherboard is its integrated Wi-Fi 6E capability, allowing for faster and more reliable wireless connectivity. This means you can enjoy seamless online gaming, streaming, and downloading without the hassle of cables. Additionally, the inclusion of Bluetooth 5.2 means that connecting to peripherals and devices has never been easier, providing you with a versatile and clutter-free workspace.
This motherboard supports up to 128GB of DDR5 RAM, offering ample memory for multitasking and resource-intensive applications. With support for PCIe 5.0, you get lightning-fast data transfer speeds, making it perfect for high-performance graphics cards and SSDs. The dual M.2 slots allow for ultra-fast NVMe storage solutions, enhancing your system's overall speed and responsiveness.
Installation is straightforward, thanks to the user-friendly design and clear layout. Asus has also integrated robust cooling solutions, including multiple fan headers and M.2 heatsinks, to ensure your system remains cool even during intense workloads. Moreover, the Asus Aura Sync RGB lighting feature lets you personalize your rig, creating a visually stunning setup that reflects your style.
Why should you choose the Asus PRIME X670-P? Its comprehensive set of features not only enhances performance but also future-proofs your system for upcoming technologies. With a solid warranty and excellent customer support, you can purchase with confidence. Whether you're a gamer, content creator, or a professional, this motherboard is engineered to meet your needs and exceed your expectations.
