- Stock: Out Of Stock
- Brand: Asus
- Model: PRIME Z790-P-CSM
- MPN: 25381
| BASIC INFORMATION | |
| Form Factor | ATX Form Factor 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm ) |
| Raid controller | Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. |
| Supported CPU | Intel Socket LGA1700 for 14th Gen, 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel Z790 Chipset |
| Slots | 4 x DIMM |
| Audio | 3 x audio jacks |
| BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
| Expansion Slots | |
| PCI | Intel 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel Z790 Chipset 3 x PCIe 4.0 x16 slots (support x4 mode) 1 x PCIe 3.0 x1 slot |
| Graphics Specifications | |
| Graphics | 1 x DisplayPort** 1 x HDMI® port*** ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. |
| Memory Specifications | |
| Maximum Memory | 128GB |
| Supported Memory | 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II |
| Type | DDR5 |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1 x DisplayPort |
| HDMI | 1 x HDMI |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 2 x Aura RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x 20-5pin System Panel header 1 x Thunderbolt (USB4) Header |
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet |
| Supported Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel Z790 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) |
| USB (s) | Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 9 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Wireless Communication module | Vertical M.2 slot only (Key E, CNVi & PCIe)* *Wi-Fi module is sold separately. |
| Special | |
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving AI Suite 3 -TurboV EVO -PC Cleaner -DIGI+ VRM ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| Special Feature | ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot - Q-LED Core ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool Aura Sync - Aura RGB headers - Addressable Gen 2 headers |
| WARRANTY | |
| Manufacturing Warranty | 3 years |

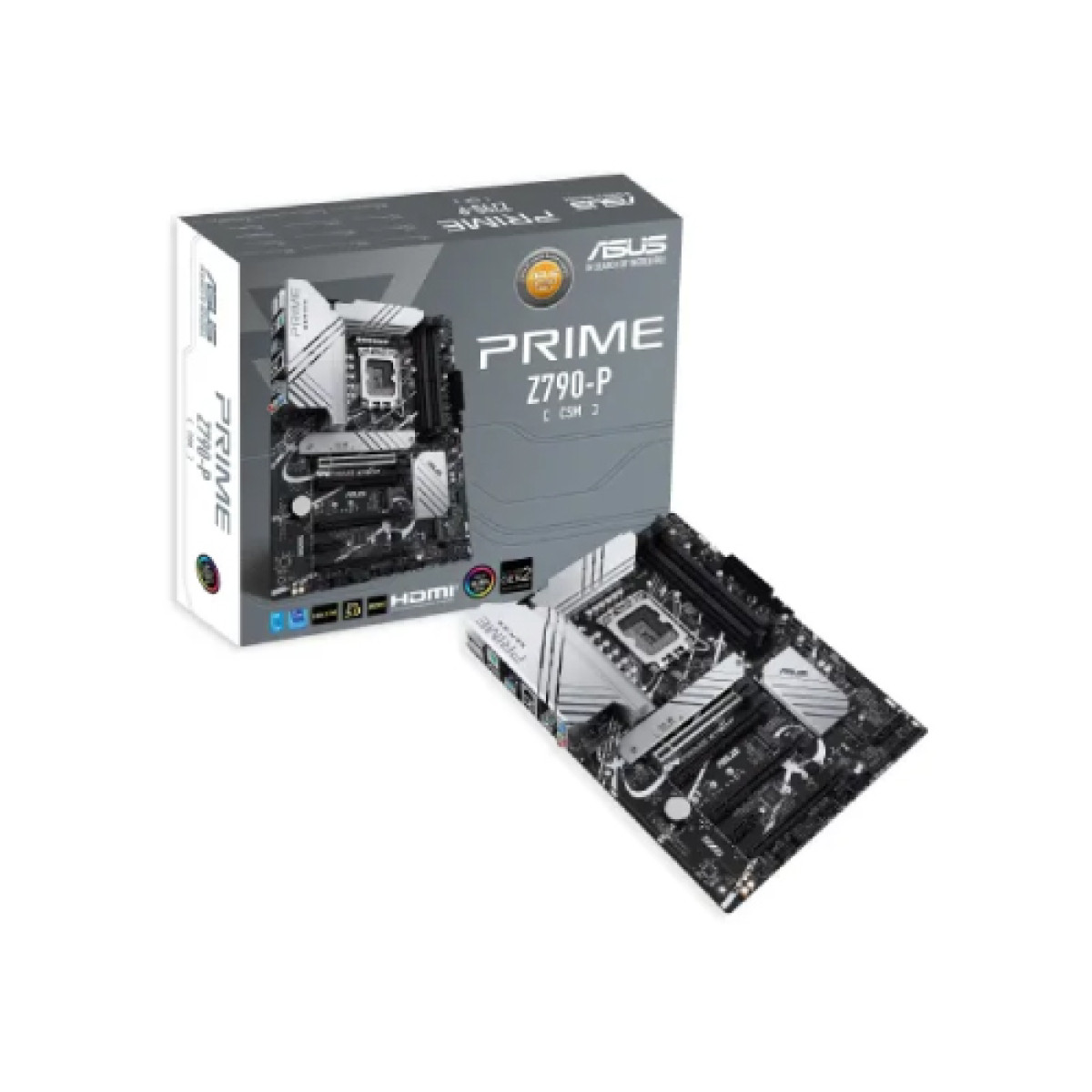

The ASUS PRIME Z790-P-CSM ATX Motherboard is designed to provide exceptional performance, versatility, and durability for users looking to build high-end gaming or workstation systems. Equipped with the Intel Z790 chipset, this motherboard offers full support for Intel’s 12th and 13th generation Core processors and advanced features such as PCIe 5.0 and DDR5 memory support. With a strong emphasis on connectivity and power efficiency, the ASUS PRIME Z790-P-CSM ensures top-tier performance whether you’re gaming, multitasking, or working with demanding applications.
Key features include:
- Intel LGA 1700 socket compatibility for Intel’s 12th and 13th Gen Core processors
- PCIe 5.0 and DDR5 support for next-gen performance
- Advanced power delivery system for stable, long-lasting performance
- Wi-Fi 6 and Bluetooth 5.3 support for fast and reliable wireless connectivity
- Robust cooling solutions with multiple fan headers for temperature management
People Also Ask (PAA) Section
1. What processors are supported by the ASUS PRIME Z790-P-CSM motherboard?
The ASUS PRIME Z790-P-CSM motherboard supports Intel 12th and 13th generation Core processors. This includes high-performance Core i9, Core i7, Core i5, and Core i3 CPUs using the LGA 1700 socket, offering users flexibility in choosing the ideal processor for gaming or productivity.
2. Does the ASUS PRIME Z790-P-CSM motherboard support PCIe 5.0?
Yes, the ASUS PRIME Z790-P-CSM motherboard supports PCIe 5.0, which offers double the bandwidth of PCIe 4.0. This is perfect for gamers and professionals who need faster data transfer rates for graphics cards, storage devices, and other high-speed expansion cards.
3. Is Wi-Fi included with the ASUS PRIME Z790-P-CSM motherboard?
Yes, the ASUS PRIME Z790-P-CSM comes with Wi-Fi 6 support, offering faster, more efficient wireless connectivity. This ensures a stable and lag-free online experience for gaming, streaming, and heavy internet usage, even in crowded networks.
4. Can I overclock with the ASUS PRIME Z790-P-CSM motherboard?
Yes, this motherboard is ideal for overclocking when paired with Intel K-series processors. The robust power delivery system and comprehensive cooling solutions ensure stability even under demanding overclocked conditions, giving users the flexibility to enhance CPU performance for gaming or other resource-intensive tasks.
5. Does the ASUS PRIME Z790-P-CSM support DDR5 memory?
Yes, the motherboard supports DDR5 memory, providing faster speeds and higher bandwidth compared to DDR4. This is ideal for users who want to build a high-performance system that can handle tasks like video editing, 3D rendering, and heavy multitasking. It also supports DDR4 memory, allowing for cost-effective upgrades.
6. How is the cooling system on the ASUS PRIME Z790-P-CSM motherboard?
The motherboard comes with a well-designed cooling system, featuring multiple fan headers for efficient airflow. It also has M.2 heat sinks and fan control software to keep your system’s components running cool, ensuring stable performance even during extended usage or heavy workloads.
Use Cases and Benefits
Gamers:
The ASUS PRIME Z790-P-CSM motherboard is an excellent choice for gamers looking to build a high-performance rig. With PCIe 5.0 and DDR5 support, it can accommodate the latest GPUs and provide higher bandwidth, resulting in better frame rates and smoother gameplay. The Wi-Fi 6 feature ensures a fast and lag-free online gaming experience, even with high-demand multiplayer games.Content Creators:
For content creators who rely on video editing, 3D rendering, or graphic design, this motherboard offers ample bandwidth and processing power to handle demanding tasks. With support for Intel Core processors, DDR5 memory, and PCIe 5.0, it ensures quick processing times and efficiency, especially in memory-intensive applications.Workstation Builds:
The ASUS PRIME Z790-P-CSM motherboard is perfect for professionals building workstations for software development, data analysis, or other heavy applications. The power delivery system ensures stable, consistent performance, while Wi-Fi 6 ensures seamless connectivity when working remotely or collaborating with teams.Overclocking Enthusiasts:
For users who enjoy pushing their system to the limits, the ASUS PRIME Z790-P-CSM offers excellent support for overclocking. With its advanced cooling solutions and power delivery system, this motherboard allows users to squeeze every bit of performance out of Intel K-series processors without sacrificing stability.
Competitive Advantages
Compared to other motherboards in its price range, the ASUS PRIME Z790-P-CSM ATX offers superior features like PCIe 5.0 and DDR5 memory support, which provide future-proof performance. While other boards may support only PCIe 4.0, this motherboard allows users to take advantage of the latest generation GPUs and storage devices for faster speeds. Additionally, Wi-Fi 6 and Bluetooth 5.3 are built-in, giving this motherboard a distinct advantage over others that require additional networking cards.
The ASUS PRIME Z790-P-CSM ATX Motherboard is a high-quality motherboard designed for top-tier performance. It features support for Intel's latest 12th Gen Alder Lake processors, with an LGA 1700 socket and DDR5 memory support. The motherboard also includes PCIe 5.0 support for lightning-fast data transfer speeds, along with multiple M.2 slots for high-speed storage options. The ASUS Prime Z790-P-CSM also boasts comprehensive connectivity options, including USB 3.2 Gen 2, HDMI, and DisplayPort. With a sleek and modern design, this motherboard is the perfect choice for building a powerful gaming or content creation PC.
The ASUS PRIME Z790-P-CSM ATX Motherboard is a high-quality, reliable motherboard designed for professional use. This motherboard is compatible with Intel Core processors and features an LGA 1700 socket. It offers excellent performance and stability for demanding applications and multitasking.
With support for up to 128GB of DDR5 RAM, this motherboard ensures smooth operation even with resource-intensive tasks. It also features multiple expansion slots, including PCIe 5.0 slots for high-speed data transfer. The ASUS PRIME Z790-P-CSM ATX Motherboard offers comprehensive connectivity options, including USB 3.2 Gen 2 Type-A and Type-C ports, SATA 6Gb/s ports, and M.2 slots for fast storage options.
The motherboard also features ASUS ProCool power connectors, ensuring a stable power supply and reliable performance. Its premium components and robust design make it a durable and long-lasting option for professional users. The ASUS PRIME Z790-P-CSM ATX Motherboard is an ideal choice for professionals looking for a high-performance and dependable motherboard for their workstation or server.
