Specification
| BASIC INFORMATION | |
| Form Factor | ATX Form Factor 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm ) |
| Supported CPU | Intel Socket LGA1700 for 14th Gen, 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel Z790 Chipset |
| Slots | 4 x DIMM |
| Audio | 3 x audio jacks |
| BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
| Expansion Slots | |
| PCI | Intel 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel Z790 Chipset 3 x PCIe 4.0 x16 slots (support x4 mode) 1 x PCIe 3.0 x1 slot |
| Graphics Specifications | |
| Graphics | 1 x DisplayPort** 1 x HDMI® port*** ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. |
| Memory Specifications | |
| Maximum Memory | 128GB |
| Supported Memory | 5333(OC)/ 5133(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4700(OC)/ 4600(OC)/ 4500(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1 x DisplayPort |
| HDMI | 1 x HDMI |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 2 x Aura RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x 20-5pin System Panel header 1 x Thunderbolt (USB4) Header |
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet |
| Supported Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel Z790 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) |
| USB (s) | Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 9 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Wireless Communication module | Vertical M.2 slot only (Key E, CNVi & PCIe)* *Wi-Fi module is sold separately. |
| Special | |
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving AI Suite 3 -TurboV EVO -PC Cleaner -DIGI+ VRM ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
Description

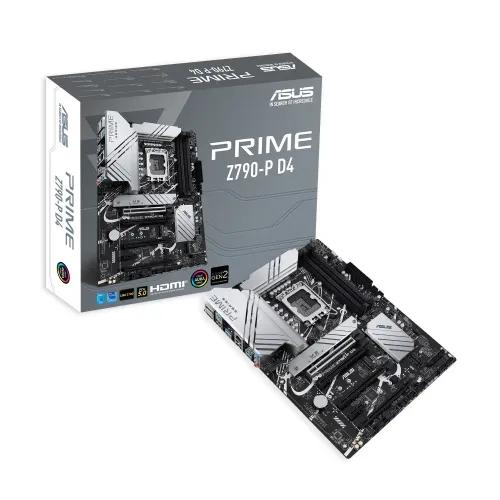

The ASUS PRIME Z790-P D4 ATX Motherboard offers a robust foundation for building a high-performance PC, supporting the latest Intel 12th and 13th generation processors (LGA 1700) with the Intel Z790 chipset. This motherboard is designed for users looking to build a powerful gaming rig, content creation workstation, or a high-end productivity system. Featuring DDR4 support, it offers great flexibility for users who may not want to upgrade to DDR5 yet. It also supports PCIe 5.0 and Wi-Fi 6, ensuring users can take full advantage of the next-gen graphics cards and storage devices, while maintaining future-proof connectivity.
With a focus on enhanced cooling, expandability, and user-friendly features, the ASUS PRIME Z790-P D4 is well-suited for gamers and professionals who need top-tier performance without sacrificing stability. The motherboard offers multiple M.2 slots, high-speed USB ports, and expandable memory capacity, making it an excellent option for anyone looking to maximize their system's potential. It also comes with AI-enhanced features, such as AI Noise-Canceling Technology and AI Overclocking, making the setup and performance tuning easier and more efficient for users of all experience levels.
The ASUS PRIME Z790-P D4 ATX Motherboard offers a premium, yet cost-effective option for users who want to build a high-performance system with the latest technology and robust support for expansion and overclocking.
People Also Ask (PAA) Section
1. Is the ASUS PRIME Z790-P D4 motherboard compatible with Intel's 13th gen processors?
Yes, the ASUS PRIME Z790-P D4 ATX motherboard is fully compatible with Intel 12th and 13th generation processors (LGA 1700 socket). This makes it a great choice for building a powerful, next-gen system with the latest Intel CPUs for gaming, content creation, or productivity.
2. What is the maximum RAM capacity supported by the ASUS PRIME Z790-P D4 motherboard?
The ASUS PRIME Z790-P D4 motherboard supports up to 128GB of DDR4 RAM, with speeds up to 5333MHz (OC). It provides ample memory capacity and high-speed options, ideal for gaming, video editing, and multitasking.
3. Does the ASUS PRIME Z790-P D4 motherboard support PCIe 5.0?
Yes, the ASUS PRIME Z790-P D4 ATX motherboard supports PCIe 5.0, which offers double the bandwidth compared to PCIe 4.0. This enables compatibility with next-gen GPUs and ultra-fast storage devices for superior gaming and workstation performance.
4. Does the ASUS PRIME Z790-P D4 motherboard come with Wi-Fi support?
No, the ASUS PRIME Z790-P D4 motherboard does not include built-in Wi-Fi. However, it offers extensive Ethernet connectivity options and allows users to add a Wi-Fi card through its PCIe slots for users who need wireless internet access.
5. How many M.2 slots are available on the ASUS PRIME Z790-P D4 motherboard?
The ASUS PRIME Z790-P D4 motherboard includes two M.2 slots, which support high-speed NVMe SSDs for faster boot times, data transfer, and game loading. It also features several SATA ports for additional storage options, such as traditional hard drives and SSDs.
6. Can I overclock my CPU with the ASUS PRIME Z790-P D4 motherboard?
Yes, the ASUS PRIME Z790-P D4 supports CPU overclocking, making it a great choice for users who want to push their Intel 12th/13th gen processors beyond the standard clock speeds. AI Overclocking features can help users safely and efficiently increase their CPU's performance.
Use Cases and Benefits
For Gamers: The ASUS PRIME Z790-P D4 motherboard is perfect for gamers looking for a high-performance platform. With support for PCIe 5.0, high-speed memory, and next-gen processors, gamers can build a system that handles the latest AAA games, VR experiences, and fast-paced multiplayer games. The motherboard's expandability and cooling features ensure that gamers can upgrade and maintain top-tier performance over time.
For Content Creators: Whether you're video editing, 3D rendering, or working on graphic design, the ASUS PRIME Z790-P D4 is well-equipped for content creation workflows. Its dual M.2 slots, large memory capacity, and high-speed data transfer options make it easy to work with large files and run demanding applications. The AI-enhanced features help fine-tune system performance for optimal creative output.
For Power Users and Professionals: If you're working on data analysis, programming, or engineering tasks, the ASUS PRIME Z790-P D4 is an excellent choice. With its ability to handle heavy multitasking and resource-intensive applications, the motherboard can easily support virtual machines, multiple monitors, and extensive computational tasks. Its expandability and high-performance capabilities ensure that the system is future-proof for professional work.
For Home Office Use: The ASUS PRIME Z790-P D4 motherboard offers great support for home office setups. Users can build a reliable, powerful system for tasks like word processing, video conferencing, and emailing. With support for large memory capacities and quick storage access, this motherboard can handle everything from light office work to more intensive tasks.
Competitive Advantages
The ASUS PRIME Z790-P D4 ATX motherboard stands out in the mid-range motherboard market thanks to its PCIe 5.0 support, AI-enhanced features, and DDR4 memory compatibility. Unlike other motherboards in this price range that only support DDR5, the ASUS PRIME Z790-P D4 allows users to build a high-performance system with more affordable DDR4 memory, making it an excellent choice for users on a budget who want future-proof performance. Additionally, its expandability with multiple M.2 slots and SATA ports offers great flexibility for users who require fast storage and future hardware upgrades.
The ASUS PRIME Z790-P D4 ATX Motherboard is a powerful and reliable motherboard designed for high-performance computing. This motherboard supports 11th and 12th generation Intel Core processors, providing a seamless and efficient computing experience.
Featuring DDR4 memory support with speeds up to 4800MHz, this motherboard is perfect for gaming, multimedia editing, and other demanding tasks. The ATX form factor allows for easy installation in standard size computer cases, while the durable build quality ensures long-term reliability.
Equipped with multiple PCIe slots, M.2 slots, and USB ports, the ASUS PRIME Z790-P D4 ATX Motherboard offers plenty of room for expansion and connectivity options. The integrated Intel Ethernet controller provides fast and reliable networking capabilities, while the onboard audio chipset delivers immersive sound quality.
Overall, the ASUS PRIME Z790-P D4 ATX Motherboard is a versatile and high-performance motherboard suitable for a wide range of computing needs. Whether you're building a gaming rig or a workstation, this motherboard has the features and capabilities to meet your demands.
