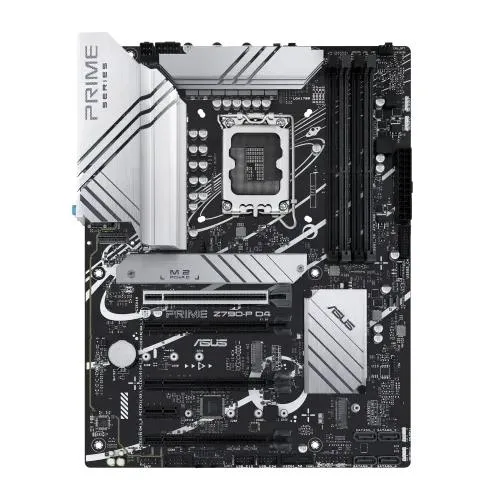

ASUS Prime Z790 Pro D4-CSM ATX Motherboard
- Brand: Asus
- Product Code: ASUS PRIME Z790-P D4-CSM ATX Motherboard
- Availability: Call for Price
৳0
Call for Price
Specification
| BASIC INFORMATION | |
| Form Factor | ATX Form Factor 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm ) |
| Supported CPU | Intel Socket LGA1700 for 14th 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel Z790 Chipset |
| Slots | 4 x DIMM |
| Audio | 3 x audio jacks |
| BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
| Expansion Slots | |
| PCI | Intel 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel Z790 Chipset 3 x PCIe 4.0 x16 slots (support x4 mode) 1 x PCIe 3.0 x1 slot |
| Graphics Specifications | |
| Graphics | 1 x DisplayPort** 1 x HDMI® port*** ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. |
| Memory Specifications | |
| Maximum Memory | 128GB |
| Supported Memory | 5333(OC)/ 5133(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4700(OC)/ 4600(OC)/ 4500(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1 x DisplayPort |
| HDMI | 1 x HDMI |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 2 x Aura RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x 20-5pin System Panel header 1 x Thunderbolt (USB4) Header |
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet |
| Supported Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel Z790 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) |
| USB (s) | Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 9 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Wireless Communication module | Vertical M.2 slot only (Key E, CNVi & PCIe)* *Wi-Fi module is sold separately. |
| Special | |
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving AI Suite 3 -TurboV EVO -PC Cleaner -DIGI+ VRM ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
Description
Introduction
The ASUS PRIME Z790-P D4-CSM ATX Motherboard is designed to unlock the full potential of your Intel 13th Gen Raptor Lake processors with cutting-edge features, outstanding performance, and premium durability. Built on the Intel Z790 chipset, this motherboard offers exceptional overclocking capabilities, advanced connectivity options, and ample room for expansion. The ASUS PRIME Z790-P D4 ensures your system stays at peak performance with support for DDR4 memory, PCIe 5.0, and robust cooling solutions, making it perfect for both gamers and content creators. Whether you're looking to build a high-performance gaming rig or a powerful workstation, this motherboard offers the stability and speed you need for demanding workloads and seamless multitasking.
People Also Ask (PAA) Section
What makes the ASUS PRIME Z790-P D4-CSM unique?
The ASUS PRIME Z790-P D4-CSM motherboard offers a combination of premium features and affordable pricing. It supports Intel 13th Gen Raptor Lake processors and is designed with PCIe 5.0 for the fastest GPU and storage performance. The motherboard supports DDR4 memory for high-speed system responsiveness, offering a cost-effective solution for users who don’t require DDR5. Additionally, the robust cooling solutions and flexible expansion options ensure long-term stability for both gaming and professional use.
Is the ASUS PRIME Z790-P D4-CSM compatible with DDR5 RAM?
No, the ASUS PRIME Z790-P D4-CSM motherboard is designed to support DDR4 memory only. It is compatible with speeds of up to 5333 MHz (OC), allowing for fast data access and excellent system performance. While it doesn't support DDR5 memory, it still offers great performance for users looking for a more cost-effective option without compromising on power or capabilities.
What processors can I use with the ASUS PRIME Z790-P D4-CSM?
The ASUS PRIME Z790-P D4-CSM motherboard is compatible with Intel 12th and 13th Gen processors, featuring the LGA 1700 socket. This includes the Intel Raptor Lake series and Alder Lake series processors, giving you a wide range of options to choose from for gaming, content creation, or productivity. The board supports overclocking, allowing you to extract the maximum performance from your chosen CPU.
Does the ASUS PRIME Z790-P D4-CSM support PCIe 5.0?
Yes, the ASUS PRIME Z790-P D4-CSM motherboard features PCIe 5.0 support, which offers double the bandwidth of PCIe 4.0. This means faster data transfer for next-gen graphics cards, storage drives, and other expansion cards. PCIe 5.0 ensures your system is future-proof, allowing it to handle the latest hardware upgrades and maximizing your performance in high-end gaming and intensive applications.
What cooling options are available on the ASUS PRIME Z790-P D4-CSM?
The ASUS PRIME Z790-P D4-CSM motherboard is equipped with multiple cooling headers, including fan and pump headers, which allow you to manage the cooling of both your CPU and other components effectively. It also includes M.2 heatsinks and VRM heatsinks to ensure optimal heat dissipation, even under heavy loads. These features keep your system cool and stable, providing the reliability you need for overclocking and extended use.
Use Cases and Benefits
For Gamers
The ASUS PRIME Z790-P D4-CSM is an ideal choice for gamers who demand smooth performance and future-proof features. With support for PCIe 5.0, this motherboard can fully leverage next-gen graphics cards for ultra-fast frame rates and stunning visuals. Its overclocking capabilities ensure that you can push your Intel Raptor Lake processor to its maximum potential, enhancing your overall gaming experience. The support for DDR4 memory at high speeds ensures fast load times, while the robust cooling solutions keep your system stable during intense gaming sessions.
For Content Creators
Content creators working with video editing, 3D rendering, or graphic design will appreciate the performance and flexibility offered by the ASUS PRIME Z790-P D4-CSM motherboard. The motherboard supports high-speed storage drives via PCIe 5.0 and offers ample expansion options for additional SSDs or GPUs. With Intel 13th Gen processors and overclocking support, this board ensures smooth handling of complex workloads and multi-threaded applications. The durable build and efficient cooling make it a reliable choice for creators who rely on system stability and performance.
For Professionals and Power Users
The ASUS PRIME Z790-P D4-CSM is perfect for professionals who require a powerful and reliable system for software development, data analysis, or virtualization. The DDR4 memory slots provide excellent speed and capacity for multitasking, while the PCIe 5.0 support allows users to install high-speed storage solutions for fast data retrieval. Whether you're building a workstation or a server-grade system, this motherboard ensures your components are working in sync for optimal productivity.
Competitive Advantages
The ASUS PRIME Z790-P D4-CSM ATX Motherboard offers several advantages over its competitors in the same category:
PCIe 5.0 Support: Unlike many motherboards in the same price range, the ASUS PRIME Z790-P D4-CSM offers PCIe 5.0, providing faster data transfer for GPUs, storage, and expansion cards, making it more future-proof.
Affordable DDR4 Option: While most high-end boards focus on DDR5 support, the Z790-P D4-CSM offers DDR4 memory compatibility, offering excellent performance at a more affordable price point.
Advanced Cooling Solutions: Equipped with VRM heatsinks, M.2 heatsinks, and multiple fan headers, the Z790-P D4-CSM keeps your system cool even under heavy loads, which is essential for stable performance during overclocking or intense applications.
Overclocking Capabilities: The motherboard is designed to support CPU overclocking, enabling users to extract the maximum performance from their Intel 13th Gen processors for gaming and productivity.
Durable Build: ASUS is known for its quality, and the Z790-P D4-CSM is no exception. With a solid power delivery system, premium capacitors, and robust cooling solutions, this motherboard is built to last, even under demanding conditions.
The ASUS PRIME Z790-P D4-CSM ATX Motherboard is a powerful and reliable motherboard designed for high-performance computing. With its ATX form factor, this motherboard is compatible with a wide range of PC builds.
Featuring support for DDR4 memory, this motherboard can accommodate up to 128GB of RAM, providing ample memory for multitasking and demanding applications. The PRIME Z790-P D4-CSM also comes equipped with multiple expansion slots, including PCIe 4.0 and M.2 slots, allowing for seamless upgrades and customization.
This motherboard is built for stability and longevity, with ASUS' renowned reliability and quality craftsmanship. It also features a comprehensive cooling system, ensuring optimal performance under heavy workloads.
Overall, the ASUS PRIME Z790-P D4-CSM ATX Motherboard is a top choice for users looking for a high-end motherboard that can handle demanding tasks and offer long-term reliability.
