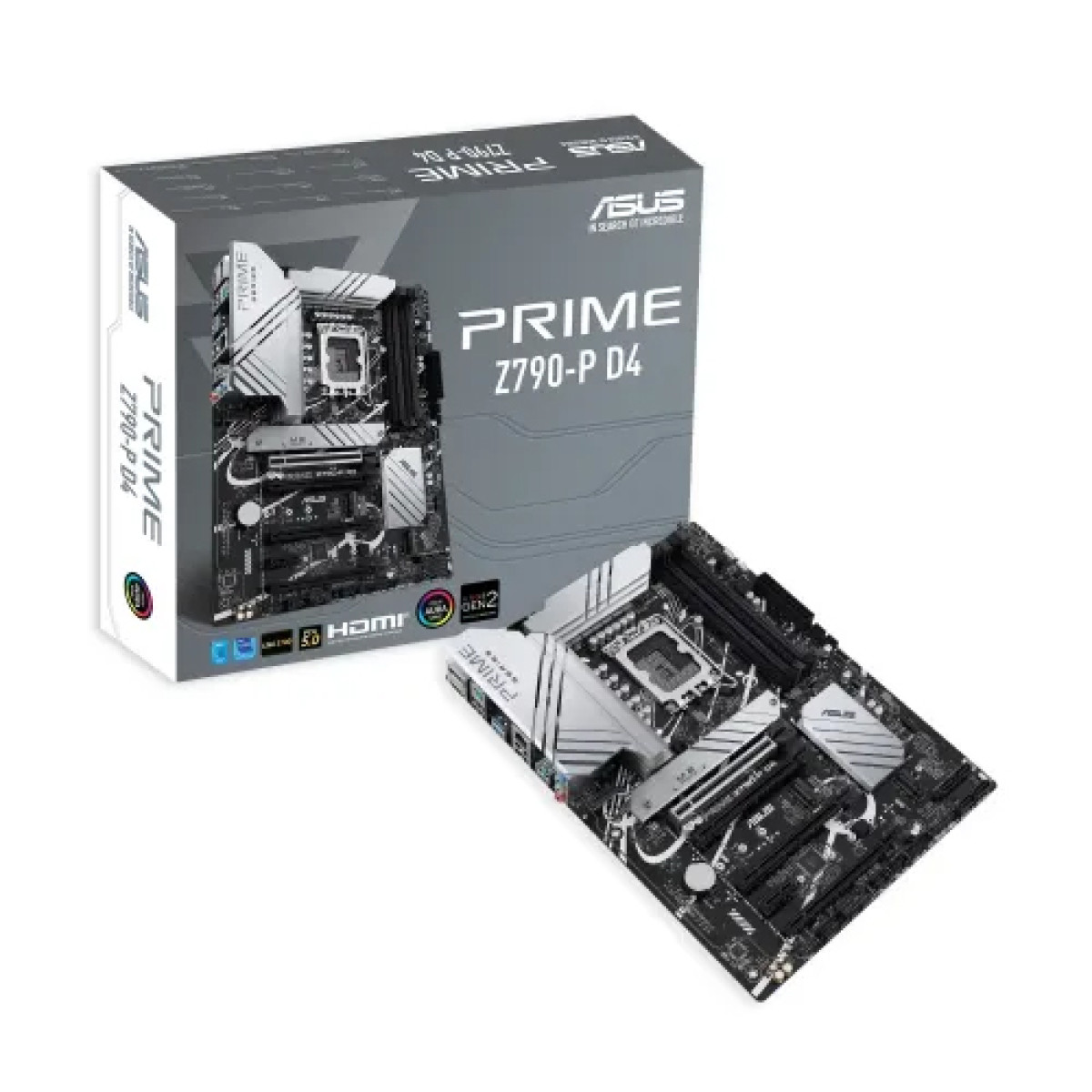

ASUS PRIME Z790-P D4 13th & 12th Gen ATX Motherboard
- Brand:Asus
- Product Code: PRIME Z790-P D4
- Availability:Out of Stock
- Updated:
Specification
| BASIC INFORMATION | |
| Form Factor | ATX Form Factor 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm ) |
|---|---|
| Graphics | 1 x DisplayPort** 1 x HDMI® port*** ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. |
| Supported CPU | Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel Z790 Chipset |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
| Type | DDR4 |
| Expansion Slots | |
| PCI | Intel 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel Z790 Chipset 3 x PCIe 4.0 x16 slots (support x4 mode) 1 x PCIe 3.0 x1 slot |
| Memory Specifications | |
| Maximum Memory | 128GB |
| Slots | 4 x DIMM |
| Supported Memory | 5333(OC)/ 5133(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4700(OC)/ 4600(OC)/ 4500(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II |
| PORTS, CONNECTORS & SLOTS | |
| Display Port (s) | 1 x DisplayPort |
| HDMI | 1 x HDMI |
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet |
| Supported Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel Z790 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) |
| USB (s) | Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 9 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Wireless Communication module | Vertical M.2 slot only (Key E, CNVi & PCIe)* *Wi-Fi module is sold separately. |
| Special | |
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving AI Suite 3 -TurboV EVO -PC Cleaner -DIGI+ VRM ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| WARRANTY | |
| Manufacturing Warranty | 3 years |
Description
Experience Unmatched Performance with the ASUS PRIME Z790-P D4
The ASUS PRIME Z790-P D4 motherboard is designed to provide exceptional performance for both 13th and 12th Gen Intel processors. With its ATX form factor, it offers a perfect balance of advanced features and easy integration into your PC build. Enhanced cooling options ensure optimal thermal management even during intense gaming sessions or heavy workloads. The motherboard supports up to 128GB DDR4 RAM, providing ample memory for multitasking and gaming.
The Z790-P D4 is equipped with multiple M.2 slots for ultra-fast storage solutions, allowing you to enjoy lightning-fast load times and seamless data transfers. With Intel 2.5Gb Ethernet, you can achieve high-speed connectivity, ensuring lag-free online gaming and smooth streaming. This motherboard also features comprehensive connectivity options, including USB 3.2 Gen 2 Type-C and HDMI, making it a versatile choice for modern users.
Finally, the robust build quality and 5-year warranty ensure that your investment is protected, offering peace of mind for your computing needs. Whether you're a gamer, content creator, or professional, the ASUS PRIME Z790-P D4 motherboard is the cornerstone of a powerful and reliable PC.
