| BASIC INFORMATION | |
| Form Factor | ATX Form Factor 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm ) |
| Graphics | 1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1) |
| Supported CPU | Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel Z790 Chipset |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers |
| BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
| Type | DDR4 |
| Interface | |
| HDMI | 1 x HDMI |
| Memory Specifications | |
| Maximum Memory | 128GB |
| Slots | 4 x DIMM |
| PORTS, CONNECTORS & SLOTS | |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x 20-5pin System Panel header 1 x Thunderbolt (USB4) Header |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) |
| USB (s) | Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 9 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Wireless Communication module | Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2 |
| Special | |
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving AI Suite 3 -TurboV EVO -PC Cleaner -DIGI+ VRM ASUS CPU-Z MyASUS Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| WARRANTY | |
| Manufacturing Warranty | 3 years |

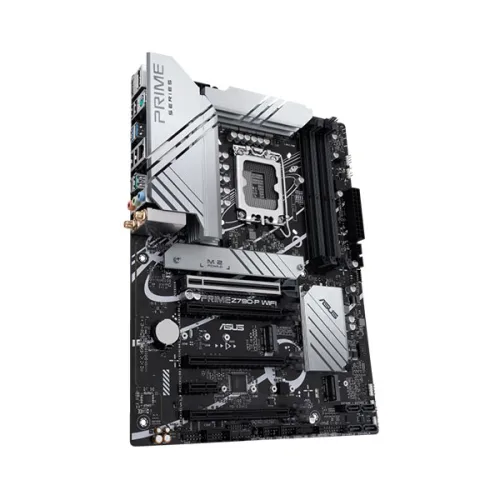

ASUS PRIME Z790-P WIFI D4-CSM 13th Gen & 12th Gen ATX Motherboard
ASUS PRIME Z790-P WIFI D4-CSM Motherboard comes with LGA 1700 socket and Z790 chipset. It supports 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold, and Celeron Processors. The motherboard has 4x DDR4 Dual-Channel RAM slots that allow you to equip up to 128GB of memory for enhanced multitasking capabilities and complex photo and video rendering. ASUS PRIME Z790-P WIFI D4-CSM also supports 3 x M.2 slots and 4 x SATA 6Gb/s ports so you can build a large library of storage drives for your games or creative projects. A single PCIe 5.0 x16 slot supports resource-intensive graphics cards, while three PCIe 4.0 x16 (in x4 mode) and one PCIe 3.0 x1 slots offer a wide range of utility cards. A variety of USB 2.0, 3.2 Gen 1, Gen 2, and Gen 2x2 back panel ports and internal headers serve a wide range of peripherals, from low-powered devices like mouse, keyboards, and controllers to resource-intensive devices like external drives and storage arrays. The ASUS PRIME Z790-P WIFI D4-CSM 13th Gen Motherboard's embedded Bluetooth 5.2 technology can also be used to provide a cable-free experience for wireless devices. Connect to your wireless network using Wi-Fi 6 (802.11ax), or utilize the included 2.5 Gigabit Ethernet port if a cable connection is preferred.
Enhanced Power Solution
The ASUS PRIME Z790-P WIFI D4-CSM delivers consistent power throughout the entire motherboard, preserving electrical volume whether you are performing simple chores or operating at full power during resource-demanding procedures. It is equipped with a 14+1 DrMOS, ProCool sockets, alloy chokes, and robust capacitors.
Comprehensive Cooling
The PRIME Z790-P WIFI D4-CSM motherboard has a large VRM heatsink for capacitors and chokes, as well as integrated M.2 heatsinks and backplates for greater thermal performance and throttling prevention. Fan Xpert 4 software and hybrid fan headers control fans and liquid cooling elements for increased cooling that may be customized.
Robust Connectivity
The ASUS PRIME Z790-P WIFI D4-CSM 13th Gen Motherboard provides reliable connectivity for your peripherals via the backplate and internal headers. USB-A and USB-C 3.2 Gen 1 and Gen 2 ports support data transfer rates of up to 5 and 10 Gb/s, respectively, making them appropriate for webcams, microphones, and external storage devices. The USB-C 3.2 Gen 2x2 connector supports data transfer rates of up to 20 Gb/s for resource-intensive devices such as storage arrays and audio interfaces. With an inbuilt Thunderbolt 4 header, you may increase your connectivity and use high-speed networking that supports rapid transfer speeds and Power Delivery technologies.
Buy ASUS PRIME Z790-P WIFI D4-CSM 13th Gen & 12th Gen ATX Motherboard from the best Motherboard Shop in BD
In Bangladesh, you can get original ASUS PRIME Z790-P WIFI D4-CSM 13th Gen & 12th Gen ATX Motherboard From Unix Network. We have a large collection of latest ASUS Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Unix Network Shop to get yours at lowest price. The ASUS PRIME Z790-P WIFI D4-CSM comes with 3 years warranty.
Upgrade your computer system with the powerful ASUS PRIME Z790-P WIFI D4-CSM motherboard, compatible with both 13th Gen and 12th Gen processors. This ATX motherboard from ASUS boasts excellent connectivity options, including built-in WiFi support for seamless internet access. Perfect for gamers, professionals, and enthusiasts alike, this motherboard from Computer Shop Unix Network in Jashore, Bangladesh offers reliable performance and top-notch quality. Upgrade your system today and experience the power of ASUS technology.
