| BASIC INFORMATION | |
| Form Factor | mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
| Supported CPU | Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel B460 Chipset |
| Slots | 4 x DIMM slots |
| Audio | Realtek ALC887 7.1-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-recording, Front Panel Jack-retasking, up to 24-Bit/ 192kHz playback |
| BIOS | 128Mb Flash ROM, UEFI AMI BIOS |
| Expansion Slots | |
| M.2 Socket | 1 x M.2 Socket 3, with M key, type 2242/ 2260/ 2280 storage devices support (both SATA & PCIE mode) 1 x M.2 Socket 3, with M Key, type 2242/ 2260/ 2280 storage devices support (x4 PCIE mode) |
| PCI | 16-Lane CPU 1 x PCIe 3.0/2.0 x16 (x16 mode) Intel B460 Chipset 2 x PCIe 3.0/2.0 x1 1 x PCI |
| Graphics Specifications | |
| Graphics | Integrated Graphics Processor 2 x DisplayPort 1.4 1 x D-Sub 1 x HDMI 1.4b |
| Memory Specifications | |
| Maximum Memory | 128GB |
| Supported Memory | 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem |
| Type | DDR4 |
| PORTS, CONNECTORS & SLOTS | |
| D-Sub (s) | 1 x D-Sub |
| Display Port (s) | 2 x DisplayPort 1.4v |
| HDMI | 1 x HDMI 1.4b |
| Internal I/O Ports | 1 x CPU Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x MONO out header (with Amp IC) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only) 1 x LPT header 2 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x System panel(s) 1 x Chassis Intrusion connector(s) 1 x Clear CMOS jumper(s) 1 x LPC Debug header |
| LAN Port (s) | Intel I219V, 1 x Gigabit LAN Controller(s) ASUS LANGuard |
| Supported Storage | Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel B460 Chipset : 1 x M.2 Socket 3, with M key, type 2242/ 2260/ 2280 storage devices support (both SATA & PCIE mode) 1 x M.2 Socket 3, with M Key, type 2242/ 2260/ 2280 storage devices support (x4 PCIE mode) 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel Rapid Storage Technology supports Intel Optane Memory Ready |
| USB (s) | Rear USB Port ( Total 6 ) 4 x USB 3.2 Gen 1 port(s) (4 x Type-A) 2 x USB 2.0 port(s) (2 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s) |
| Special | |
| Special Feature | Bespoke Motherboard Design & Business Focused Features : - Overcurrent Protection: Short circuit prevention, protects your system - ASUS Self Recovering BIOS: Automatically recover BIOS update once crash happen - ASUS Event Log: Record activities of system and provides information in BIOS - ASUS Commercial BIOS kit: Speed up BIOS update solutionby partial BIOS design - Anti-Moisture: Against moisture and corrosion — prolonging the life of your motherboard - 24/7 Reliability: Tested under temperature up to 45°C and humidity up to 80% to ensure handle diverse environment Easy Assembly Design: - Box Headers: USB headers are box style, enabling fast connector installation and preventing pin damage |
| WARRANTY | |
| Manufacturing Warranty | 03 Years Warranty |
ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.
ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.
ASUS Control Center Express
ASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs.
Internationally Certified Business Motherboard
ASUS business motherboards are enterprise proven with leading quality that exceeds industry standards. Certified by multiple international safety and environmental organizations, ASUS business motherboards provide a safe, secure and sustainable solution, making them the ideal choice for your business.
ASUS Trouble Shooting Solution
ASUS Debug header is a 10-1 pin low pin count (LPC) header for connecting to debug cards for faster, more efficient motherboard troubleshooting. When connected to an ASUS Debug Card, administrators can view error and debugging codes on the integrated LCD display, and get better idea of initialization and recovery processes. ASUS business motherboards provide a complete troubleshooting solution, making mass production faster and more cost effective.
What is the price of Asus Pro B460m-c/csm 10th & 11th Gen Micro-atx Motherboard in Bangladesh?

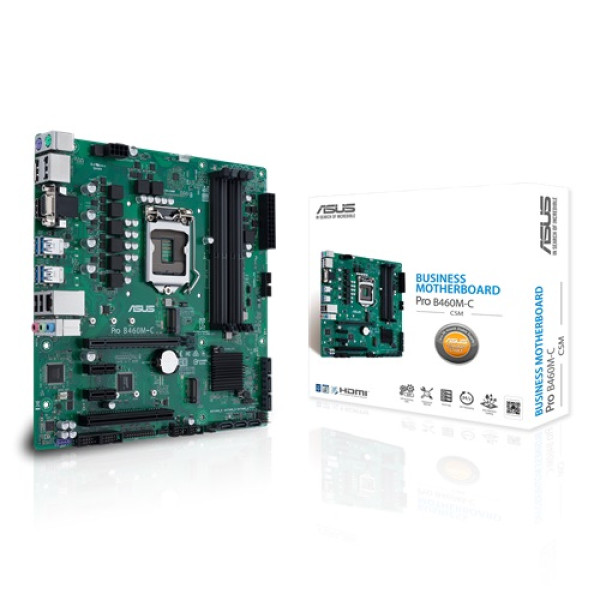

Looking to upgrade your computer's motherboard? Look no further than the ASUS Pro B460M-C/CSM 10th & 11th Gen Micro-ATX Motherboard available at Unix Network in Jashore, Bangladesh. This high-performance motherboard is designed for maximum efficiency and reliability, making it perfect for both professional and personal use. With support for 10th and 11th Gen Intel processors, you can expect lightning-fast speeds and seamless multitasking capabilities. Trust in ASUS's reputation for quality and innovation, and upgrade your system today with the ASUS Pro B460M-C/CSM Motherboard at Unix Network.
