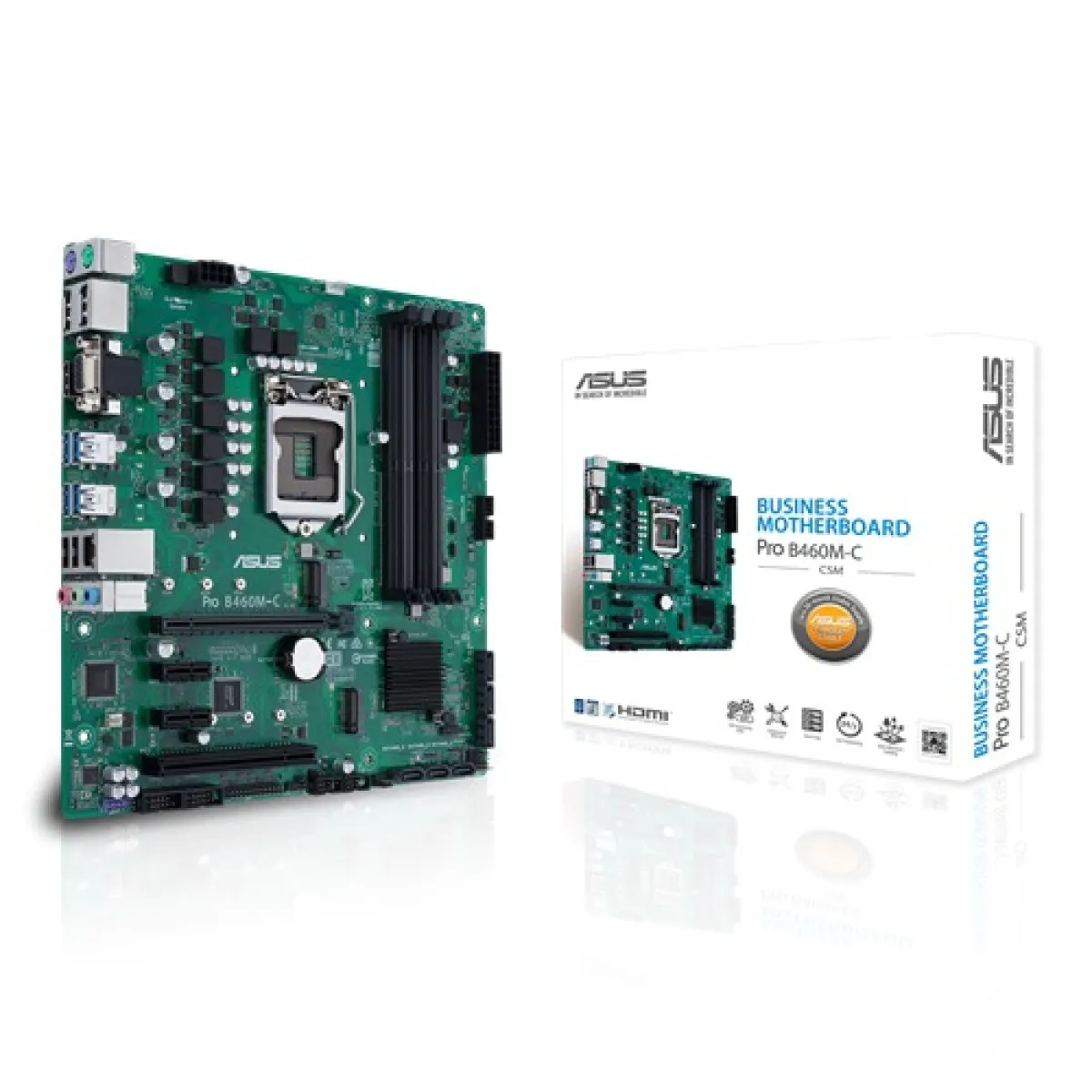

ASUS Pro B460M-C 10th & 11th Gen Micro-ATX Motherboard
৳10,600
Key highlights
- Form Factor: mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
- Supported CPU: Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
- Memory: 128GB
- Slots: 4 x DIMM slots
- Audio: Realtek ALC887 7.1-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-recording, Front Panel Jack-retasking, up to 24-Bit/ 192kHz playback
Description
Reliable Micro-ATX Motherboard for Your PC Build
Elevate Your PC Build with the ASUS Pro B460M-C
The ASUS Pro B460M-C Micro-ATX Motherboard is designed for users looking to build a powerful and efficient system with Intel's 10th and 11th generation processors. This motherboard features a robust Intel B460 chipset, ensuring excellent performance and stability for both professional and personal use.
Key Benefits:
- Enhanced Performance: With support for up to 128GB of DDR4 RAM, the Pro B460M-C allows for high-speed multitasking and improved overall system performance.
- Comprehensive Connectivity: Equipped with multiple USB ports, HDMI, and DisplayPort outputs, this motherboard provides versatile connectivity options for various peripherals and displays.
- Durable Build Quality: ASUS is renowned for its quality, and this motherboard features high-quality capacitors and a reinforced design for long-lasting reliability.
- User-Friendly Features: The intuitive BIOS interface and ASUS AI Suite software make system tuning and monitoring a breeze, even for beginners.
For Bangladeshi customers, this motherboard is an excellent choice for gamers, content creators, and professionals alike, offering great value and performance for your money.
Enhance Performance with ASUS Pro B460M-C Features
Specification
| BASIC INFORMATION | |
|---|---|
| Form Factor | mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
| Supported CPU | Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Memory | 128GB |
| Slots | 4 x DIMM slots |
| Audio | Realtek ALC887 7.1-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-recording, Front Panel Jack-retasking, up to 24-Bit/ 192kHz playback |
| BIOS | 128Mb Flash ROM, UEFI AMI BIOS |
| Expansion Slots | |
| M.2 Socket | 1 x M.2 Socket 3, with M key, type 2242/ 2260/ 2280 storage devices support (both SATA & PCIE mode) 1 x M.2 Socket 3, with M Key, type 2242/ 2260/ 2280 storage devices support (x4 PCIE mode) |
| PCI | 16-Lane CPU 1 x PCIe 3.0/2.0 x16 (x16 mode) Intel B460 Chipset 2 x PCIe 3.0/2.0 x1 1 x PCI |
| Graphics Specifications | |
| Graphics | Integrated Graphics Processor 2 x DisplayPort 1.4 1 x D-Sub 1 x HDMI 1.4b |
| Memory Specifications | |
| Supported Memory | 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem |
| PORTS, CONNECTORS & SLOTS | |
| D-Sub (s) | 1 x D-Sub |
| Display Port (s) | 2 x DisplayPort 1.4 |
| HDMI | 1 x HDMI 1.4b |
| LAN Port (s) | Intel I219V, 1 x Gigabit LAN Controller(s) ASUS LANGuard |
| Supported Storage | Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel B460 Chipset : 1 x M.2 Socket 3, with M key, type 2242/ 2260/ 2280 storage devices support (both SATA & PCIE mode) 1 x M.2 Socket 3, with M Key, type 2242/ 2260/ 2280 storage devices support (x4 PCIE mode) 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel Rapid Storage Technology supports Intel Optane Memory Ready |
| USB (s) | Rear USB Port ( Total 6 ) 4 x USB 3.2 Gen 1 port(s) (4 x Type-A) 2 x USB 2.0 port(s) (2 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s) |
| Internal I/O Connectors | 1 x CPU Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x MONO out header (with Amp IC) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only) 1 x LPT header 2 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x System panel(s) 1 x Chassis Intrusion connector(s) 1 x Clear CMOS jumper(s) 1 x LPC Debug header |
| Special | |
| Special Feature | Bespoke Motherboard Design & Business Focused Features : - Overcurrent Protection: Short circuit prevention, protects your system - ASUS Self Recovering BIOS: Automatically recover BIOS update once crash happen - ASUS Event Log: Record activities of system and provides information in BIOS - ASUS Commercial BIOS kit: Speed up BIOS update solutionby partial BIOS design - Anti-Moisture: Against moisture and corrosion — prolonging the life of your motherboard - 24/7 Reliability: Tested under temperature up to 45°C and humidity up to 80% to ensure handle diverse environment Easy Assembly Design: - Box Headers: USB headers are box style, enabling fast connector installation and preventing pin damage |
| WARRANTY | |
| Manufacturing Warranty | 03 Years Warranty |
